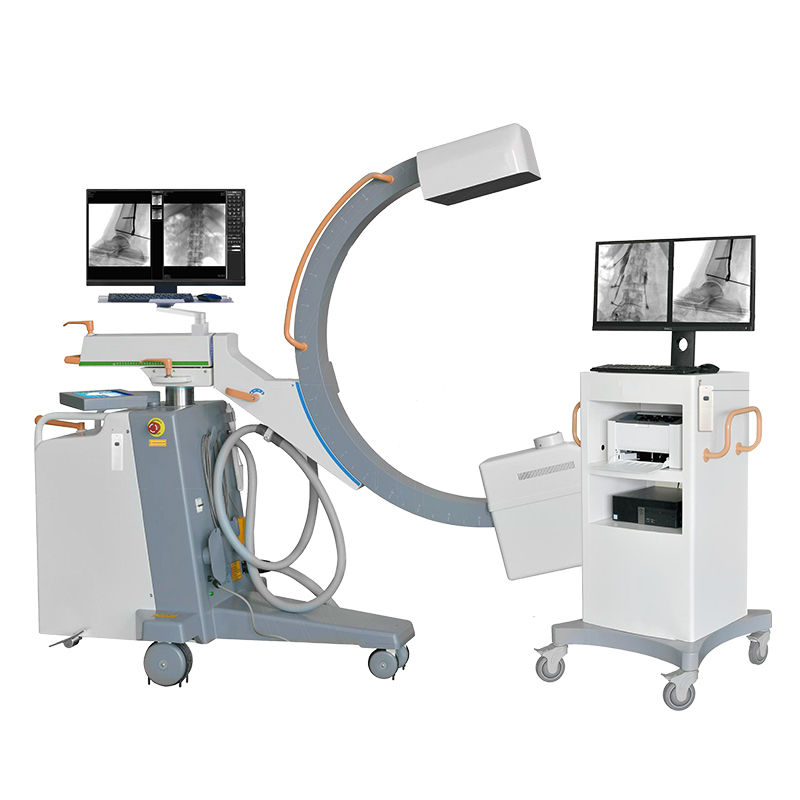

SHOC-5KW Mobile C-Arm X-ray Machine (Flat-Panel Detector)

Introduction

The SHOC-5KW Mobile C-arm is a powerful, high-performance imaging solution designed for a wide range of applications including orthopedics, neurosurgery, pain management, and emergency procedures.

Equipped with a high-frequency generator, the system provides crystal-clear imaging at low radiation doses, ensuring precision during surgical and interventional procedures. Its 21×21 cm amorphous silicon (a-Si) flat-panel detector with direct deposition CsI delivers high-resolution images at up to 30 frames per second, making it ideal for both vascular and surgical applications.

Compact, flexible, and easy to operate, the SHOC-5KW is built to maximize surgical efficiency and support long-duration procedures without compromising image quality.

Key Features

• Compact and user-friendly design: Easy to maneuver in diverse surgical environments.

• High-frequency generator: Produces strong, penetrating X-rays for superior image clarity.

• Large 21×21 cm flat-panel detector: Provides a bigger image area than traditional image intensifiers.

• High-resolution amorphous silicon detector: Ensures accurate visualization for precise clinical operations.

• Oil-cooled, heat-resistant tube: Supports extended imaging during long surgeries.

• 34’’ LG HD monitor: Displays real-time and reference images simultaneously for quicker diagnosis.

• Microcomputer control system: Features self-diagnostics and automatic protection.

• Modular design: Offers error codes and reset functionality for easy maintenance.

• Dual CPU control: Enhances stability and operational safety.

• Large C-arm opening: Maximizes space for surgical procedures.

• Multiple control options: Hand switch, foot switch, and remote control allow exposure both inside and outside the operating theater.

• PACS and DICOM 3.0 connectivity: Easy image transfer, storage, and printing.

Technical Specifications

Ambient Conditions

• Temperature: 10℃ – 40℃

• Relative Humidity: 30% – 75%

• Atmospheric Pressure: 70 – 106 kPa

X-ray Generator

Model	SHOC-5KW
Output Power	5KW
Fluoroscopy Current	0.3–6.3 mA
Radiography Current	0.1–100 mA
Pulsed mA	32 mA
Voltage	40–125 kV
mAs Range	0.2–100 mAs
ms Range	10–1600 ms

X-ray Tube

• Anode Type: Stationary

• Focal Spot: 0.3 mm / 0.6 mm

• Rotating Anode Speed: N/A (Stationary)

• Anode Heat Capacity: 300 KHU

• Housing Heat Capacity: 1200 KHU

Flat-Panel Detector

• Size: 21×21 cm

• Detector Technology: Amorphous Silicon

• Scintillator: CsI

• Resolution: 2.5 lp/mm

• Frame Rate: Up to 30 fps

• Active Pixels: 1024×1024

• A/D Conversion: 16-bit

• Pixel Pitch: 205 μm

• Image Display Speed: 0.8 s after exposure

Grid

• Brand: JPI

• Ratio: 10:1

• Density: 60 l/cm

• SID: 100 cm

C-arm Unit

• SID: 1000 mm

• Tube-to-Detector Free Space: 820 mm

• Arc Depth: 640 mm

• Vertical Movement: 0–400 mm (Electric)

• Horizontal Movement: 0–200 mm (Manual)

• Planning Movement: ±15° (Manual)

• Orbital Movement: -30° to +90° (Manual)

• C-Arc Rotation: ±180°

Workstation & Software

• Monitor: 34’’ LG HD

• CPU: 2.7 GHz

• Storage: 500 GB

• Software Features:

  • Continuous 360° image rotation

  • Horizontal/vertical image flipping

  • Adjustable gamma values per image

  • Last-frame freeze

  • Save in JPG, DCM, RAW, etc.

  • DICOM 3.0 support for data communication and storage

Why Choose SHOC-5KW?

The SHOC-5KW Mobile C-arm delivers a perfect balance of performance, reliability, and ease of use. Its high-resolution flat-panel detector, compact design, and advanced control system make it ideal for precise imaging in complex surgical environments, improving workflow efficiency and ensuring patient safety.
