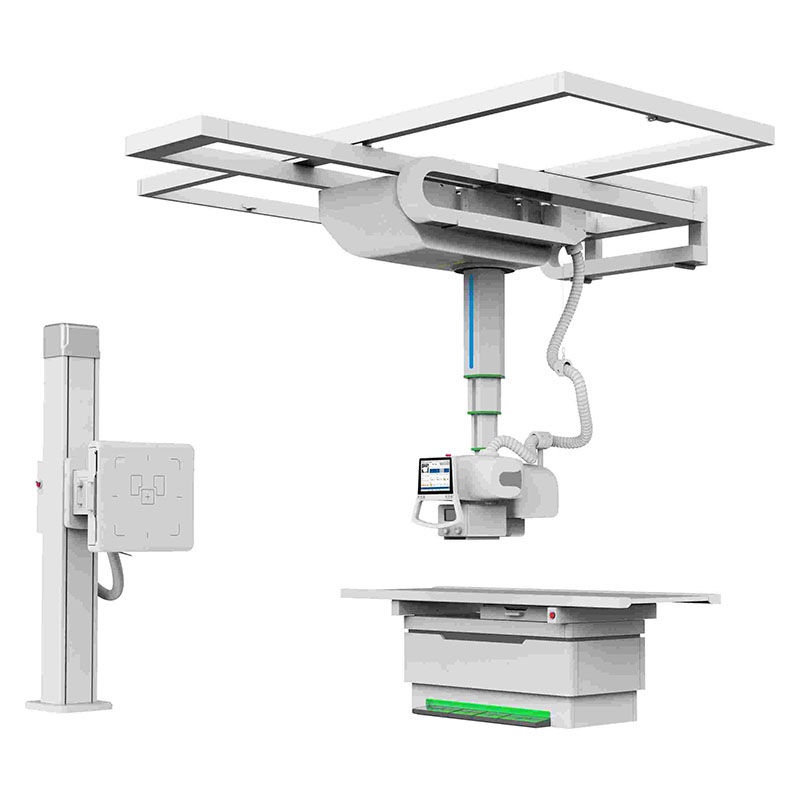

Shoimage SHO-CMX01 Ceiling Mounted DR X-ray Machine
The Shoimage SHO-CMX01 Ceiling Mounted DR X-ray Machine offers unparalleled precision and efficiency for various medical uses. Designed to seamlessly integrate into modern healthcare environments, this top-of-the-line device ensures high-quality imaging that aids accurate diagnosis and patient care. Winselluma is an authorized distributor, guaranteeing genuine products and exceptional service tailored to your facility's needs. Trust in our expertise to provide advanced medical imaging solutions that elevate your practice's standards.
Product Info
SHO-CMX01 Ceiling-mounted Digital Radiography System
Premium High-Power Digital Radiography with Full Ceiling Suspension
The SHO-CMX01 is a high-end, ceiling-mounted digital radiography system engineered for hospitals requiring the highest levels of imaging performance, flexibility, and workflow efficiency. Equipped with an 80kW / 1000mA high-voltage generator, Siemens X-ray tube, Vieworks wireless CsI flat panel detector, and fully motorized movement system, the SHO-CMX01 delivers exceptional image quality with fast, precise positioning for all routine and advanced radiographic examinations.
Its ceiling-mounted structure provides a clutter-free operating environment and extremely wide movement range, enabling effortless imaging in standing, sitting, and supine positions. It is perfectly suited for chest radiography rooms, general radiography suites, imaging centers, and high-volume hospital radiology departments.
Key Features
High-End Ceiling-Mounted Design
-
Wide, smooth movement range for maximum positioning flexibility.
-
Ideal for busy radiology departments requiring fast patient throughput.
-
Clean, unobstructed operating area compared with floor-mounted systems.
Premium Imaging Components
-
80 kW, 1000 mA high-frequency generator provides excellent X-ray quality.
-
Siemens rotating-anode tube ensures durability, heat capacity, and consistent image performance.
-
Vieworks wireless flat panel detector delivers superior low-dose imaging with high resolution.
Fully Motorized Operation
-
Electric collimator with LED illumination.
-
Electric vertical, longitudinal, and transverse movements on the patient table.
-
Intelligent APR and touch-based tube control for ease of use.
Advanced Digital Workflow
-
Integrated 10-inch touchscreen for tube-side parameter settings.
-
23.8-inch Dell workstation monitor for superior diagnostic display.
-
Full DICOM 3.0 connectivity for seamless PACS integration.
Technical Specifications
X-ray Generator (SHO-CMX01 Series)
-
Output Power: 80 kW
-
Tube Current: 10–1000 mA
-
Tube Voltage: 40–150 kV
-
Exposure Time: 0.001–10 s
-
Focus Size: 0.6 / 1.2 mm
Flat Panel Detector (Wireless – Vieworks CsI)
-
Type: Amorphous Silicon
-
Scintillator: Cesium Iodide
-
Active Area: 17″ × 17″ (43 × 43 cm)
-
Pixel Matrix: 3072 × 3072
-
Pixel Pitch: 140 μm
-
A/D Conversion: 16 bits
-
DQE: ≥70%
-
Spatial Resolution: 37 Lp/cm
-
Acquisition Time: ≤2 s
Electric Collimator
-
Operating Mode: Fully electric
-
Max Field of View: 45 cm × 45 cm
-
Illumination: LED
Bucky Stand
-
Vertical Travel: 1.4 m
Electric Radiography Table
-
Transverse Travel: 260 mm
-
Longitudinal Travel: 750 mm
-
Vertical Travel: 210 mm
Workstation
-
Monitor: 23.8″ Dell LCD display
-
CPU: ≥3.7 GHz
-
Memory: ≥4 GB
-
Storage: ≥1 TB
-
DICOM 3.0: Full compatibility with PACS
-
Functions:
-
Image acquisition & processing
-
Patient data management
-
Measurement & annotation tools
-
Import/export functions
-
Why Choose the SHO-CMX01?
-
Premium imaging components for top-tier diagnostic quality
-
Ceiling-mounted system provides maximum movement freedom
-
Fast, motorized workflow ideal for high-volume radiography rooms
-
Wireless FPD for maximum positioning flexibility
-
