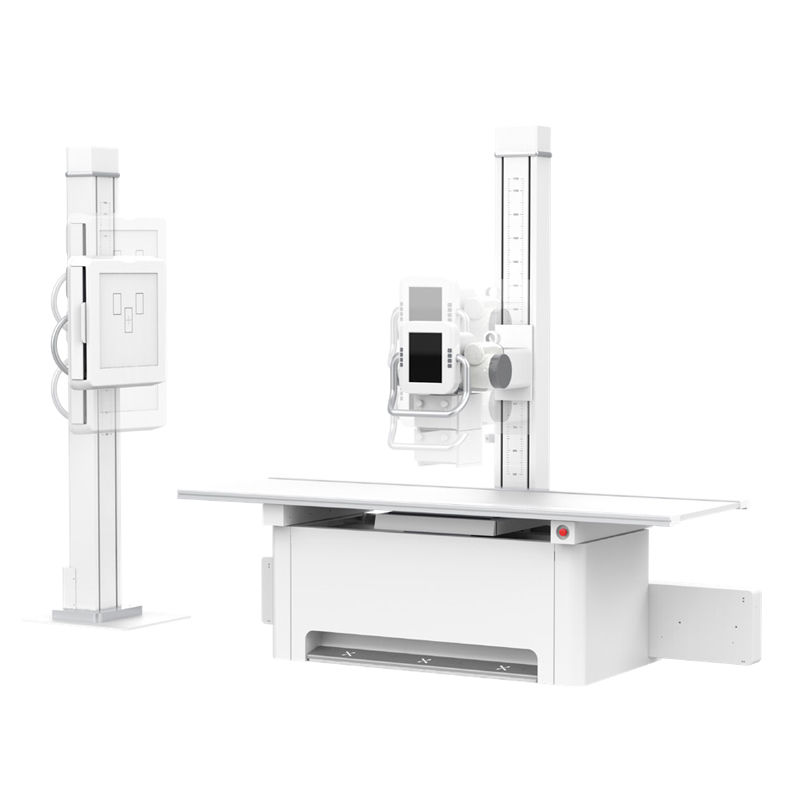

SHO-DDX01 Double Columns Floor-mounted Digital Radiography System
High-End Digital Radiography with Precision, Flexibility, and Efficiency
The SHO-DDX01 represents the next generation of floor-mounted digital X-ray systems, designed for hospitals and advanced imaging centers. With double column design, electric tube-detector correspondence, and optional AEC/DAP functions, this system provides maximum flexibility, precision, and efficiency for routine and specialized diagnostic imaging. Ideal for head, chest, abdomen, lumbar, and limb imaging, the system supports PA, LAT, and clinostatism positions with ease.
Key Features
Advanced X-ray Generation:
High-frequency generator with excellent heat dissipation and high output (40–65 kW) for stable, high-quality X-rays.
Voltage range 40–150 kV, current 10–800 mA, and exposure times 0.002–6.3 s.
Equipped with intelligent protection system with fault alarms and automatic self-check.
Rotating Anode X-ray Tube:
Focal spot options: 0.6/1.2 mm or 1.0/2.0 mm.
Anode heat storage capacity: 150–400 kHU, heat dissipation: 475–1000 W.
±180° rotation angle for flexible imaging positions.
High-Resolution Flat Panel Detector:
17×17 inch wired FPD, 3072×3072 pixels, 16-bit A/D conversion, DQE ≥70%.
Cesium Iodide (CsI) scintillator for low-dose, high-quality images.
Spatial resolution: 36 Lp/cm, acquisition time ≤2 s.
Manual Collimator:
Integrated Grid:
Ratio 10:1, density 40 LP/cm, size 18×18 in, focal distances 100 cm (table), 180 cm (Bucky stand).
Radiography Table:
Tabletop 2300×800×60 mm, load capacity 300 kg.
Floating ranges: front-back 740 mm ±3%, left-right 210 mm ±3%, FPD tray 650 mm ±3%.
Double Column Stand Movement:
Tube stand: vertical 1500 mm ±3%, horizontal 1900 mm ±3%, rotation ±180°.
Bucky stand: detector vertical range up to 1500 mm ±3%, lowest detector center ≤46 cm.
Automatic tracking: electric correspondence between tube and detector.
Workstation and Console:
23” Dell LCD monitor, CPU ≥2.8 GHz, RAM ≥4 GB, HDD ≥1 TB.
DICOM 3.0 compatible for seamless PACS integration.
Console: 10.4” touch screen for exposure control, wired controller for electric movement.
Full post-processing, measurement, and patient data management.
Why Choose SHO-DDX01?
High-end clinical imaging: Suitable for hospitals at all levels, supporting diverse patient needs.
Flexible positioning: Double column and floating table design allow versatile patient imaging.
High efficiency & safety: Automatic tube-detector tracking, intelligent protection, and rapid image acquisition.
Exceptional image quality: Large FPD with low-dose technology and advanced digital processing.
Durable and reliable: Rotating anode tube with high heat capacity for extended clinical use.
The SHO-DDX01 – Premium floor-mounted digital radiography for precision, flexibility, and reliable diagnostics.
