Shoimage SHO-V32-B Veterinary Digital X-ray Photography System
The Shoimage SHO-V32-B Veterinary Digital X-ray Photography System is designed for precise medical uses, offering exceptional image quality for accurate diagnosis. Trusted by veterinary professionals, this cutting-edge system ensures reliable performance and user-friendly operation. As an authorized distributor, winselluma provides unparalleled service and support, ensuring that you receive the best in veterinary imaging technology. Enhance your practice's diagnostic capabilities with this state-of-the-art solution from winselluma, where we prioritize quality and excellence.
Product Info
SHO-V32-B Veterinary Digital X-Ray System
A high-quality, low-dose digital radiography system designed specifically for veterinary clinics and hospitals, suitable for imaging all parts of small animals.
Key Features
-
Veterinary-Specific Design
Optimized for pets, providing high-resolution imaging with low radiation dose. -
User Interface
10-inch touch screen for easy operation and exposure control. -
X-Ray Tube
-
Type: Rotating anode
-
Focal spot: 1.0 mm / 2.0 mm
-
Revolving speed: 2800 rpm
-
Inherent filtration: 10 mm Al
Ensures high image quality and long tube life.
-
-

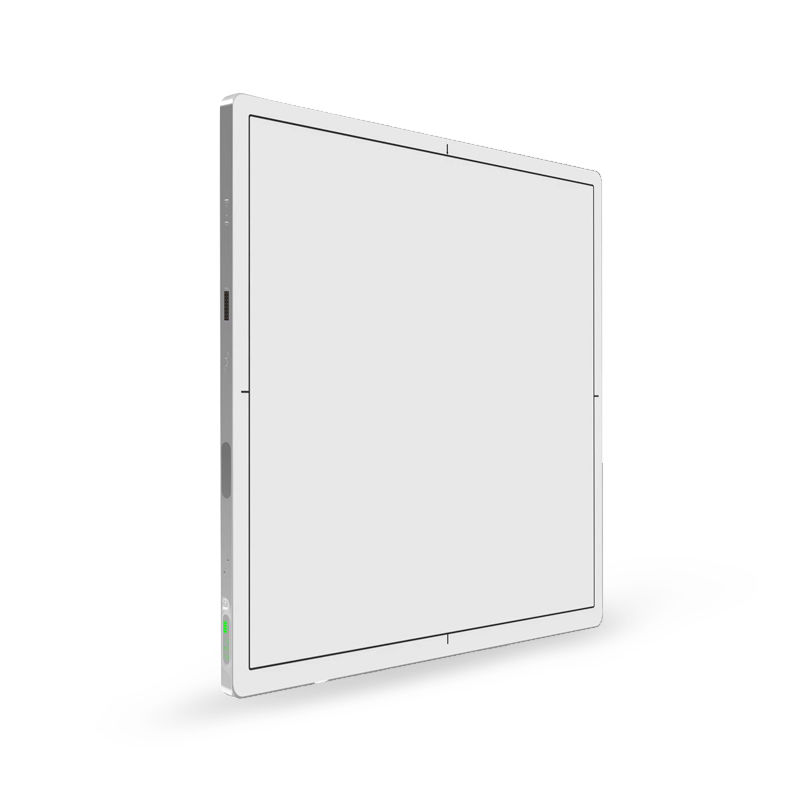

Digital Detector (FPD)
-
Type: Amorphous Silicon
-
Active area: 17×17 inch
-
Resolution: 2912×2912 pixels
-
Pixel pitch: 139 μm
-
A/D conversion: 16 bits
Allows precise digital imaging of small and medium-sized animals.
-
-
Table
Floating table with a load-bearing capacity of 150 kg, suitable for pets of various sizes. -
Generator
-
Output power: 32 kW
-
Frequency: 25 kHz
-
Voltage: 40–125 kV
-
Current: 10–400 mA
-
Technical Specifications
Feature Specification Screen Display 10-inch touch screen Power Supply 40 KVA X-ray Generator Output 32 kW Frequency 25 kHz Voltage Range 40–125 kV Current Range 10–400 mA Anode Type Rotating anode Focal Spot Size 1.0 mm / 2.0 mm Anode Revolving Speed 2800 rpm Inherent Filtration 10 mm Al FPD Type Amorphous Silicon Active Area 17×17 inch Active Pixels 2912×2912 Pixel Pitch 139 μm A/D Conversion 16 bits Floating Table Load 150 kg This system is compact, reliable, and optimized for veterinary imaging, offering excellent image quality while minimizing radiation exposure to patients.
-
