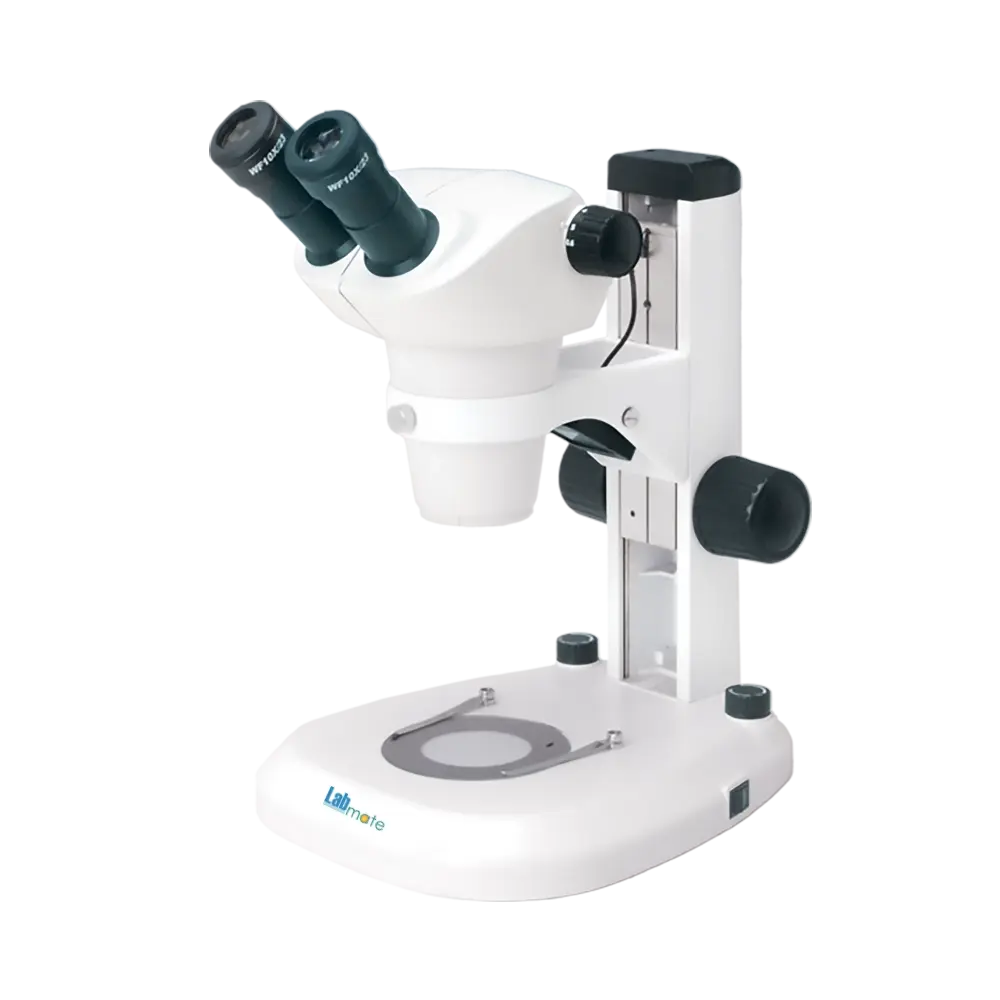

Labmate Stereo Microscope LMSM-609
Labmate Stereo Microscope LMSM-609 features a 45° inclined binocular viewing head with an interpupillary distance of 55–57 mm for comfortable observation. It is equipped with a 0.6×–5× zoom objective with a 1:8.3 zoom ratio and an extra wide-field EWF10×/23 eyepiece with independent focus adjustment. The 100 mm diameter glass stage integrates LED incident and transmitted illumination within a slim base, providing high-resolution, three-dimensional imaging with bright, uniform light.
Product Info
Key Features
-
Binocular head inclined at 45° with interpupillary adjustment 55–57 mm
-
Zoom objective 0.6×–5× with 1:8.3 zoom ratio
-
Extra wide-field EWF10×/23 eyepiece with independent focus
-
100 mm glass stage compatible with incident and transmitted LED illumination
-
Rack and pinion focusing mechanism for precise specimen adjustment
-
Bright, long-life LED illumination with adjustable intensity
-
Ergonomic design with ample working space
Technical Highlights
Specification Details Viewing Head Binocular, 45° inclined Interpupillary Distance 55–57 mm Objective Zoom 0.6×–5× Eyepiece EWF10×/23 Zoom Ratio 1:8.3 Working Distance 115 mm Focusing Range 105 mm Stage Insert Glass plate 100 mm diameter, Opal & black acrylic plate 100 mm Illumination Incident/transmitted LED, 100–240 V Video Adapter 0.55× C-mount Applications
Labmate LMSM-609 is ideal for industrial production, quality control, materials research, forensics, biotechnology, genetics, and biomedical research where ergonomic operation and high-resolution stereo imaging are required.-
