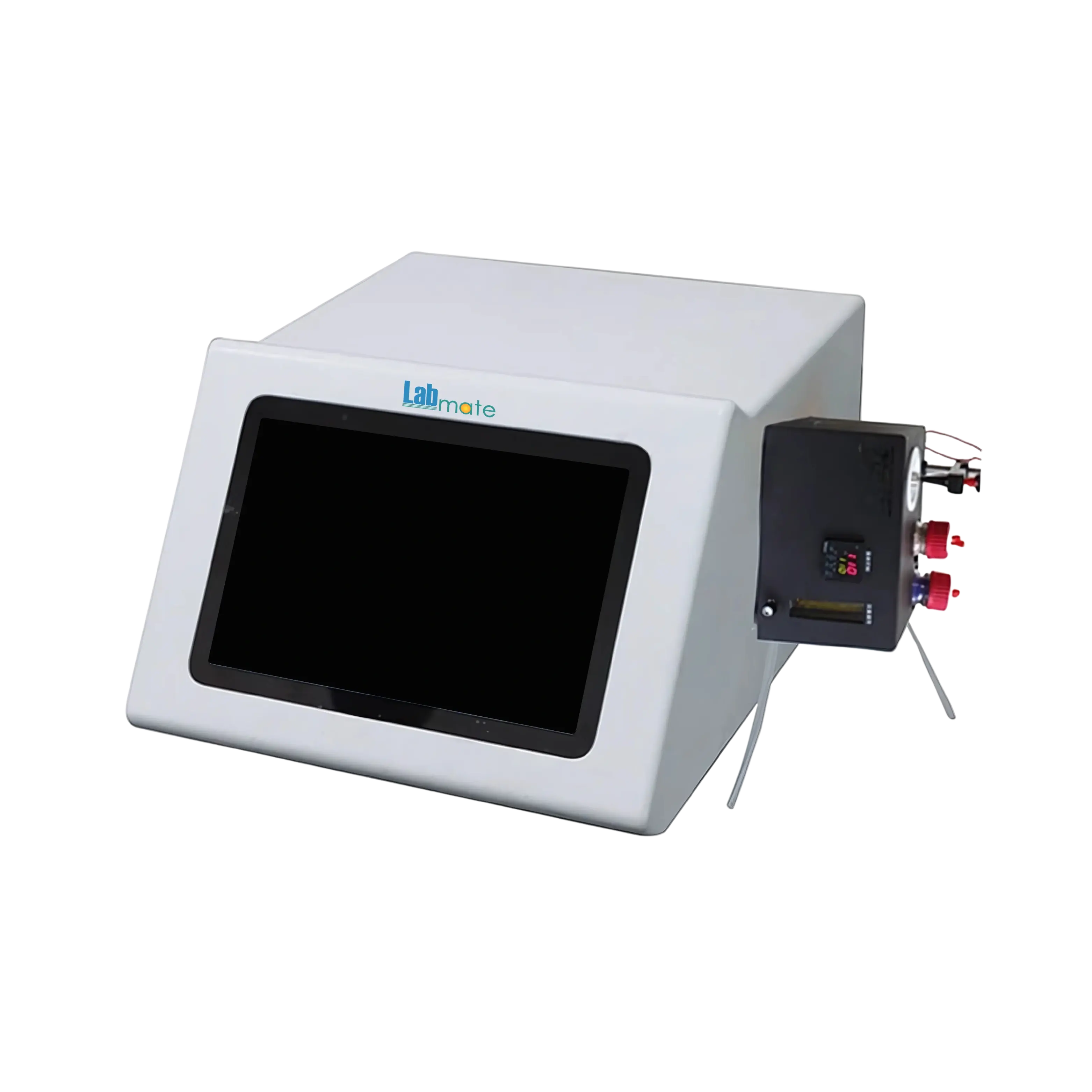

Labmate Portable Density Meter LMPDM-B102

Labmate Portable Density Meter LMPDM-B102

Product Overview

The Labmate Portable Density Meter LMPDM-B102 is a high-precision portable instrument designed for fast and accurate liquid density measurement, alcohol concentration, and custom formula calculations. With ultra-fine resolution, advanced temperature control, and comprehensive data handling, it is ideal for laboratories, quality control, process monitoring, and research applications in pharmaceuticals, chemicals, beverages, and food processing.

Key Features

• Multi-Mode Testing: Density, alcohol concentration, and custom formula measurements

• Measuring Range: 0 – 3 g/cm³

• Ultra-High Resolution: ±0.00001 g/cm³

• Repeatability: ±0.00005 g/cm³

• Accuracy: ±0.00008 g/cm³

• Injection Flexibility: Automatic operation with manual sample introduction support

• Temperature Control: Peltier system, 5 °C – 85 °C with ±0.02 °C stability

• Large Touchscreen Display: 10.4‑inch colour interface for easy operation

• Extensive Data Storage: 64 GB onboard memory

• Flexible Output: USB, RS‑232, RJ45, SD card, and U-disk connectivity

• Security & Management: Audit trail, electronic signatures, and custom method library

• Wireless & Print Options: Wi-Fi printing and PDF/Excel export

Applications

• Pharmaceuticals: Quality control and formulation verification

• Chemicals: Process monitoring and solvent concentration checks

• Beverages: Alcohol content and liquid quality testing

• Food Processing: Quality assurance

• Research Laboratories: Advanced liquid property analysis

Technical Specifications

Specification	Details
Test Modes	Density, alcohol, custom formula
Measuring Range	0 – 3 g/cm³
Resolution	±0.00001 g/cm³
Repeatability	±0.00005 g/cm³
Accuracy	±0.00008 g/cm³
Injection Method	Automatic, compatible with manual
Temperature Control Method	Peltier
Temperature Range	5 – 85 °C
Temperature Stability	±0.02 °C
Display Method	10.4″ colour touchscreen
Data Storage	64 GB
Output Interfaces	USB, RS‑232, RJ45, SD card, U-disk
User Management & Security	Audit trail, electronic signature, custom method library
Export Formats	PDF, Excel
Wireless Printing	Wi-Fi
Power Supply	AC 110–230 V, 50/60 Hz
Dimensions (W × D × H)	425 × 410 × 250 mm
Weight	~8.5 kg

Standard Accessories

• LMPDM-B102 Host Unit – Main instrument

• LMPDM-B102-A1 Power Cable – AC connection

• LMPDM-B102-A2 USB Cable – Data transfer interface

• LMPDM-B102-A3 RS‑232 Cable – Serial data connection

• LMPDM-B102-A4 SD Card – Storage medium

• LMPDM-B102-A5 User Guide – Operating instructions

• LMPDM-B102-A6 Calibration Certificate – Factory calibration reference

Selection Guide

Ultra-Precise Liquid Analysis: For high-resolution, accurate density and concentration measurements

Temperature-Sensitive Workflows: Peltier stabilization ensures consistent results

Data-Driven Environments: Large internal storage and flexible outputs support compliance and reporting

Interactive Operation: Large colour touchscreen simplifies setup and data review

Multi-Industry Versatility: Ideal for pharmaceuticals, chemicals, food & beverage, and research applications
