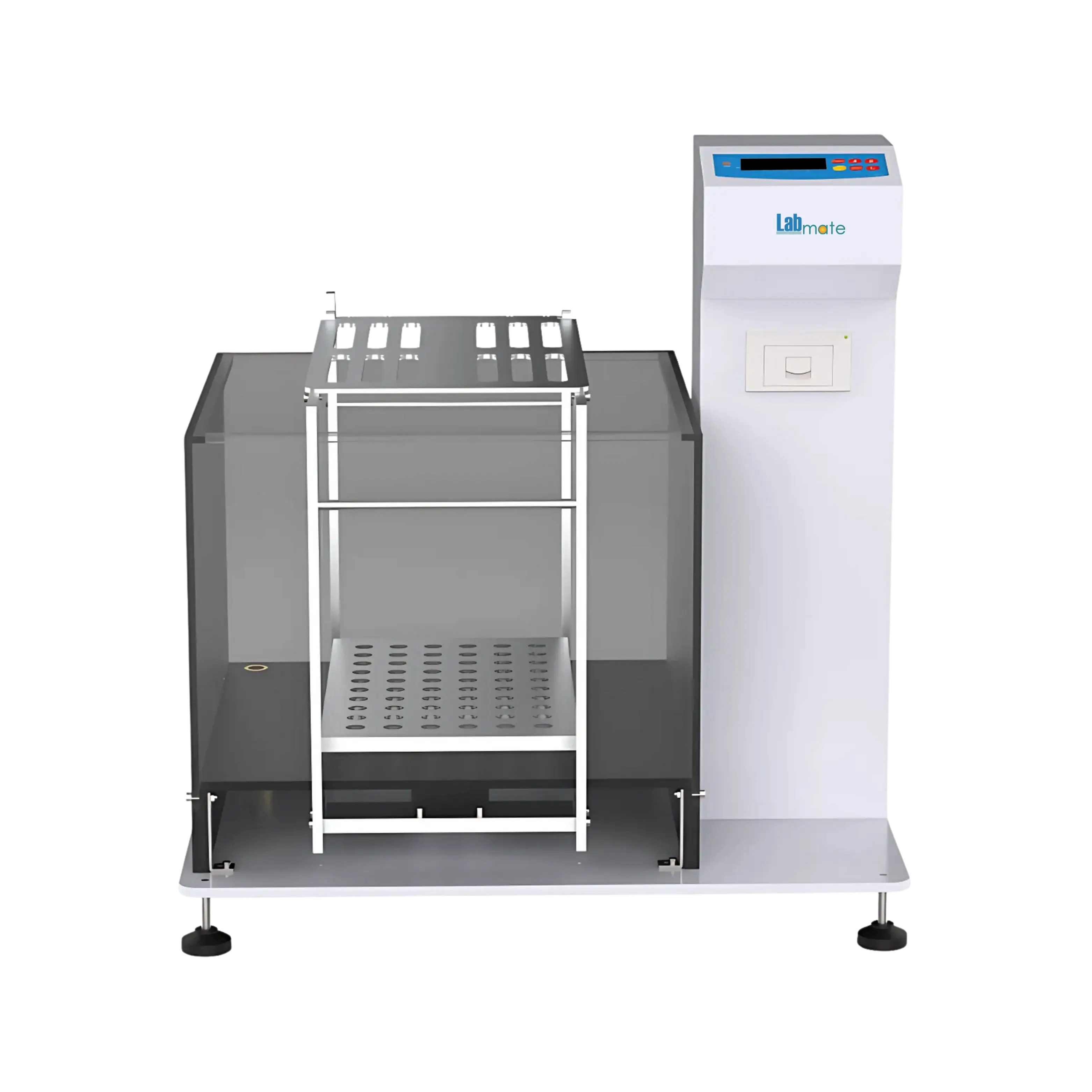

Labmate Floor-Standing Density Meter LMDMF-A102
Product Overview
The Labmate Floor-Standing Density Meter LMDMF-A102 is a high-capacity, industrial-grade system engineered for accurate density measurement of very large and heavy solid samples. Designed for demanding manufacturing, quality control, and materials testing environments, it supports samples up to 30 kg and delivers fast, automatic calculation of density, volume, and percentage content. Its robust floor-standing construction ensures stability, durability, and consistent performance during repeated heavy-duty testing.
Key Features
-
Very High Load Capacity: Supports samples up to 30,000 g (30 kg)
-
Wide Density Measurement Range: 0.001 to 99.999 g/cm³
-
High Density Accuracy: ±0.001 g/cm³ for dependable results
-
Fast Measurement Cycle: Typical test completed in approximately 20 seconds
-
Automatic Multi-Result Output: Simultaneous display of density, volume, and percentage content
-
Large Measuring Chamber: Accommodates oversized and irregular-shaped samples
-
Environmental Compensation: Adjustable water temperature, medium density, and mixing ratio parameters
-
Heavy-Duty Aluminium Alloy Frame: Built for continuous industrial operation
-
Integrated Liquid Handling: Inlet and outlet valves for convenient immersion testing
-
RS-232C Interface: Enables connection to printers or laboratory data systems
Applications
-
Density testing of large industrial and molded components
-
Automotive, aerospace, and heavy manufacturing inspection
-
Metallurgy, ceramics, and composite material analysis
-
Rubber, plastics, and foam product quality control
-
Industrial research, development, and production QA laboratories
Technical Specifications
Specification Details Maximum Measurement Weight 30,000 g Weighing Accuracy 0.2 g Density Range 0.001 – 99.999 g/cm³ Density Accuracy ±0.001 g/cm³ Maximum Sample Size 710 × 490 × 380 mm Measurement Time ~20 s per test Displayed Results Density, volume, percentage Compensation Settings Water temperature, medium density, mixing ratio Frame Material Aluminium alloy Dimensions (H × W × D) 1250 × 1110 × 990 mm Net Weight 164 kg Data Interface RS-232C Standard Accessories
-
Floor-standing host unit
-
Calibration weight
-
Thermometer for temperature compensation
-
Sample handling tweezers
-
Power transformer
Selection Guide
-
Extremely Heavy or Oversized Samples: Ideal when density testing is required for items up to 30 kg
-
Industrial Production Use: Designed for continuous operation in manufacturing QA and inspection environments
-
Multi-Parameter Analysis: Suitable when density, volume, and percentage content are required in a single measurement cycle
-
High Throughput Testing: Fast measurement time supports busy industrial laboratories
-
Data Recording Needs: RS-232C connectivity supports traceable reporting and system integration
-
