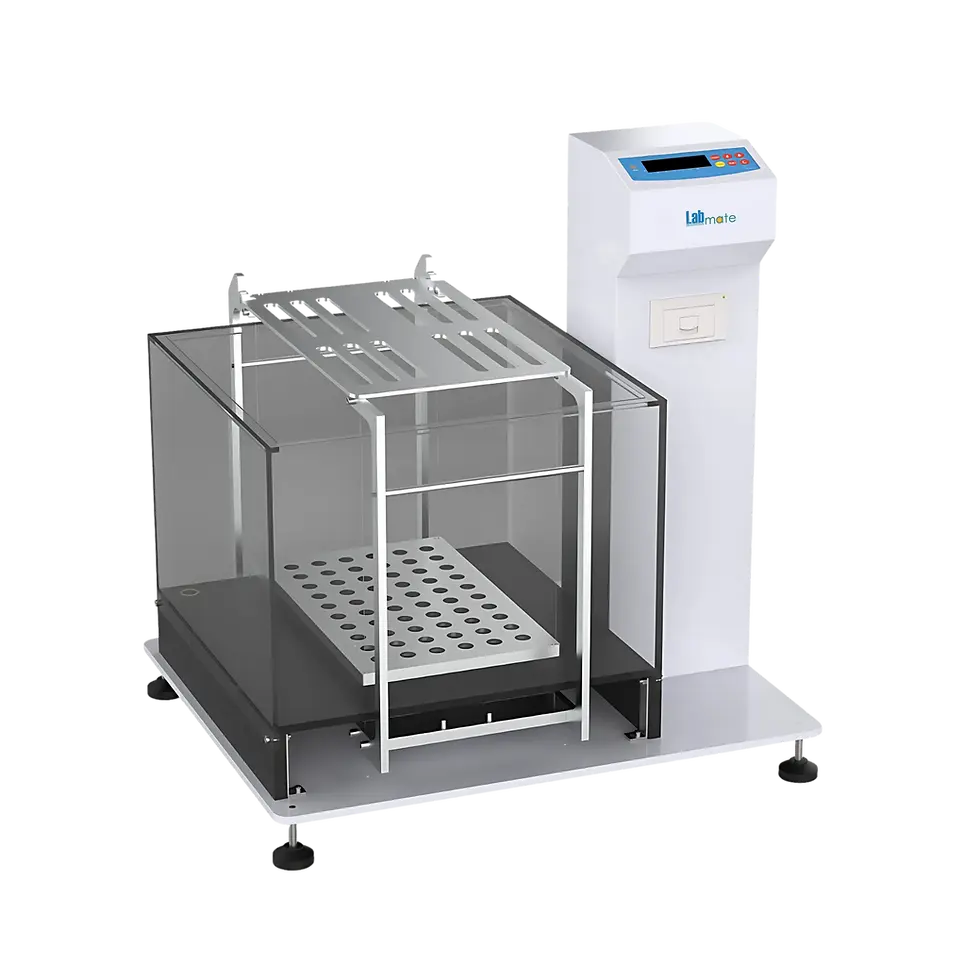

Labmate Floor-Standing Density Meter LMDMF-A100

Labmate Floor-Standing Density Meter LMDMF-A100

Product Overview

The Labmate Floor-Standing Density Meter LMDMF-A100 is a heavy-duty, industrial-grade system designed for accurate density measurement of large and heavy solid samples. With a high load capacity and automatic calculation functions, it delivers fast and reliable determination of density, volume, and percentage content. Its robust aluminium alloy structure and floor-standing configuration make it ideal for manufacturing facilities, industrial laboratories, and research environments handling oversized materials.

Key Features

• High Capacity Measurement: Supports sample weights up to 10 kg

• Wide Density Range: 0.001 to 99.999 g/cm³ for diverse material types

• Automatic Calculations: Simultaneous display of density, volume, and percentage content

• Fast Test Cycle: Typical measurement completed in approximately 20 seconds

• Large Sample Accommodation: Handles bulky and voluminous test items

• Water Temperature Compensation: Improves accuracy under varying test conditions

• Robust Aluminium Alloy Frame: Built for long-term industrial use

• Inlet and Outlet Valves: Convenient liquid handling during immersion testing

• RS-232C Interface: Enables connection to external printers or data systems

Applications

• Density testing of large industrial components

• Automotive and aerospace material inspection

• Metallurgy and ceramic bulk material analysis

• Rubber, plastic, and foam product testing

• Industrial quality control and R&D laboratories

Technical Specifications

Specification	Details
Maximum Load Capacity	10,000 g
Weighing Accuracy	0.1 g
Density Range	0.001 to 99.999 g/cm³
Density Accuracy	0.001 g/cm³
Maximum Sample Size	710 × 490 × 380 mm
Measurement Time	~20 s per test
Displayed Results	Density, volume, percentage
Compensation Settings	Water temperature, medium density
Construction	Aluminium alloy
Dimensions (H × W × D)	1250 × 1110 × 990 mm
Net Weight	164 kg
Data Interface	RS-232C

Standard Accessories

• Floor-standing host unit

• Calibration weight

• Thermometer

• Sample handling tweezers

• Power transformer

Selection Guide

• Large & Heavy Samples: Best suited for density testing of oversized or high-weight components

• Industrial Throughput: Fast measurement speed supports high-volume production environments

• Multi-Parameter Output: Ideal when density, volume, and percentage content are required simultaneously

• Stable Industrial Design: Floor-standing structure ensures stability during heavy sample testing

• Data Connectivity: RS-232C interface allows seamless integration with laboratory reporting systems
