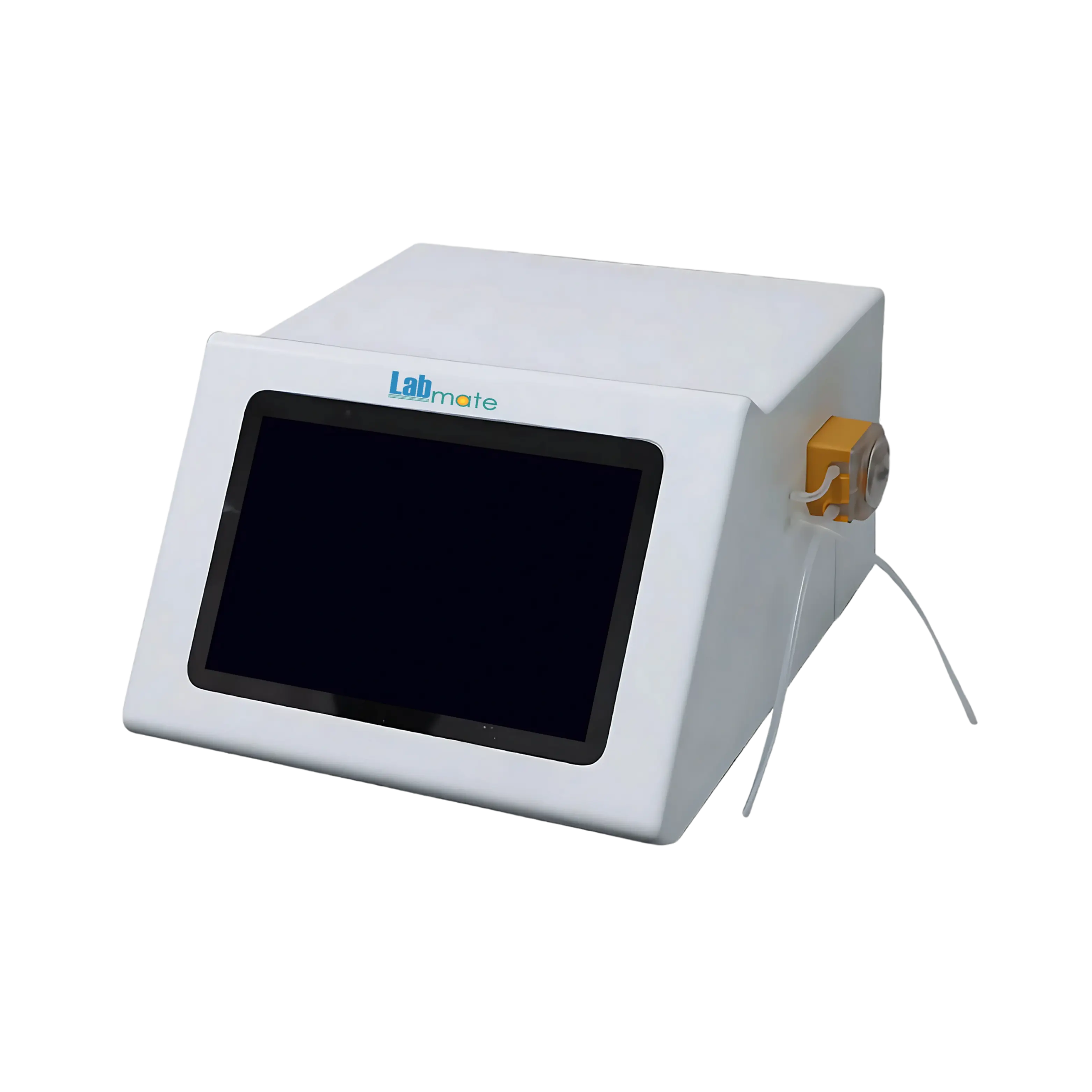

Labmate Portable Density Meter LMPDM-B100
The Labmate Portable Density Meter LMPDM-B100 offers precise and reliable density measurements in a compact design, perfect for on-the-go professionals. As an authorized distributor, winselluma ensures this high-quality device reaches you with the reliability and support you expect. Our commitment to excellent customer service and competitive pricing makes acquiring the LMPDM-B100 through winselluma an easy and trustworthy choice. Enhance your fieldwork with the innovation and accuracy of the Labmate Portable Density Meter LMPDM-B100.
Product Info
Labmate Portable Density Meter LMPDM-B100
Product Overview
The Labmate Portable Density Meter LMPDM-B100 is a high-performance, portable instrument designed for rapid and precise measurement of liquid density, alcohol concentration, and custom formulas. Equipped with advanced temperature control and a large interactive touchscreen, it is ideal for quality control laboratories, beverage and chemical production, pharmaceutical monitoring, and research environments.
Key Features
-
Multi-Mode Testing: Density, alcohol concentration, and custom formula measurements
-
Measuring Range: 0 – 3 g/cm³
-
High Resolution: ±0.0001 g/cm³ for precise readings
-
Repeatability: ±0.0001 g/cm³
-
Accuracy: ±0.0003 g/cm³
-
Peltier Temperature Control: Stabilizes samples between 5 °C and 45 °C
-
Automatic and Manual Sample Injection: Supports flexible workflows
-
Large Touchscreen Display: 10.4‑inch colour display for intuitive control
-
Extensive Data Handling: 32 GB storage, USB/RS-232/RJ45/SD card/U disk outputs, audit trails, and electronic signatures
-
Report Generation: PDF and Excel output with MD5 integrity verification
Applications
-
Pharmaceuticals: Quality control and formulation verification
-
Chemicals: Process monitoring and concentration checks
-
Beverages: Alcohol content analysis and liquid quality control
-
Laboratories: Precise liquid property measurement and research
Technical Specifications
Specification Details Test Modes Density, alcohol, custom formulas Measuring Range 0 – 3 g/cm³ Resolution ±0.0001 g/cm³ Repeatability ±0.0001 g/cm³ Accuracy ±0.0003 g/cm³ Temperature Control Method Peltier Temperature Range 5 – 45 °C Temperature Stability ±0.02 °C Display 10.4″ colour touchscreen Data Storage 32 GB Outputs USB, RS-232, RJ45, SD card, U disk Audit & Security Audit trail, electronic signature, MD5 verification Export Formats PDF, Excel Power Supply AC 110–230 V, 50/60 Hz Dimensions (W × D × H) 425 × 410 × 250 mm Weight ~8.5 kg Standard Accessories
-
LMPDM-B100 Host Unit – Main instrument
-
LMPDM-B100-A1 Power Cable – AC connection
-
LMPDM-B100-A2 USB Cable – Data transfer
-
LMPDM-B100-A3 RS-232 Cable – Serial interface
-
LMPDM-B100-A4 SD Card – Data storage
-
LMPDM-B100-A5 User Guide – Operating instructions
-
LMPDM-B100-A6 Calibration Certificate – Factory calibration reference
Selection Guide
-
Advanced Liquid Analysis: Ideal for density and alcohol concentration testing with high precision.
-
Temperature-Sensitive Samples: Peltier system ensures stable thermal conditions.
-
Data Management: Large storage and multiple output options support documentation and reporting.
-
User-Friendly Interface: 10.4-inch touchscreen simplifies setup and data review.
-
Multi-Industry Use: Suitable for pharmaceuticals, chemicals, beverages, and laboratories requiring accurate liquid density measurement.
-
