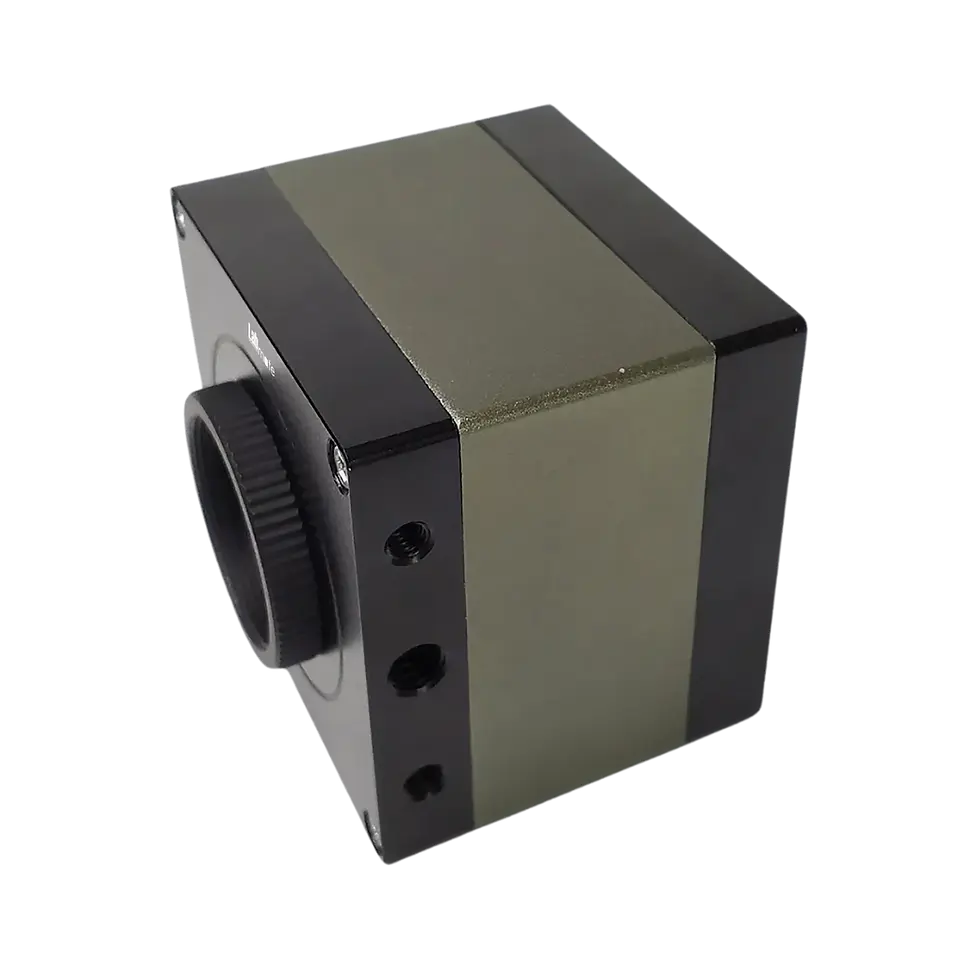

Labmate Microscope Camera LMMIC-A113
Labmate Microscope Camera LMMIC-A113 delivers 8 MP high-resolution imaging with a 1/1.8-inch Sony IMX178 color CMOS sensor. It captures fine structural details with high sensitivity, even in low-light conditions. Equipped with a C-mount interface, it is compatible with a wide range of microscopes and optical systems. Supports automatic and manual control of exposure, gain, and white balance, and operates across Windows, Mac OS X, and Linux platforms.
Product Info
Key Features
-
8 MP high-resolution color CMOS sensor
-
1/1.8-inch sensor for detailed imaging
-
High sensitivity for low-light conditions
-
Automatic and manual exposure, gain, and white balance
-
HDMI 1.4 and USB video connectivity
-
Anti-flicker function for stable imaging
-
Compact and robust design
-
Color-to-gray conversion supported
-
High frame rate: 30 fps at 4K / 1080p
Technical Highlights
Specification Details Sensor Type Color CMOS Sony IMX178 Sensor Size 1/1.8-inch (7.68 × 4.32 mm) Resolution 8 Megapixels (3840 × 2160) Pixel Size 2 × 2 µm G Sensitivity 505 mV with 1/30 s Video Resolution 8 MP Frame Rate 30 fps @ 3840 × 2160, 20 fps @ 3840 × 2160 Recording Modes Still images and video capture Image Signal Processor Exposure, Gain, White Balance, Sharpening, 3D Denoise, Saturation, Contrast, Brightness, Gamma, Color-to-Gray, Anti-flicker Mounting Size C Mount HDMI Interface HDMI 1.4, 30 fps at 4K / 1080p USB Video Interface MJPEG format via USB Video port Connectivity HDMI, USB Operating System Windows / Mac OS X / Linux Hardware Requirements CPU: Intel Core2 2.8 GHz+ PC Requirements Memory: 4 GB, Display: 19-inch+, CD-ROM Power Supply 12 V, 1 A Standard Accessories
-
HDMI Cable – 1 pc
-
USB Cable – 1 pc
-
Power Adapter – 1 pc
-
Lens Cleaning Cloth – 1 pc
-
Calibration Slide – 1 pc
-
Microscope Mount Adapter – 1 pc
-
Protective Carrying Case – 1 pc
-
User Manual – 1 pc
Applications
Labmate Microscope Camera LMMIC-A113 is ideal for biological research, medical diagnostics, industrial inspection, education, and forensic applications, providing high-resolution imaging, real-time video capture, and precise documentation.-
