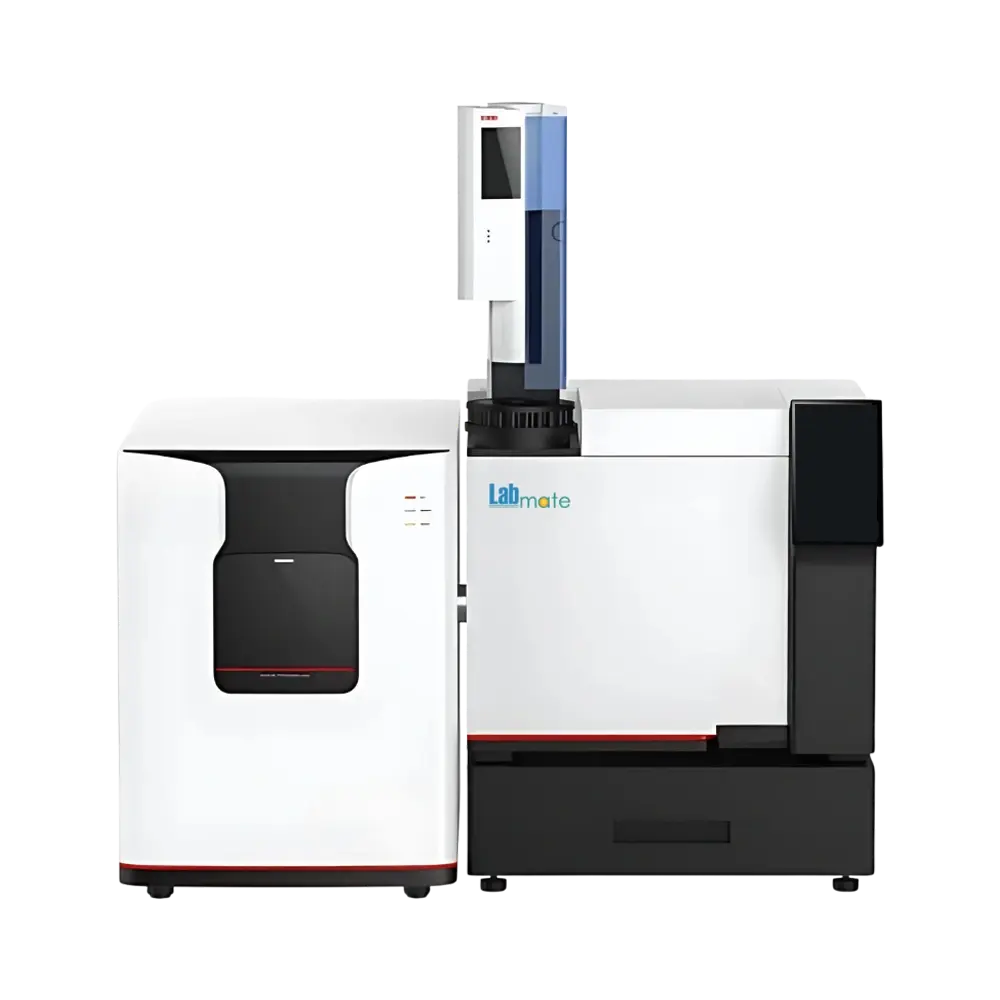

Labmate LMCMS-100 Triple Quadrupole Gas Chromatograph Mass Spectrometer
Discover unparalleled precision with the Labmate LMCMS-100 Triple Quadrupole Gas Chromatograph Mass Spectrometer, a state-of-the-art instrument designed to meet your most demanding analytical needs. As an authorized distributor, winselluma ensures you receive top-tier products and exceptional service, reflecting our commitment to scientific excellence. Ideal for high-performance labs, the LMCMS-100 offers enhanced sensitivity and superior quantitative accuracy for complex sample analyses. Trust winselluma to provide reliable solutions that drive your research forward.
Product Info
The Labmate LMCMS-100 Triple Quadrupole Gas Chromatograph Mass Spectrometer is designed for separating, identifying, and quantifying compounds in complex mixtures. Its robust design and advanced features cater to a wide array of analytical applications, ensuring precision and reliability.
Key Features:
- Versatile Sample Volume Processing: Processes sample volumes from 0.1 µL to 250 µL, accommodating diverse analytical needs.
- Optimized Gas Flow Rates: Equipped with flow rates from 0 to 500 mL/min for N₂ and up to 1000 mL/min for He, H₂, ensuring efficient separation and analysis.
- High-Temperature GC Inlet: Features a GC inlet reaching 450°C for efficient vaporization of complex compounds.
- Advanced Pumping System: Integrated with mechanical and turbomolecular pumps for consistent charged particle transfer and minimal interference.
- Wide Mass Range: Measures ions from 5 to 1100 amu, enabling diverse analytical procedures.
- Triple Quadrupole Mass Analyzer: Ensures high sensitivity and selectivity in mass analysis.
- Stable EI Ion Source: Enhances ionization efficiency and stability.
- Automated Gas Regulation: Provides precise and programmable electronic gas circuit control.
- High Sensitivity in MRM Mode: Achieves sensitivity with MRM mode at 100 fg/µL OFN of 1µL, greater than or equal to 15000:1.
Specifications:
Feature Specification Working Ambient Temperature 18 to 25 °C Working Humidity 20 to 60% RH Pumping Speed 65 m³/h GC Sample Volume 0.1 µl to 250 µl GC Sampling Accuracy ± 0.01% GC Sampling Precision RSD less than 0.5% GC Flow Rate 0 to 500 ml/min (N₂), 0 to 1000 ml/min (He, H₂) GC Inlet Temperature 450 °C GC Temperature Control Accuracy ± 0.1 °C GC Pressure Range 0 to 100 psi GC Pressure Control Accuracy ± 0.001 Psi GC Heating Rate Up to 120 °C / min, typically 50 °C / min GC Cooling Rate 5 minutes GC Pressure Control Mode Programmable electronic gas circuit control MS Mass Analyzer Triple quadrupole mass analyzer MS Mass Number Range 5 to 1100 amu MS EI Ion Source Temperature 150 °C to 350 °C GC-MS Interface Temperature 50 to 400 °C MS Scan Rate up to 20,000 amu/s MS Stability less than ± 0.1 amu / 24 hrs. MS EI Source Ionization Energy 10 eV to 300 eV MS Resolution 0.4 to 3 amu (adjustable) MS Detector Pulse counting detectors MS Sensitivity MRM mode: 100 fg/µL OFN of 1µL, greater than or equal to 15000:1 MS Vacuum Mechanical pump and dual inlet turbo molecular pump Power Supply 220 ± 20 V AC, 10A, 50 Hz Dimensions (L × W × H) 1170 × 860 × 860mm Weight 140 Kg Standard Accessories:
Model No. Accessory LMCMS-100-H1 Host machine for MS part LMCMS-100-I1 GC Customized host + inert injection port LMCMS-100-MS1 Overseas version MS accessory kit LMCMS-100-GC1 Overseas version GC accessory kit LMCMS-100-A1 Adjustable operating table (617×508×180mm) LMCMS-100-V1 Vacuum mechanical pump Optional Accessories:
Model No. Accessory LMCMS-100-L1 Liquid automatic sampler LMCMS-100-S1 150-vial sample tray combined liquid autosampler LMCMS-100-T1 Tuning solvent (OFN) LMCMS-100-SP1 European standard adapter plug LMCMS-100-SP2 European standard three-core power cord & length 2m LMCMS-100-C1 Capillary column Applications:
The Labmate LMCMS-100 is essential for identifying:
- Polychlorinated biphenyls and nitrophenols in water
- Banned pesticide residues in Chinese herbal medicines
- Various food additives
