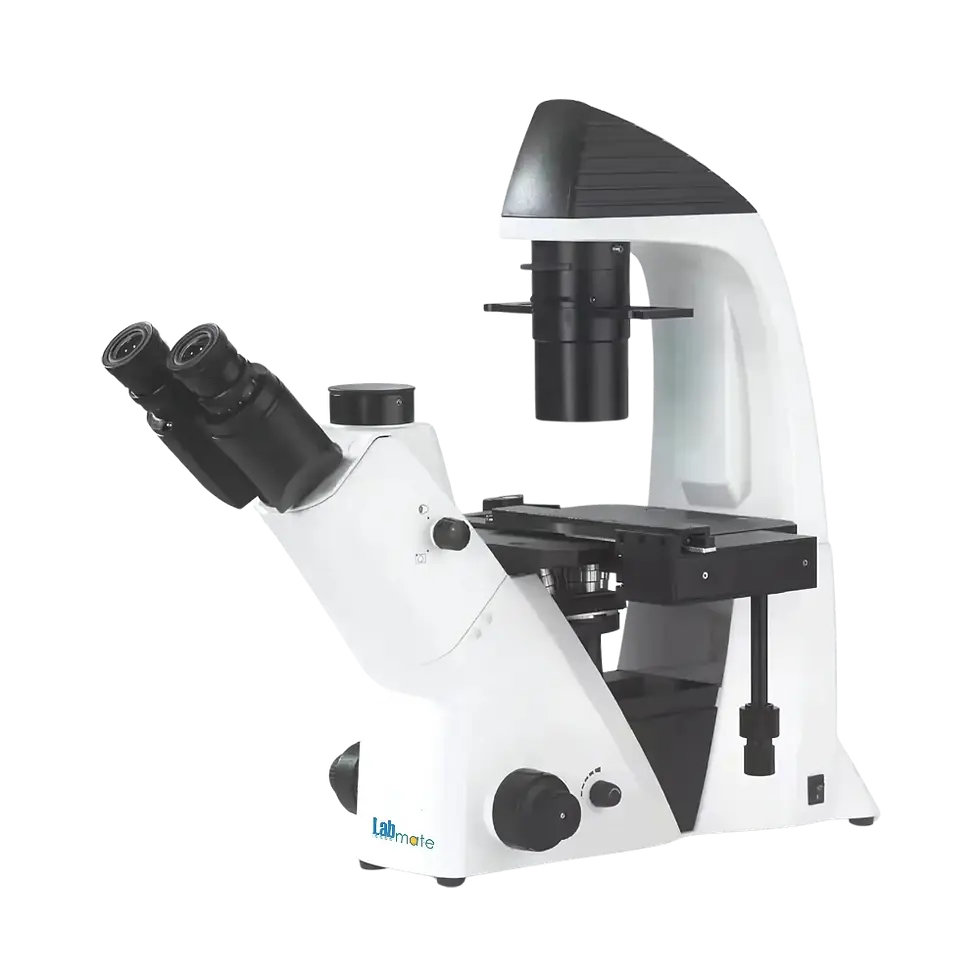

Labmate Inverted Biological Microscope LMIB-502
The Labmate Inverted Biological Microscope LMIB-502 features a 45° inclined Siedentopf trinocular head with adjustable light distribution and interpupillary distance, allowing seamless camera integration. It is equipped with long working distance (LWD) infinity plan objectives, WF10X/22 eyepiece, and advanced Koehler illumination for uniform, consistent brightness. The microscope includes a quickly detachable condenser and plate-compatible stage, providing versatility for live cell and tissue observation.
Product Info
Key Features
-
Siedentopf trinocular head, 45° inclined, adjustable light splitting (100:0, 20:80)
-
Interpupillary distance: 48–76 mm
-
WF10X/22 eyepiece
-
Quintuple nosepiece with LWD infinity plan objectives: 10X/0.25 (WD 8.3 mm), 20X/0.40 (WD 7.2 mm), 40X/0.60 (WD 3.4 mm)
-
Phase contrast: 20X/0.40 LWD infinity plan
-
Annular spot for 20X/40X objectives
-
Condenser: NA 0.3
-
Working distance without condenser: 195 mm
-
Culture dish holder: 54 mm
-
Stage: 241 × 210 mm, movement range 128 × 80 mm, compatible with round slides Φ118 mm
-
Koehler illumination: 60V/30W, input voltage 100–240V
-
Blue and green filters
-
Smooth focusing mechanism
-
Corrosion-resistant, robust platform
Applications
-
Observation of live cells, tissues, and microorganisms in culture vessels
-
Cell biology and IVF research
-
Microbiology studies
-
Materials inspection
Technical Highlights
Specification Details Viewing Head Siedentopf Trinocular, 45° inclined Interpupillary Distance 48–76 mm Light Distribution Trinocular head: 100:0, 20:80 Eyepiece WF 10X/22 Nosepiece Quintuple Objectives 10X/0.25 (WD 8.3 mm), 20X/0.40 (WD 7.2 mm), 40X/0.60 (WD 3.4 mm) Phase Contrast LWD Infinity plan 20X/0.40, WD 7.2 mm Annular Spot 20X/40X Condenser NA 0.3, quickly detachable Working Distance without Condenser 195 mm Culture Dish Holder 54 mm Stage 241 × 210 mm, movement 128 × 80 mm, round slides Φ118 mm Illumination Koehler 60V/30W, input 100–240V Filters Blue, Green -
