Labmate Drug Dissolution Tester LMDDT ‑B101

Labmate Drug Dissolution Tester LMDDT ‑B101

Product Overview

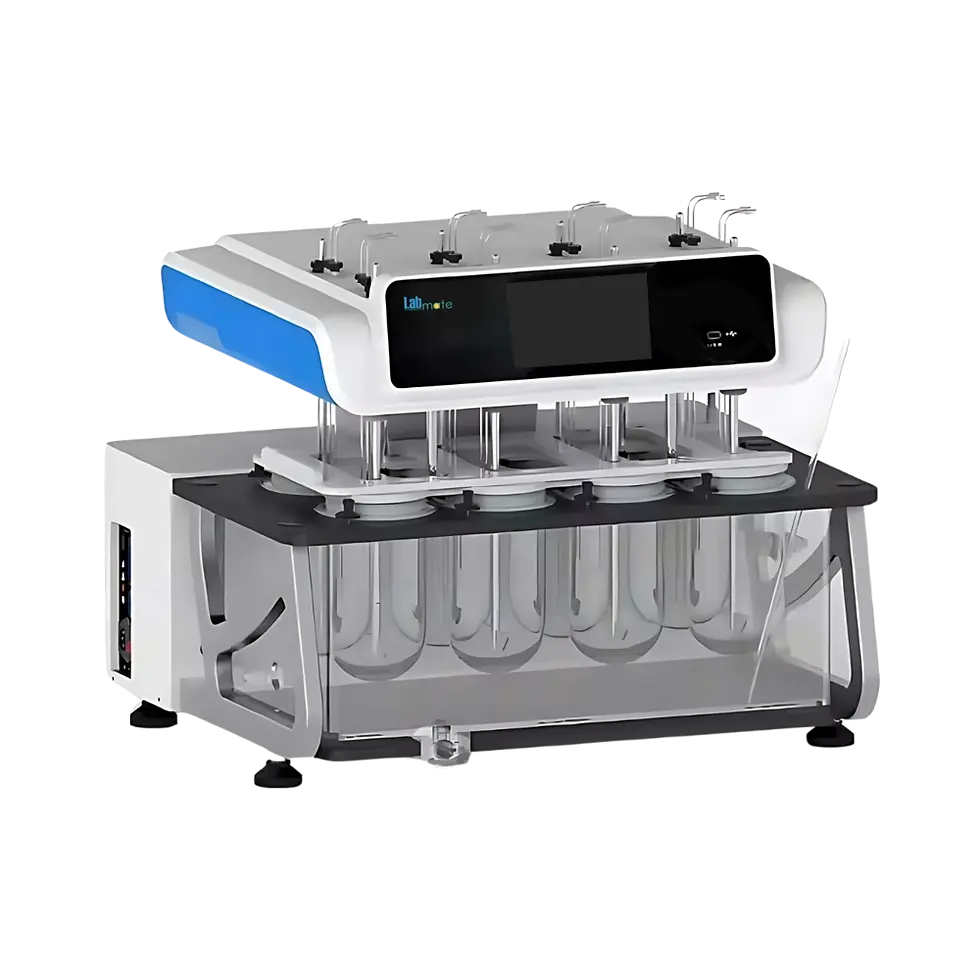

The Labmate LMDDT ‑B101 is an 8‑station pharmaceutical dissolution tester designed for reliable and consistent evaluation of drug release rates from solid oral dosage forms such as tablets and capsules. With expanded vessel capacity and advanced control features, it supports medium‑throughput dissolution workflows in pharmaceutical research, formulation development, quality control, and regulatory testing environments.

Key Features

• 8‑Vessel Configuration: Eight positions for simultaneous multichannel testing

• 8 Paddle/Basket Assemblies: Supports both paddle and basket methods for flexible dissolution protocols

• Integrated Synchronous Water Circulation: Ensures uniform heating and temperature stability across all vessels

• Real-Time Control: Continuous temperature monitoring with over-temperature protection

• High-Definition Touchscreen: Intuitive interface with data export and user management for traceability

• Energy-Efficient Operation: Rapid heating with minimal energy consumption

• Self-Diagnosis & Fault Protection: Built-in diagnostics improve reliability and reduce maintenance needs

• Flexible Speed & Rotation: Broad speed range with bidirectional paddle/basket motion for standard dissolution methods

Technical Specifications

Specification	Detail
Number of Vessels	8
Number of Paddle/Basket Units	8
Vessel Height	185 mm
Paddle Swing Amplitude	≥ 0.5 mm
Basket Swing Range	≥ 1.0 mm
Speed Range	10 – 300 rpm
Speed Accuracy	≥ 1 rpm
Temperature Range	Room temperature – 45 °C
Temperature Resolution	0.1 °C
Temperature Accuracy	± 0.3 °C
Sampling Capacity	≥ 100 points
Countdown Timer Range	Up to 999 h 59 min 59 s
Display	High-definition touchscreen
Water Circulation	Integrated synchronous system
Data Management	USB export, audit trail, user access rights
Power Supply	AC 220 V ± 10%, 50 Hz
Dimensions (W × D × H)	66 × 55 × 57 cm
Weight	~62 kg

Included Accessories

• Eight dissolution vessels with supports

• Paddle and basket stirrer assemblies

• Integrated water circulation and heating system

• High-definition touchscreen control with data export

Applications

The LMDDT ‑B101 is suitable for dissolution testing of:

• Tablets

• Capsules

• Powders

• Granules

• Other solid oral pharmaceutical formulations

It supports routine quality control, formulation development, bioequivalence studies, and regulatory compliance testing, providing uniform, reproducible dissolution profiles suitable for standardized pharmacopeial protocols.

Selection Guide

Select the LMDDT ‑B101 when your laboratory requires:

• Medium-throughput testing with eight simultaneous vessels

• Advanced control and monitoring via touchscreen interface

• Flexible speed and mixing configurations for multiple dissolution methods

• Comprehensive data management with USB export and audit trails

• Reliable thermal stability and automated protection features

Ideal for pharmaceutical R&D, formulation teams, quality control labs, and regulatory testing facilities needing a robust, accurate, and user-friendly dissolution tester for routine and advanced applications.
