Product Overview

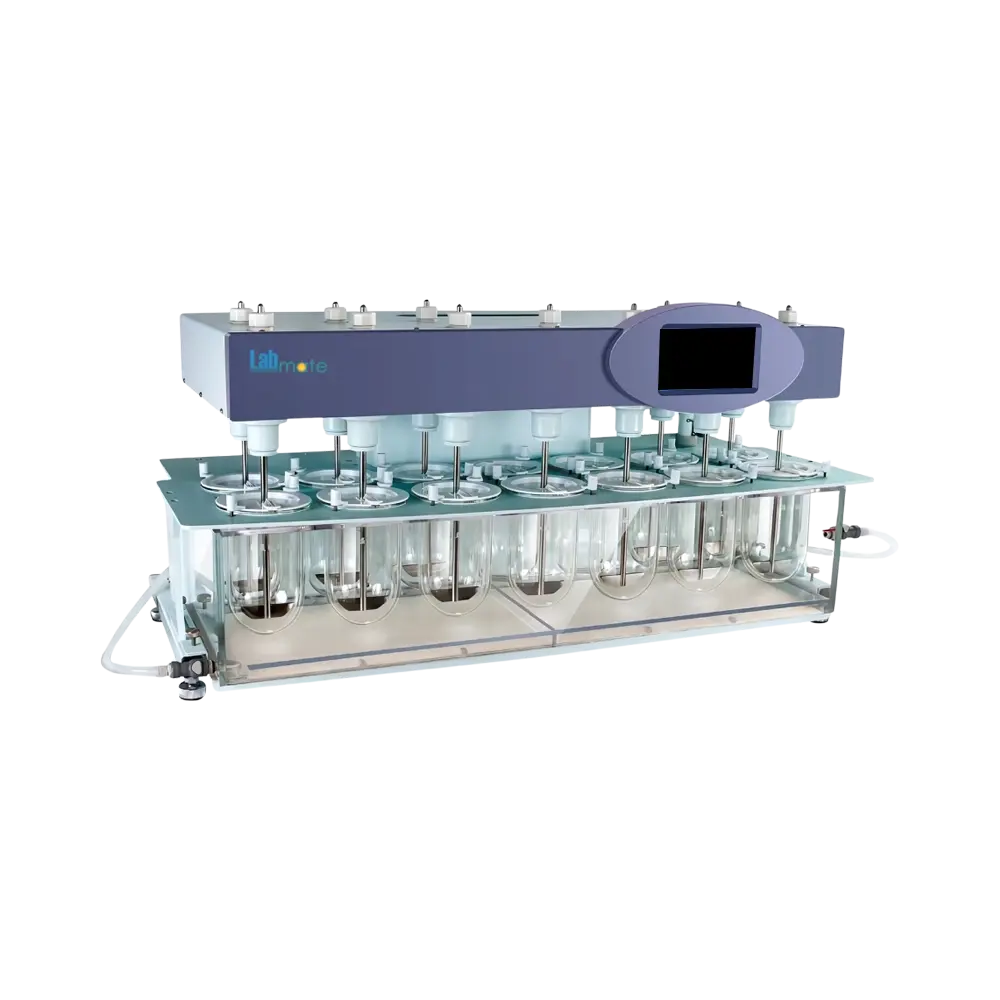

The Labmate LMDDT ‑A102 is a high‑precision pharmaceutical dissolution tester designed to measure the release characteristics of active ingredients from oral dosage forms such as tablets and capsules. Ideal for quality control, formulation development, and regulatory testing, this model combines advanced control, broad testing capabilities, and robust construction to support demanding pharmaceutical laboratory workflows.

Key Features

• 14 Dissolution Cups: Expanded sample capacity for high-throughput testing

• 12 Paddle & Basket Rods: Flexible configuration to accommodate different sample types

• LCD Touchscreen Interface: Intuitive controls and real-time parameter display

• Electric Lift Head: Automated head positioning enhances ease of use and reduces manual handling

• Dual-Channel Temperature Sensors: Ensure consistent thermal conditions across the bath

• Login & Data Management: Operator authentication, method storage, scheduled operations, and alarm systems for traceability

• Low Noise Operation: Quiet performance suitable for laboratory environments

• Protective Alerts: Calibration reminders and overheat protection improve reliability

Technical Specifications

Specification	Detail
Speed Control Range	10 – 300 rpm
Speed Resolution	1 rpm
Speed Accuracy	± 4 %
Temperature Range	Room temperature – 55 °C
Temperature Resolution	0.01 °C
Temperature Accuracy	± 0.3 °C
Paddle Wobble	≤ 0.5 mm
Rotating Basket Wobble	≤ 1.0 mm
Shaft-to-Vessel Deviation	≤ 2.0 mm
Methods Storage Capacity	Up to 27 groups
Sampling Intervals	Up to 25 per test
Max Sampling Cycle Time	99 h 59 min
Working Noise	< 60 dB
Environmental Operating Range	5 – 37 °C, ≤ 80 % RH
Power Consumption	~1350 W
Power Supply	220 V ± 10 %, 50 Hz
Net Weight	~95 kg
Gross Weight	~160 kg
Overall Dimensions	108 × 55 × 140 cm

Included Accessories

• Water bath tank

• Power cord

• Dissolution vessels with rings

• Paddle shafts and basket shafts

• Baskets

• Couplings

• Needles and needle seats

• Basket sampling columns

• Measuring hook

• Filter heads and membranes

• Vessel lids and additional lid covers

• Fuses and connector plug

• Drain tube

Applications

The LMDDT ‑A102 is ideal for dissolution testing of:

• Tablets

• Capsules

• Powders and granules

• Other solid oral formulations

It is suitable for pharmaceutical quality control, bioequivalence and dissolution profiling, and formulation development and research, providing reproducible, high-quality data.

Selection Guide

Choose the LMDDT ‑A102 when your laboratory requires:

• High sample throughput with 14 dissolution cups and multiple rods

• Advanced data management including method storage and operator controls

• Wide operational ranges for speed (10–300 rpm) and temperature (up to 55 °C)

• Real-time monitoring with dual temperature sensors

• Automated handling via electric head lift for ease of operation

This model is ideal for formulation development teams, pharmaceutical QC labs, and contract research organizations requiring flexible, high-capacity dissolution analysis that aligns with standard pharmacopeial methods.
