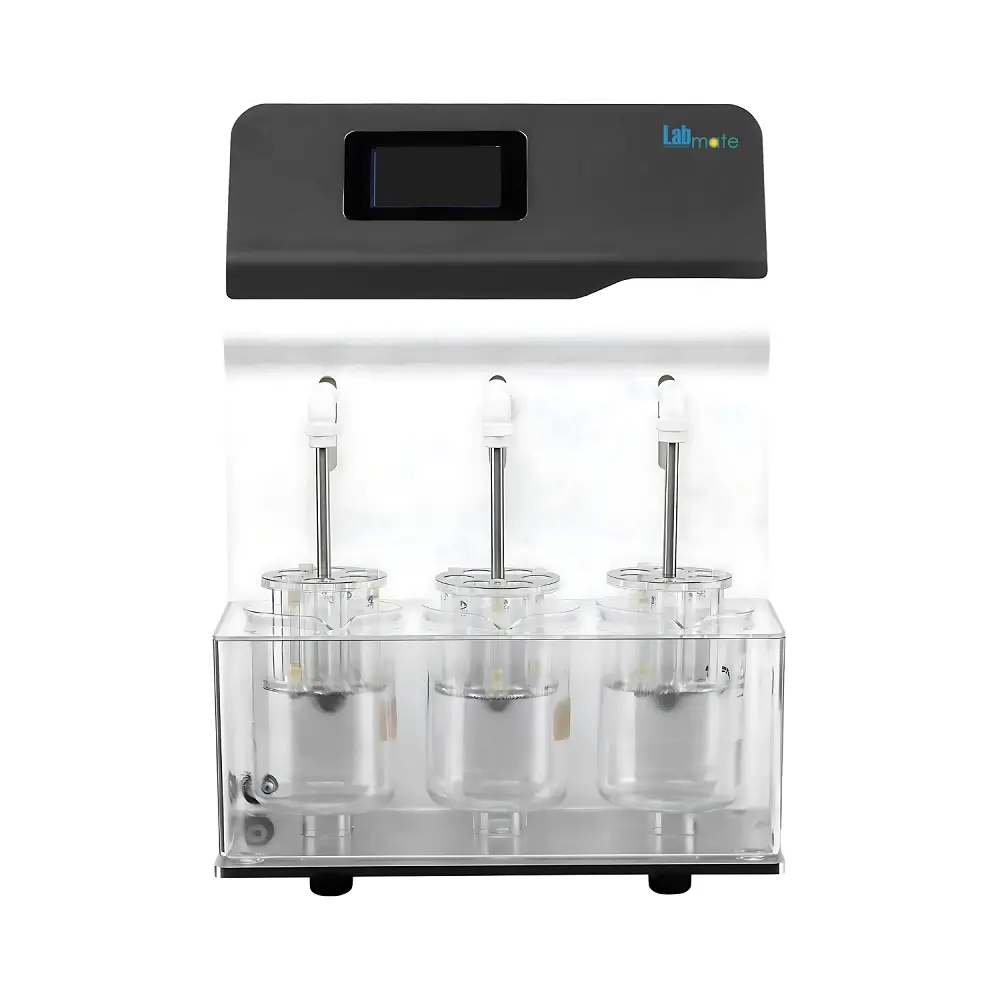

Labmate Disintegration Tester LMDT-A103
Discover precision and reliability with the Labmate Disintegration Tester LMDT-A103, designed to meet the highest standards of pharmaceutical research. Featuring automated controls and advanced disintegration testing capabilities, this device ensures accurate results and streamlined workflow. At winselluma, we are proud to provide this essential tool for quality control, ensuring your products meet rigorous industry standards. Trust in our commitment to excellence, as winselluma is an authorized distributor of Labmate products, bringing top-tier laboratory equipment to your doorstep. Elevate your research and production processes with the Labmate Disintegration Tester LMDT-A103 through winselluma.
Product Info
Labmate Disintegration Tester LMDT-A103
Product Overview
The Labmate Disintegration Tester LMDT-A103 is a high-performance pharmaceutical testing instrument designed to evaluate the disintegration time of solid dosage forms — including tablets and capsules — under controlled liquid immersion conditions. It enhances throughput, accuracy, and user control, making it ideal for quality control laboratories, formulation development, stability studies, and regulatory compliance workflows.
Key Features
-
Three Basket Stations: Enables simultaneous testing of multiple samples to improve workflow efficiency
-
Standardized Motion: Basket lifting distance of 55 ± 1 mm with 31 cycles/min for reproducible and compliant motion
-
Water Bath Temperature Control: Operates from room temperature up to 45 °C
-
High-Resolution Temperature Monitoring: 0.01 °C resolution with ± 0.3 °C accuracy at 37 °C
-
Touchscreen Interface: Simplifies operation and real-time monitoring
-
Pt100 Temperature Sensor: Provides accurate feedback for thermal regulation
-
Security & Data Management: Multi-level user authority management and audit trail with up to 96 records
-
Robust Construction: One-piece painted shell, brushless circulating pump, auto basket positioning, temperature protection switch, and independent lighting system
Technical Specifications
Specification Details Number of Baskets 3 Basket Lifting Distance 55 ± 1 mm Oscillation Frequency 31 cycles/min Water Bath Temperature Range Room temp – 45 °C Temperature Resolution 0.01 °C Temperature Control Accuracy 37 °C ± 0.3 °C Screen Aperture Options Standard 2 mm; optional 1 mm / 0.71 mm / 0.42 mm Authority Management Three levels, seven user profiles Audit Trail Capacity 96 records × 366 days Login Options Username + Password, Fingerprint Dimensions (W × D × H) 55 × 56 × 92 cm Packaging Dimensions 55 × 56 × 92 cm Net Weight 27.5 kg Gross Weight 38 kg Standard Accessories
-
Printer for on-site results output
Applications
-
Pharmaceutical Quality Control: Routine evaluation of tablet and capsule disintegration times
-
Formulation Development: Comparative studies of prototype formulations
-
Stability Testing: Assessment of disintegration behavior under varied storage and condition profiles
-
Regulatory Compliance: Supports pharmacopeial testing standards
-
Nutraceutical & Supplement Testing: Disintegration profiling of non-prescription products
Selection Guide
High Throughput: Three baskets allow multiple samples to be tested simultaneously
Precise Temperature Control: Water bath up to 45 °C with high resolution and accuracy
User Access & Security: Multi-level authority and audit trail features support regulated environments
Robust and Reliable: Durable construction and advanced motion control enhance reproducibility
Versatile Testing: Suitable for pharmaceutical, nutraceutical, and research laboratories
-
