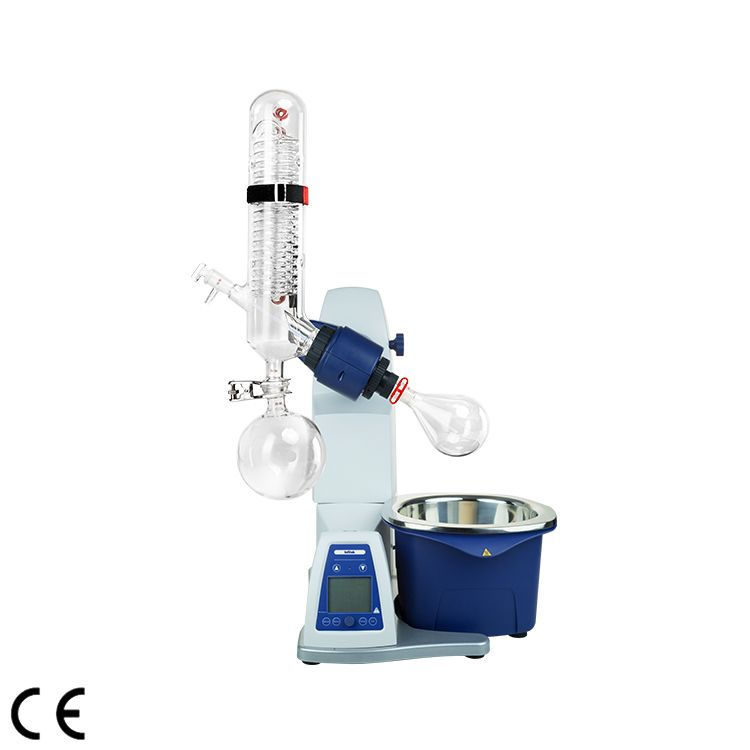

Infitek Rotary Evaporator, Lab Scale, REV100-P
- Experience precision and efficiency with the Infitek Rotary Evaporator, Lab Scale, REV100-P.
- Designed for high-performance separation and purification.
- Ensures outstanding results for your laboratory needs.
- Emphasizes reliability and user-friendly operation.
- Ideal partner for complex evaporative processes.
- Embodies the values of innovation and quality.
- Enhance your lab operations today with exceptional performance and durability.
Product Info
- Digital display of both rotation speed and heating temperature allows for optimal control of all distillation processes
- Automatic motor lift releases the evaporating flask to a safe position in case of power failure
- 5L heating bath with wide temperature range from room temp. to 180°C. Water/oil heating mode can be changed only through a switch.
- Overheating protection temperature at 220°C
- Speed range from 20 to 280rpm, and interval operation in clockwise and anticlockwise directions for drying process
- Patented condenser (cooling surface 1700cm²) with excellent cooling effect
- Ejection mechanism ensures easy removal of evaporating flask
- Patented double spring sealing ring which is made of PTFE provides an excellent sealing performance
- Remote function provides PC control and data transmission
Specifications
Specifications REV100-P Evaporating Flask Volume 50-3000ml (Standard configuration-1000ml)
(Optional thickened glass axis compatible with 3L evaporating flask)
Receiving Flask Volume 100-2000ml (Standard configuration-1000ml)
Motor Type Brushless DC motor Speed Range 20rpm-280rpm Display LCD (speed, temperature, time) Clockwise and Anti-clockwise Yes Heating Temperature Range Room temp. to 180℃ Control Accuracy water: ±1℃ oil: ±3℃ Heating Power 1300W Stroke Displacement automatic 150mm Timer Yes Time Setting Range 1-999min Interval Time Setting Range 1~999s Dimension (D×W×H) 465*457*583mm Weight 15kg Permissible Ambient Temperature 5℃-40℃ Permissible Relative Humidity 80%RH Protection Class IP20 USB Interface Yes Voltage/Frequency 100V-120V/200V-240V 50Hz/60Hz Power 1400 W Supporting products REV100-P+ Diaphragm Vacuum Pump VACP-D410+Low Temperature Circulator RECL20-4.5+Vacuum Controller VACC100
