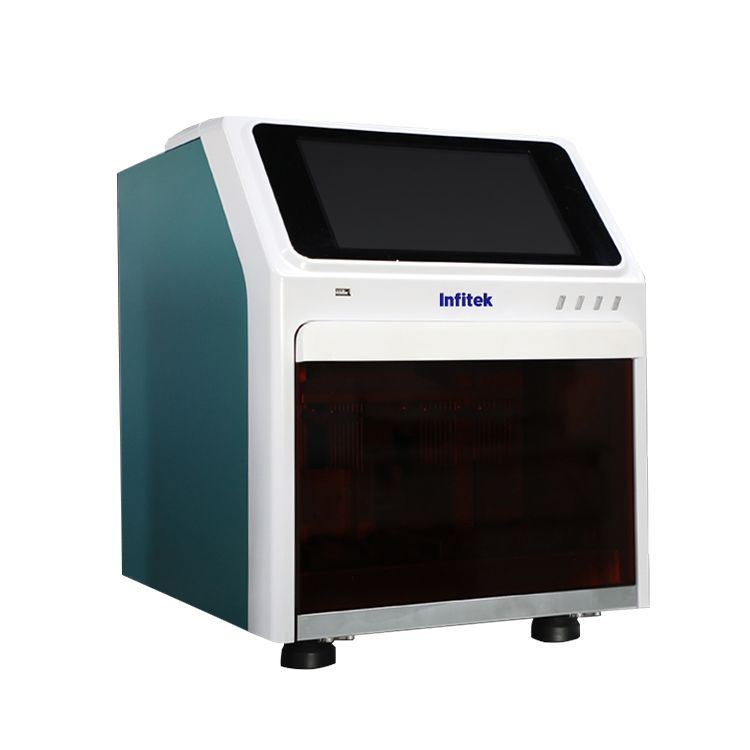

Infitek Nucleic Acid Extractor, Automatic, NAE-0132 side view

Infitek Nucleic Acid Extractor, Automatic, NAE-0132

  • High throughput:1-32
  • Huge kit portfolio
  • Prefilled 96-well plates
  • Easy to set up and run
  • No cross contamination
  • The residual amount of magnetic beads <0.5%

  • Product Info

    • The intelligent cycle magnetic absorption function can realize the magnetic bead residue of any system < 0.5%;
    • The magnetic rod can be dismantled to facilitate repair and change, hence prolong the device use time;
    • Adjustable to multiple scales and modules, and meet the requirements of different trials;
    • Adopt deep vacuum heating strip of strong wrapping ability, and reduce the bias between set temperature and actual temperature;
    • Mounted with ultraviolet disinfectant device and level 11 HEPA high efficiency air filter net, and reduce aerosol pollution effectively;
    • Adopt Linux system and interchange easily between Chinese and English interfac;
    • Able to save program according to extraction type, convenient for search.

  • Specifications

    Model NAE-0132
    Working voltage AC110-240V,50-60Hz
    Working temperature 10-40°C
    Working humidity Below 80%
    Specimen flux 1-32, minimum specimen disposal amount:1 specimen/time
    Extracted plate position 2 positions
    Applicable consumables 96 deep well plate, 6-well reagent stripe etc.
    Heating position Column 2,6,8,12 can be heated
    Temperature control 10 – 99°C
    Working volume 20-1000ul
    Magnetic bead recovery rate >99.5%
    Screen display Graphic color control panel is ok for independent use, computer is not needed.
    Sensation equipment Pyroelectric technique
    Operation interface 10 inch, 1024 x 768 color screen, interchangeable between Chinese and English
    Net set Ethernet can be extended to realize remote control
    Ultraviolet light Yes
    Pollution control Level 11 HEPA filter net
    External dimension (405mmx350mmx465mm) mm±10mm
    Instrument weight 22.5kg±0.5kg
    USB interface Yes
    Noise <60db
    Experiment storage At most 64 accounts can be established, and each account has at most 100 program storage spaces
    Program management Program classified management function is built inside, and the program can be pre-set
    Oscillatory mix Adjustable with multiple modules and scales
    Magnetic absorption module One step magnetic absorption and multiple magnetic absorption
    Magnetic absorption cycle time 1-10 adjustable
