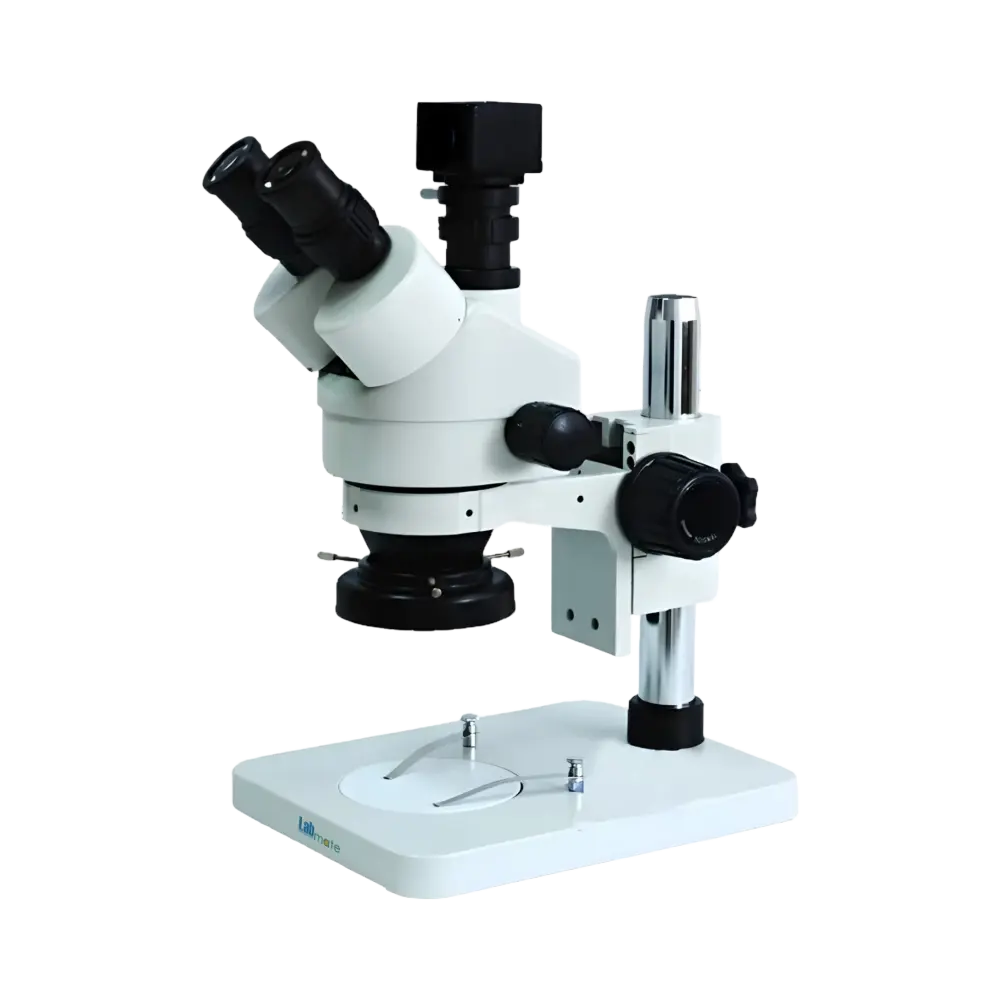

Labmate Stereo Microscope LMSM-602
Labmate Stereo Microscope LMSM-602 features a 45° inclined trinocular viewing head with LED illumination, providing clear, high-contrast images over a large viewing area. The microscope offers a wide magnification range from 7× to 45× (optional 3.5× to 180×) with WF10× eyepiece and 100 mm working distance. Equipped with a 95 mm white plastic stage with side clips, it allows secure placement of specimens and precise observation. Coaxial coarse and fine focusing knobs, along with interlocked eyepiece tubes with diopter adjustment, ensure accurate and comfortable viewing.
Product Info
Key Features
-
Trinocular viewing head inclined at 45°
-
Wide-field eyepiece WF10× (Φ20 mm)
-
Magnification range: 7×–45× (optional 3.5×–180×)
-
Working distance: 100 mm
-
Zoom ratio: 1:6.4
-
Stage: 95 mm white/black plastic with side clips
-
Depth of field: 15 mm
-
Upper LED ring illumination
-
Coaxial coarse and fine focusing adjustment
-
Optional accessories: Auxiliary lenses 0.5×, 2×; Digital camera with 1× or 0.5× C-mount adapter
Technical Highlights
Specification Details View Tube Trinocular, 45° inclined Eyepiece WF10× (Φ20 mm) Objective 0.7× to 4.5× Working Distance 100 mm Stage 95 mm white/black board with side clips Magnification Standard: 7×–45×; Optional: 3.5×–180× Zoom Ratio 1:6.4 Depth of Field 15 mm Illumination Upper LED ring light Optional Accessories Auxiliary lenses 0.5×, 2×; Digital camera, 1× or 0.5× C-mount adapter Applications
Labmate LMSM-602 is used in food science, marine biology, embryology, biotechnology, and research centers. It is suitable for studying solid specimen surfaces, medical and clinical inspection, agroforestry, geology, precise casting, LED inspection, and clad layer analysis.-
