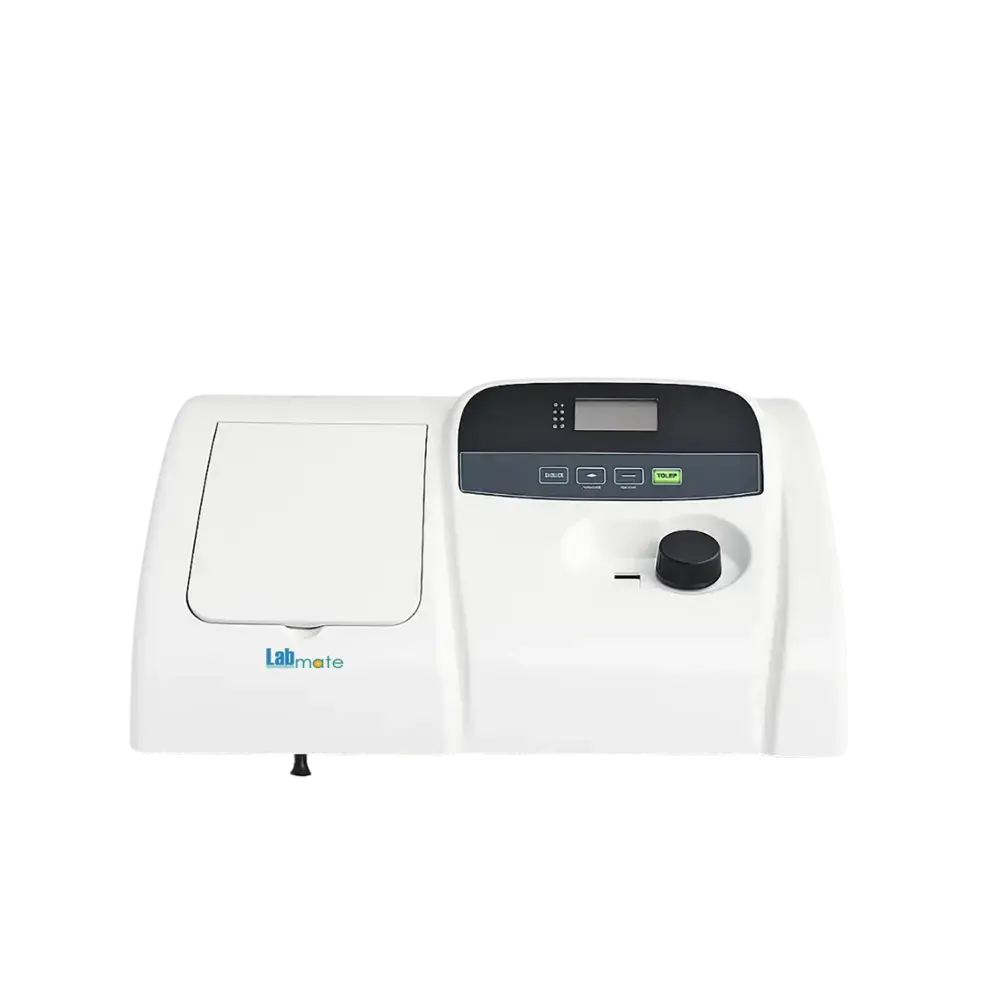

Labmate Single Beam Visible Spectrophotometer LMSV-B101
Labmate LMSV-B101 is a single-beam visible spectrophotometer covering 325–1000 nm. It features a microprocessor system for enhanced control and stable operation, with a wide sample chamber for flexible handling. Equipped with a monochromator and tungsten lamp, it ensures accurate spectral separation and reliable photometric measurements. Suitable for laboratory, industrial, and research applications.
Product Info
Key Features
-
Wavelength range: 325–1000 nm
-
4 nm bandwidth for precise measurements
-
Single-beam optical system with 1200 lines/mm grating
-
Silicon photodiode detector
-
Tungsten lamp light source
-
Manual wavelength setting with 0.1 nm resolution
-
Multiple photometric modes: T, A, C, F
-
Low stray light: ≤0.2%T at 360 nm
-
Stable measurements: ≤0.002 A/30 min at 500 nm
-
128×64 LCD display
-
USB and Parallel Port output
-
Auto zero calibration and quick mode switching
Technical Specifications
Specification Details Wavelength Range 325–1000 nm Bandwidth 4 nm Optical System Single beam, grating 1200 lines/mm Detector Silicon photodiode Light Source Tungsten lamp Wavelength Accuracy ±2 nm Wavelength Repeatability ≤0.5 nm Wavelength Setting Manual Wavelength Resolution 0.1 nm Photometric Range –0.3 to 3 A, 0–200%T, 0–9999 C Photometric Accuracy ±0.5%T Photometric Repeatability ≤0.2%T Photometric Modes T, A, C, F Stray Light ≤0.2%T at 360 nm Stability ≤0.002 A/30 min at 500 nm Display 128×64 Dots LCD Output USB, Parallel Port Power Supply AC 85–250 V Dimensions 420×280×180 mm Weight 8 kg Standard Accessories
Model No. Accessory LMSV-B101-C1 1 cm Glass cuvettes LMSV-B101-P1 Power cord LMSV-B101-D1 Dust cover LMSV-B101-B1 Black block Optional Accessories
Model No. Accessory Unit Quantity LMSV-B101-H1 10 mm Single-position cell holder Each 1 LMSV-B101-H2 Manual 10 mm 4-position cell holder Each 1 LMSV-B101-H3 Manual 50/100 mm Universal 4-position cell holder Each 1 LMSV-B101-H4 10 mm single-position water jacketed ambient cell holder Each 1 LMSV-B101-H5 Transparent film holder Each 1 LMSV-B101-M1 Micro thermo printer Each 1 LMSV-B101-L1 W lamp 12V, 20W Each 1 LMSV-B101-L2 D2 lamp Each 1 LMSV-B101-G1 3.5 ml Glass cuvettes with lid Set 4 LMSV-B101-G2 17.5 ml Glass cuvettes with lid Set 4 LMSV-B101-G3 35 ml Glass cuvettes with lid Set 4 LMSV-B101-Q1 3.5 ml Quartz cuvettes with lid Set 2 LMSV-B101-Q2 17.5 ml Quartz cuvettes with lid Set 2 LMSV-B101-Q3 35 ml Quartz cuvettes with lid Set 2 LMSV-B101-P2 PC Software - UV Basic Set 1 LMSV-B101-P3 PC Software - MetaSpec Pro Set 1 Applications
Labmate LMSV-B101 is ideal for routine testing of liquid samples, including determination of transmittance, absorbance, concentration, and factor values in research laboratories, quality control, academic institutions, and production environments.
-
