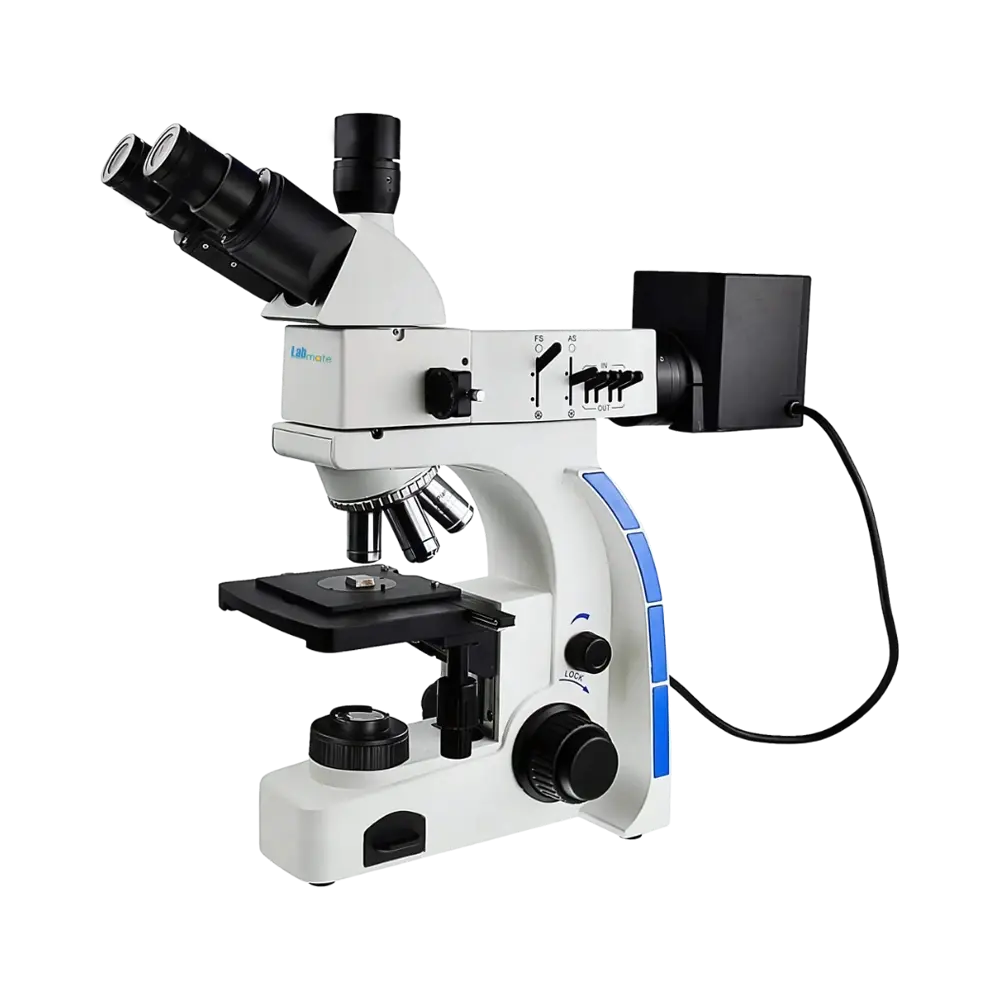

Labmate Metallurgical Microscope LMMM-701
Labmate Metallurgical Microscope LMMM-701 features four plan achromatic objective lenses and both bright field and dark field condensers for versatile metallurgical analysis. It incorporates a 30° inclined Siedentopf trinocular head with WF10×20 eyepiece and interpupillary distance adjustment of 48–75 mm for ergonomic viewing. Illumination is provided by 3 W LED or 6 V 20 W transmitted light. The quadruple reverse-angled nosepiece and coaxial coarse and fine focusing knobs allow precise sample examination. All optics are anti-fungus and anti-reflection coated for maximum light throughput and high-resolution imaging.
Product Info
Key Features
-
Four plan achromatic objective lenses
-
Bright field and dark field condensers
-
30° inclined Siedentopf trinocular head
-
WF10×20 eyepiece with adjustable interpupillary distance (48–75 mm)
-
Coaxial coarse & fine focusing with friction control
-
Quadruple reverse-angled nosepiece
-
Anti-fungus and anti-reflection coated optics
-
Optional LWD infinity objectives for high-resolution imaging
-
Suitable for solid specimen inspection, measurement, and metallurgical analysis
Technical Highlights
Specification Details Viewing Head 30° inclined Siedentopf Trinocular Eyepiece WF10×20 Objective Lenses 5X / 10X / 20X / 50X Nosepiece 4 Holes, reverse-angled Condenser Bright field & Dark field Light Source 12V 50W (transmitted) Power Supply AC100–240V / DC12V Color White and Black Features Infinity professional LWD objectives optional, adjustable interpupillary distance, diopter adjustments, friction-controlled coarse adjustment Applications
Labmate Metallurgical Microscope LMMM-701 is used for industrial quality control, inspection, and measurement. It is ideal for viewing thin films, electroplating, inclusions, surface defects, and determining grain size.Accessories
-
Power cord
-
Dust cover
-
Spare fuse
-
