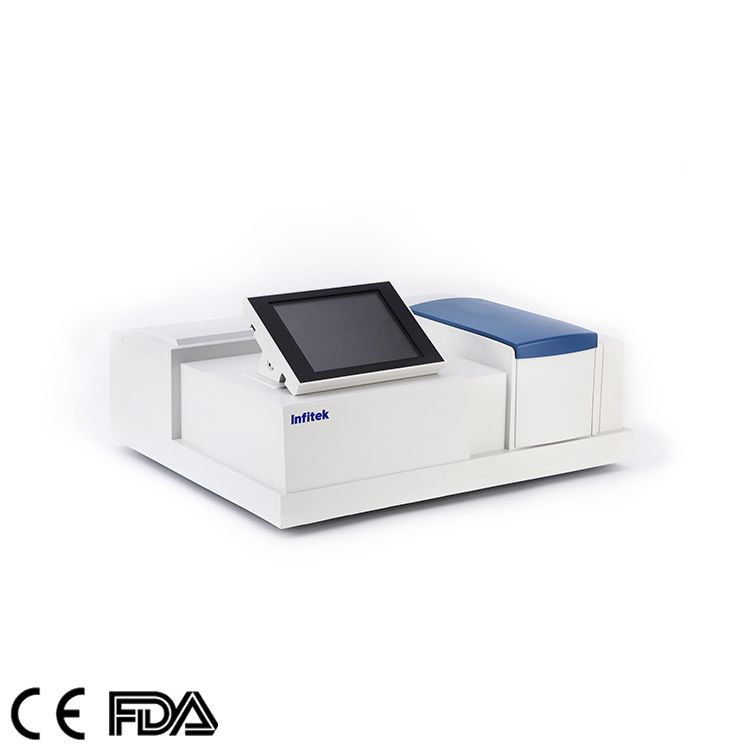

Infitek Double Beam UV Visible Spectrophotometer, SP-IUV8, SP-IUV9
- Discover precision with the Infitek Double Beam UV Visible Spectrophotometer
- Available in models SP-IUV8 and SP-IUV9
- Features:
- Czerny-Turner Monochromator
- 200mm focal length
- Superior accuracy and reliability
- Bandwidth options:
- SP-IUV8: 1nm or 2nm
- SP-IUV9: 0.5nm to 5nm
- Optimized with a grating of 1600 lines/mm
- Exceptional performance for laboratory needs
- Choose Infitek for unmatched precision and efficiency in photometric analysis
PRODUCT INFO
Description
SP-IUV8 and SP–IUV9 Double Beam UV Visible Spectrophotometer serve as the basic equipment for quality control, technical evaluation and scientific research, and can be widely used in susceptibility testing, medicine and health, biochemistry, environmental monitoring, commodity inspection, petrochemical and other fields.
Features
- New optical platform
Enable the host machine with excellent optical properties, metering performance, low stray light and noise, high metering accuracy and stability.
- Easy operation&Reliable performance
USB communication port.
- inch color touch-screen, with a good user-machine interface, easyto
Imported long-life deuterium lamp, imported OSRAM tungsten lamp.
- Unique system of deuterium and tungsten lamp installation
Facilitate the light source to automatically switch to the best position, and allow users to operate the instrument, replace the light source and maintain the instrument more conveniently, accurately and safely.
- Powerful spectral data processing and storage capabilities
Sophisticated hardware and software design.
Automatic scanning measurement spectrum, multi-wavelength (1 ~ 3λ) measurement, kinetic measurement, 1-3 curve fitting, 1-4 derivative spectra.
Spectra printing and storage and data analysis.
Model SP-IUV8 SP-IUV9 Photometry Double beam Monochromator Type Czerny-Turner Focal Length 200mm Grating 1600 lines/mm Detector Silicon photocell Spectrum Bandwidth 2nm or 1nm 0.5nm,1nm,2nm,4nm,5nm Wavelength Setting 8-inch color touch-screen Wavelength Range 190-1100nm Wavelength Accuracy ±0.3nm Wavelength Repeatability ≤0.1nm Scanning Speed Fast-Medium-Slow Stray Light ≤0.02%T( at 220nm NaI, 360nm NaNo2 ) Photometric Range 0.0-200.0%T -0.301-4.000A
0.000-9999C
Photometric Accuracy
±0.3%T ±0.002Abs (0-0.5A)
±0.004 Abs (0.5-1A)
Photometric Repeatability ≤0.15%T 0.001 Abs (0-0.5A)
0.002 Abs (0.5-1A)
Baseline ≤±0.0008 A(200-1090nm) Sound Emission 100%（T）Sound emission≤0.1%(T) ， 0%（T）Sound emission≤0.02%(T)
Drifting ≤0.004 Abs/h (250nm and 500nm after 2h warm up) COM Port USB Light Source Hamamatsu D2 lamp，Osram halogen tungsten lamp Electricity AC220V±22V, 50Hz±1Hz, 200W N.W./G.W 34/42.5kg Product Dimension(L*W*H) 584*504*360mm Shipping Dimension(L*W*H) 730*630*450mm
