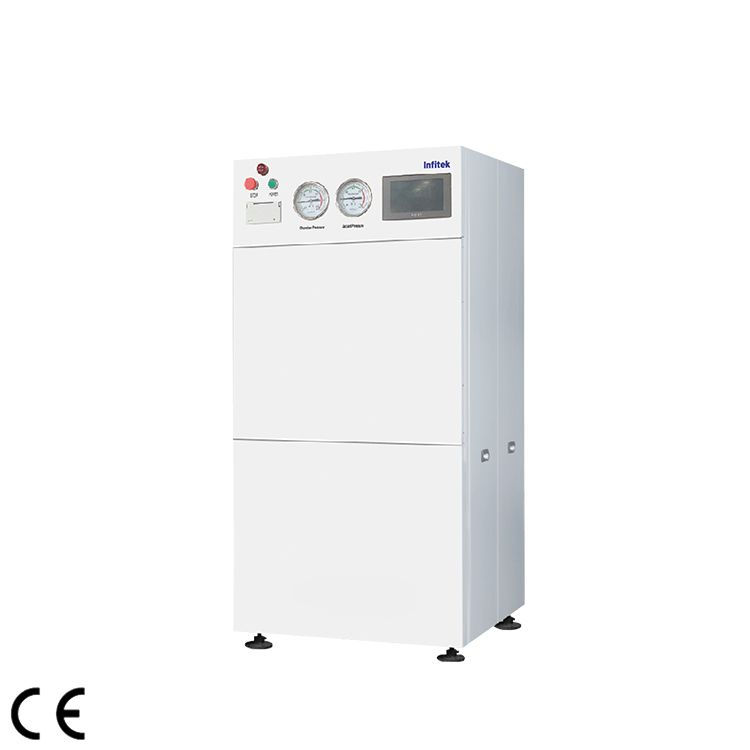

Infitek Autoclave, Class N, Horizontal Type, STH-NDM Series
- Discover premium sterilization with the Infitek Autoclave, Class N, Horizontal Type, STH-NDM Series.
- Designed with a robust jacket structure.
- Available in chamber volumes of 150L, 200L, 300L, and 400L.
- Operates at working temperatures between 105-136℃.
- Customize your sterilization requirements easily with multiple program settings.
- Prioritize safety with comprehensive protection features built-in.
- Elevate your laboratory's efficiency and reliability with this top-tier autoclave solution.
PRODUCT INFO
- Horizontal circular inner chamber and jacket structure, safety, heat preservation, and drying function；
- Disc type embedded gear and Electric lock door structure, safety and reliable;
- Door seals are pneumatic
- Equipped with standard equipment verification interface
- Pipeline system for the optimal design, SUS 304 pipeline, clamp structure, quick assembly
- Control system: HMI man-machine interface, touch screen + microcomputer;
- F0 value and temperature time double guarantee sterilization effect, with perfect sterilization records;
- With program selection, parameter setting, equipment operation, report processing and traceability functions;
- Multiple safety protection(over-temperature, over-pressure protect)
- Built-in printer
- USB function
Product Specification
Design Pressure -0.1~0.25MPa Design Temperature 139℃ Working Pressure 0.225MPa Working Temperature 105~136℃ Temperature Equilibrium <+2.0℃ Vacuum -0.086MPa Water Pressure 0.1-0.2MPa Compressed Air Pressure 0.4~0.7MPa Steam Pressure 0.3~0.7MPa Power Voltage Three-phase five-wire AC380V/50Hz Model&Parameter(With Pulse Vacuum)
Model Overall Dimensions（L*W*H（mm） Chamber Size （φ*L)mm
Steam Consumption（kg） Water Consumption（kg） Power （kW)
STH-N100DM 1090*640*1160 φ420*700 ≤11 ≤190 ≤2+⑫ STH-N150DM 1260*690*1700 φ472*850 ≤13 ≤190 ≤2+⑮ STH-N150SM 1130*690*1700 φ472*950 ≤13 ≤190 ≤2+⑮ STH-N200DM 1490*690*1700 φ472*1080 ≤15 ≤190 ≤2+⑮ STH-N200SM 1360*690*1700 φ472*1180 ≤15 ≤190 ≤2+⑮ STH-N300DM 1400*850*1730 φ620*960 ≤20 ≤200 ≤2+⑱ STH-N300SM 1150*850*1730 φ620*960 ≤20 ≤200 ≤2+⑱ STH-N400DM 1680*850*1730 φ620*1230 ≤25 ≤200 ≤2+⑱ STH-N400SM 1500*850*1730 φ620*1310 ≤25 ≤200 ≤2+⑱ Note: The machine needs external compressed air for door sealing and the air consumption is not large. If the end users don’t have a ready air source, they can choose to use an air compressor of about 40L.
