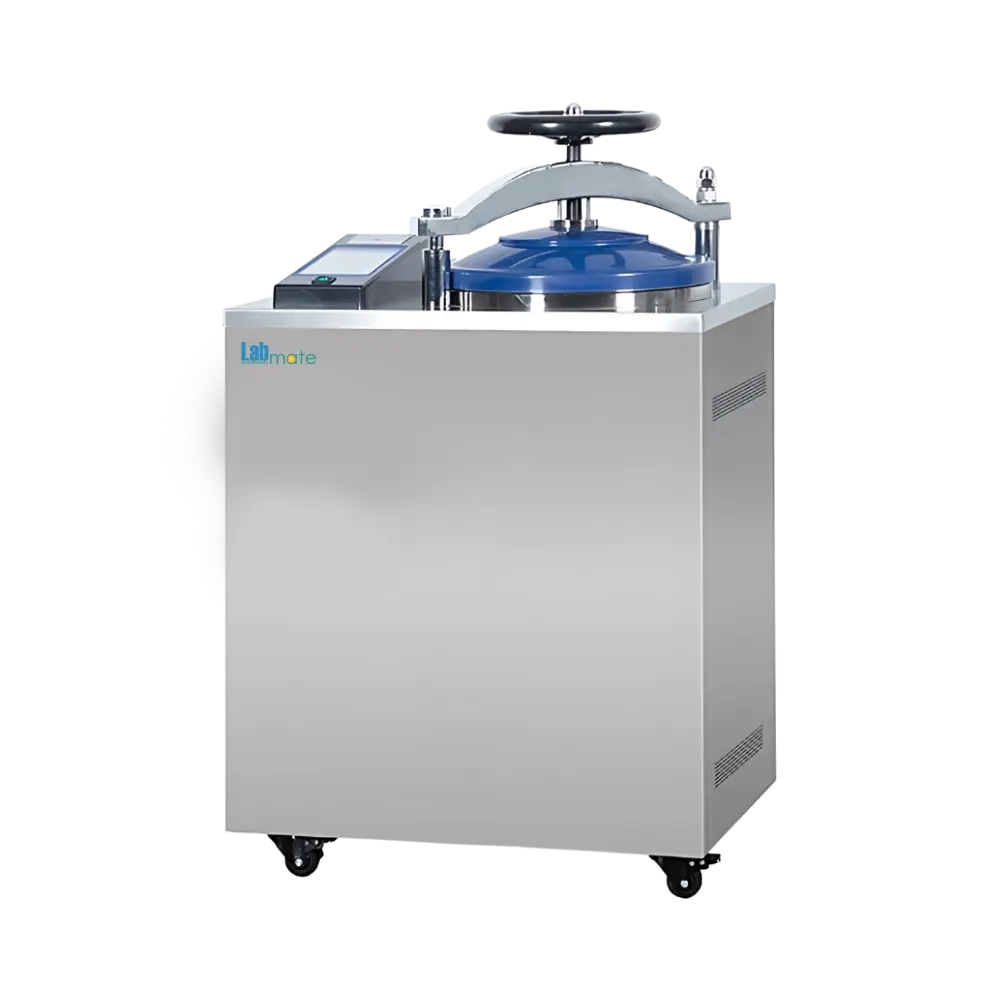

Vertical Pulse Vacuum Autoclave LMVA-A400
Introducing the Vertical Pulse Vacuum Autoclave LMVA-A400, now available at winselluma. This state-of-the-art autoclave offers superior sterilization through advanced vacuum technology, ensuring the highest standards of safety and compliance. Ideal for healthcare and laboratory settings, it guarantees efficient, thorough disinfection of instruments and materials. Trust in quality and performance, knowing that winselluma is an authorized distributor, dedicated to providing exceptional products and customer service. Enhance your sterilization processes with the reliability and efficacy of the LMVA-A400.
Product Info
Labmate Vertical Pulse Vacuum Autoclave LMVA‑A400
Overview:
The Labmate Vertical Pulse Vacuum Autoclave LMVA‑A400 is a high‑performance, top‑loading sterilizer engineered for rigorous sterilization requirements in laboratories, clinics, dental and veterinary facilities, pharmaceutical operations, and research environments. Utilizing pulse vacuum technology, large chamber capacity, and automated controls, it delivers deep steam penetration and effective air removal for thorough sterilization of instruments, media, glassware, and porous loads. Its vertical orientation maximizes space efficiency while supporting professional‑grade sterilization with robust safety protections.
Key Features:
-
Pulse Vacuum Technology: Enhanced vacuum pulses remove air efficiently and enable superior steam penetration throughout the load.
-
High‑Temperature Sterilization: Adjustable sterilization temperature range up to 134 °C provides effective pathogen elimination.
-
Extended Time Settings: Broad sterilization and drying time ranges allow customization for diverse load types.
-
Durable Construction: Heavy‑duty stainless‑steel chamber and pressure vessel ensure longevity and corrosion resistance.
-
Triple Pre‑Vacuum Pulses: Improves removal of trapped air for more consistent sterilization results.
-
Safety Systems: Automatic protection against over‑temperature and over‑pressure enhances operator safety.
-
User‑Friendly Controls: Touch display and control panel simplify cycle selection and monitoring.
Applications:
-
Sterilization of surgical, dental, and medical instruments
-
Decontamination of laboratory glassware, porous tools, and culture media
-
Preparation of sterile supplies for clinical, research, and diagnostic tasks
-
Sterilization in pharmaceutical production and quality control labs
-
Useful for microbiology and infectious disease research facilities
Technical Highlights:
Specification Detail Capacity 35 L Chamber Dimensions Ø 350 × 400 mm Sterilization Temperature Range 116 °C – 134 °C Temperature Accuracy ± 1 °C Sterilization Time Setting Range 4 – 120 min Drying Time Setting Range 0 – 240 min Design Pressure 0.25 MPa Working Pressure 0.22 MPa Working Temperature (Maximum) 134 °C Power Consumption 3.5 kW Power Supply AC 220 V, 50 Hz External Dimensions (W×D×H) 698 × 498 × 940 mm Net Weight 115 kg Gross Weight 130 kg -
