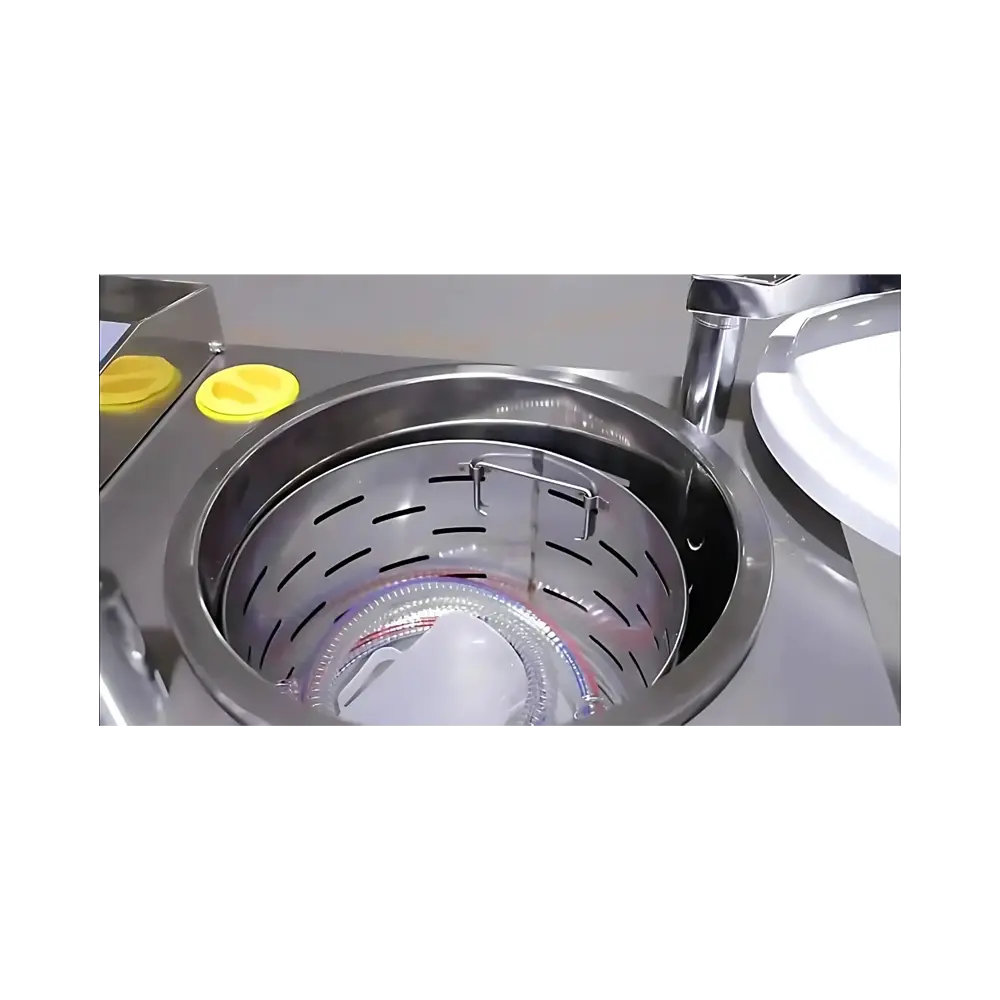

Labmate Vertical Pressure Steam Sterilizer LMVS‑A103
The Vertical Pressure Steam Sterilizer LMVS-A103 is a cutting-edge solution for effective sterilization, ideal for various laboratory and medical applications. As an authorized distributor, winselluma ensures you receive top-tier products that meet stringent quality standards. With features like efficient temperature control and rapid sterilization cycles, this sterilizer guarantees reliability and safety. Trust winselluma to provide this advanced equipment, backed by our dedication to exceptional service and expertise in the field.
Product Info
Labmate Vertical Pressure Steam Sterilizer LMVS‑A103
Overview:
The Labmate Vertical Pressure Steam Sterilizer LMVS‑A103 is a professional, top‑loading steam autoclave designed for dependable sterilization of medical, laboratory, clinical, and research equipment. Built with an enlarged vertical chamber and intuitive digital controls, this unit delivers powerful high‑pressure steam sterilization at adjustable temperatures. Its vertical form factor maximizes space efficiency while providing robust construction and advanced safety systems — ideal for frequent use in healthcare and laboratory environments.
Key Features:
-
Large 100 L Chamber: Accommodates larger instrument loads and labware for high‑throughput sterilization.
-
Digital LCD Control Panel: Intuitive display and touch keys simplify cycle selection, monitoring, and parameter viewing.
-
Advanced Safety Protections: Integrated safety valves and interlocks protect against over‑temperature and over‑pressure conditions for secure operation.
-
Quick‑Open Hand Wheel Door: Top‑loading design with secure door interlock improves workflow and access.
-
Adjustable Sterilization Parameters: Temperature and time settings allow flexibility for diverse sterilization applications.
-
Audible Alerts: Built‑in buzzers notify users of low water levels and cycle completion for ease of use.
-
Optional Drying System: Can be equipped with a drying module based on user requirements for enhanced post‑cycle processing.
Applications:
-
Sterilization of surgical, dental, and clinical instruments
-
Decontamination of laboratory glassware and porous tools
-
Preparation of sterile supplies for research, diagnostic, and clinical tasks
-
Routine sterilization in hospitals, clinics, and pharmaceutical labs
-
Effective for infection control protocols and quality assurance workflows
Technical Highlights:
Specification Detail Capacity 100 L Sterilization Volume (Chamber) φ440 × H650 mm Working Pressure 0.22 MPa Maximum Working Pressure 0.23 MPa Working Temperature Up to 134 °C Adjustable Temperature Range 105 °C – 134 °C Sterilization Time Range 0 – 99 min Temperature Uniformity ≤ ± 1 °C Power Consumption 2.5 – 4.5 kW Power Supply 220 V, 50 Hz Dimensions (W×D×H) 540 × 560 × 1250 mm Net Weight 85 kg Gross Weight 110 kg Packaging Dimensions 680 × 630 × 1370 mm -
