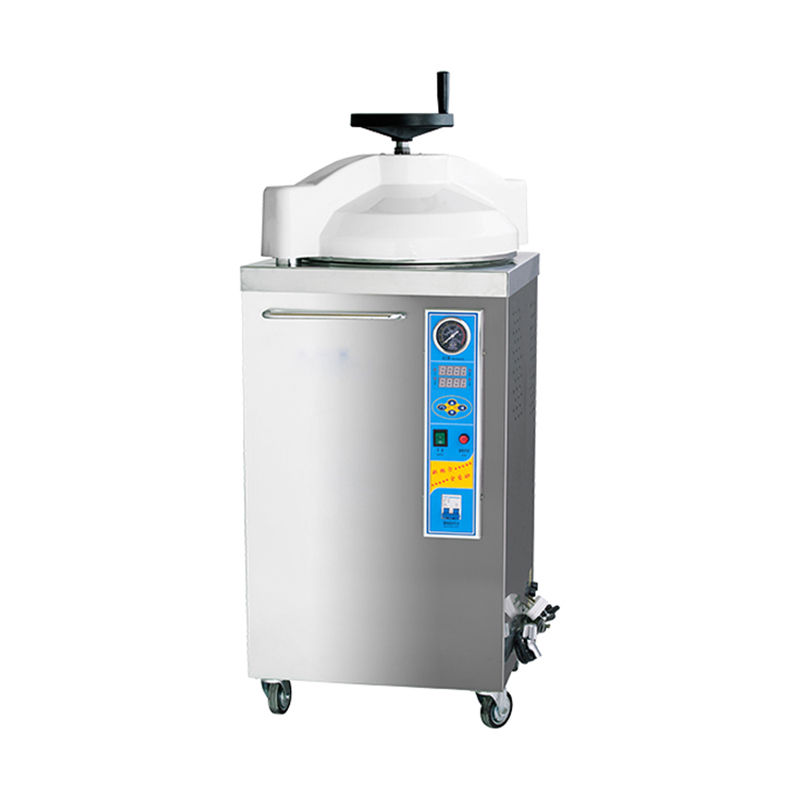

Ro-Chain RC-VAH-B Hand Wheel & Digital Vertical Autoclave series

Ro-Chain RC-VAH-B Hand Wheel & Digital Vertical Autoclave series

Discover the precision and reliability of the Ro-Chain RC-VAH-B Hand Wheel & Digital Vertical Autoclave series, specially designed for medical uses. Winselluma, a trusted distributor, offers this state-of-the-art equipment to ensure optimal sterilization and safety. Our commitment to quality and excellence means you can trust us for all your medical supply needs, backed by robust customer service and support. Invest in superior technology with the confidence that Winselluma delivers top-tier products to healthcare professionals.

  • Product Info

    Usage

    • Vertical steam sterilizer with automatic control program.

    • Structure: Square vertical design, composed of:

      • Shell

      • Sterilization chamber

      • Steam generator

      • Pipeline system

      • Control system

    • Advantages:

      • Attractive appearance and easy operation

      • Safe, energy-saving, and durable

      • Multiple functions with rapid heating

      • Effective sterilization results

    • Applications:

      • Medical and health institutions

      • Laboratories and biological research

      • Food industry

      • Suitable for sterilizing medical equipment, dressings, glassware, solutions, culture media, etc.

    Features

    • Full SUS 304 stainless steel

    • PID microcomputer control for heating, air release, temperature, time, and steam release

    • LED digital display shows sterilization temperature and time

    • Hand wheel quick-open door

    • Double safety interlock system

    • Automatic release on over-pressure

    • Water shortage and over-heating protection

    • Tempered glass anti-scald protection

    • Sound-light alarm when sterilization completes

    • Optional drying function for models ≥75L

    Technical Data

    Model RC-VAH-B Hand Wheel & Digital RC-VAH-B Hand Wheel & Digital RC-VAH-B Hand Wheel & Digital RC-VAH-B Hand Wheel & Digital
    Volume 35L 50L 75L 100L
    Chamber Size (mm) Φ318×420 Φ318×530 Φ388×480 Φ388×630
    Working Temperature 100–134°C 100–134°C 100–134°C 100–134°C
    Max Working Pressure 0.22 MPa 0.22 MPa 0.22 MPa 0.22 MPa
    Time Range 0–9999 min 0–9999 min 0–9999 min 0–9999 min
    Packing Size (cm) 55×54×100 57×55×109 62×62×121 62×62×131
    G.W/N.W (kg) 65/44 73/49 91/71 103/74
    Power AC220V/50Hz/2.5KW AC220V/50Hz/2.5KW AC220V/50Hz/3.5KW AC220V/50Hz/4.0KW

    Key Highlights

    • Compact vertical design, suitable for small to medium laboratories or clinics

    • Microcomputer control and LED display make operation user-friendly and precise

    • Safety measures like double interlock, over-pressure release, and anti-scald tempered glass

    • Optional drying function available for larger volumes (≥75L)

    • Lightweight and portable compared to larger sterilizers
