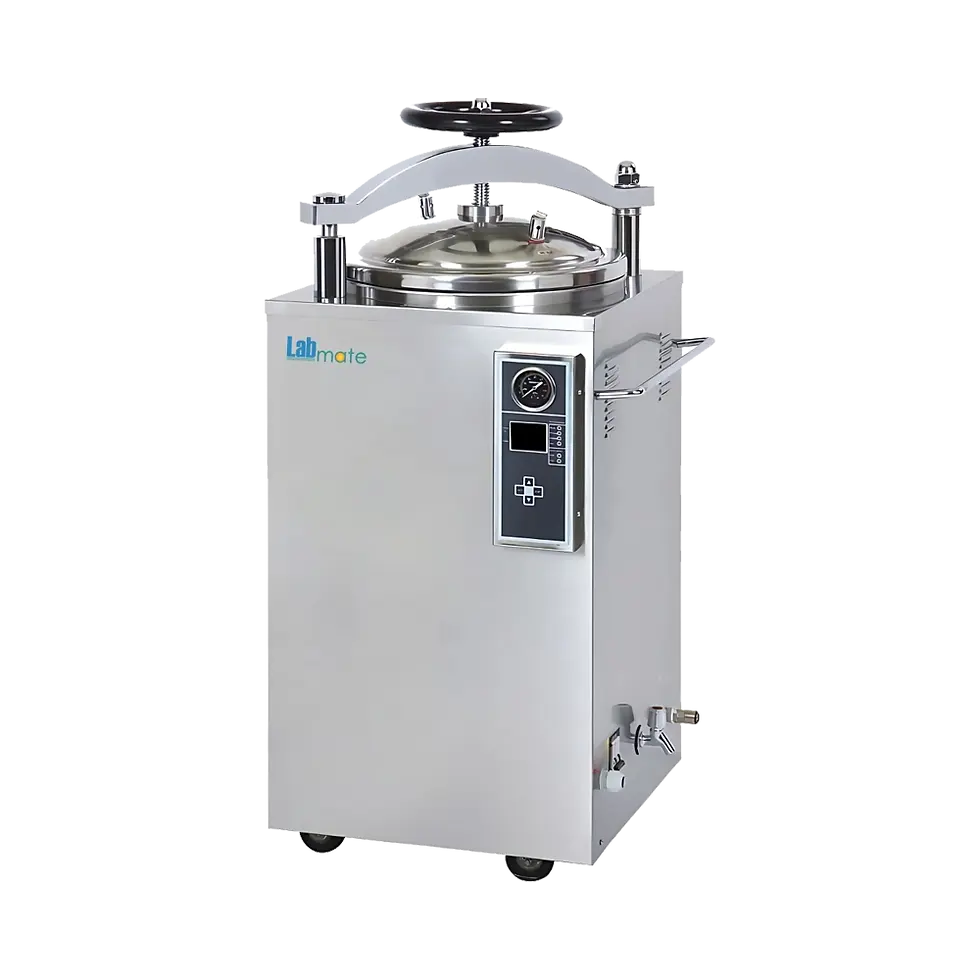

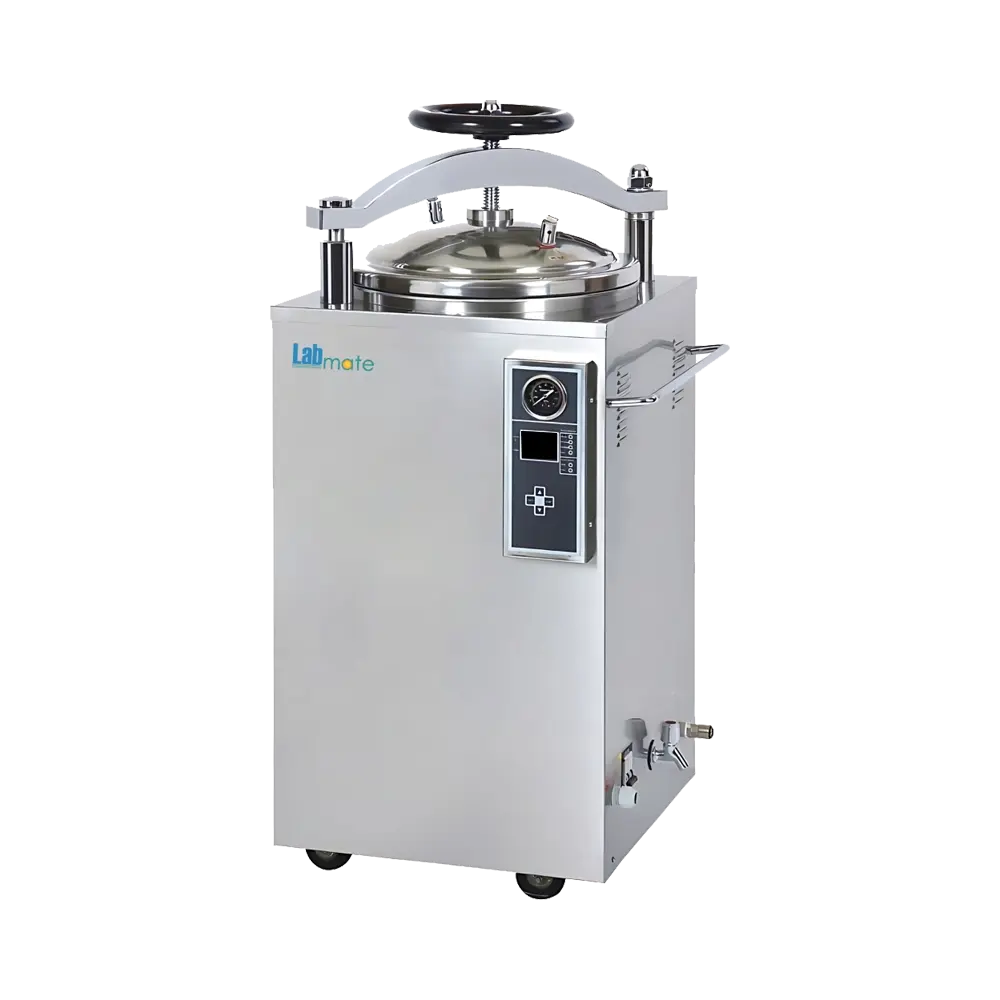

Labmate Vertical Autoclave LMVT‑A202
The Labmate Vertical Autoclave LMVT-A202, available through winselluma, delivers superior sterilization performance with its reliable automatic control systems and robust construction. Designed for laboratories, research institutions, and healthcare facilities, this autoclave ensures efficient sterilization of different types of laboratory equipment. Complementing our business's commitment to quality and exceptional service, the LMVT-A202 stands out for its user-friendly operation and stringent safety standards. Gain peace of mind knowing you're partnering with winselluma, an authorized distributor, for all your sterilization needs.
Product Info
Labmate Vertical Autoclave LMVT‑A202
Overview:
The Labmate Vertical Autoclave LMVT‑A202 is a professional top‑loading steam sterilizer tailored for laboratory, clinical, pharmaceutical, and research environments. With a 75 L stainless steel chamber and intuitive digital control, this upright autoclave provides dependable high‑temperature steam sterilization for instruments, glassware, media vessels, and other heat‑resistant tools. Its vertical design maximizes usable sterilization volume while conserving floor space, and the robust safety systems ensure secure, repeatable operation.
Key Features:
-
75 L High‑Capacity Chamber: Ideal for medium‑to‑large sterilization loads in busy lab settings
-
Intuitive LED Display: Easy‑to‑read interface for real‑time monitoring of temperature, pressure, and cycle time
-
Stainless Steel Construction: Durable, corrosion‑resistant chamber and body built for frequent use and hygienic cleaning
-
Automatic Cool Air & Steam Discharge: Enhances operational safety and comfort by venting air and steam once sterilization completes
-
Advanced Safety Protections: Over‑temperature and over‑pressure safeguards with audible alarm alerts to ensure secure sterilization
-
Handle Door Lock System: Secure hand‑wheel mechanism ensures the chamber remains safely sealed during pressurized cycles
-
User‑Friendly Controls: Simple digital parameters and alarms make it easy to set and monitor sterilization cycles
Applications:
-
Sterilization of surgical, dental, and laboratory instruments
-
Decontamination of glassware, culture media containers, and lab tools
-
Preparation of sterile equipment for clinical, research, and pharmaceutical use
-
Routine sterilization in medical, veterinary, and educational laboratories
-
Suitable for microbiology, quality control, and biotech workflows
Technical Highlights:
Specification Detail Model LMVT‑A202 Capacity 75 L Chamber Size (Diameter × Depth) φ 400 × 600 mm Sterilizing Temperature Range 105 °C – 134 °C Working Temperature 134 °C Working Pressure 0.22 MPa Maximum Working Pressure 0.23 MPa Time Range 0 – 99 min or 0 – 99 h 59 min Heat Accuracy ≤ ± 1 °C Power Consumption 4.5 kW Power Supply 220 V Material (Chamber) Stainless steel Dimensions (W×D×H) 560 × 560 × 1120 mm Net Weight 80 kg Gross Weight 100 kg -
