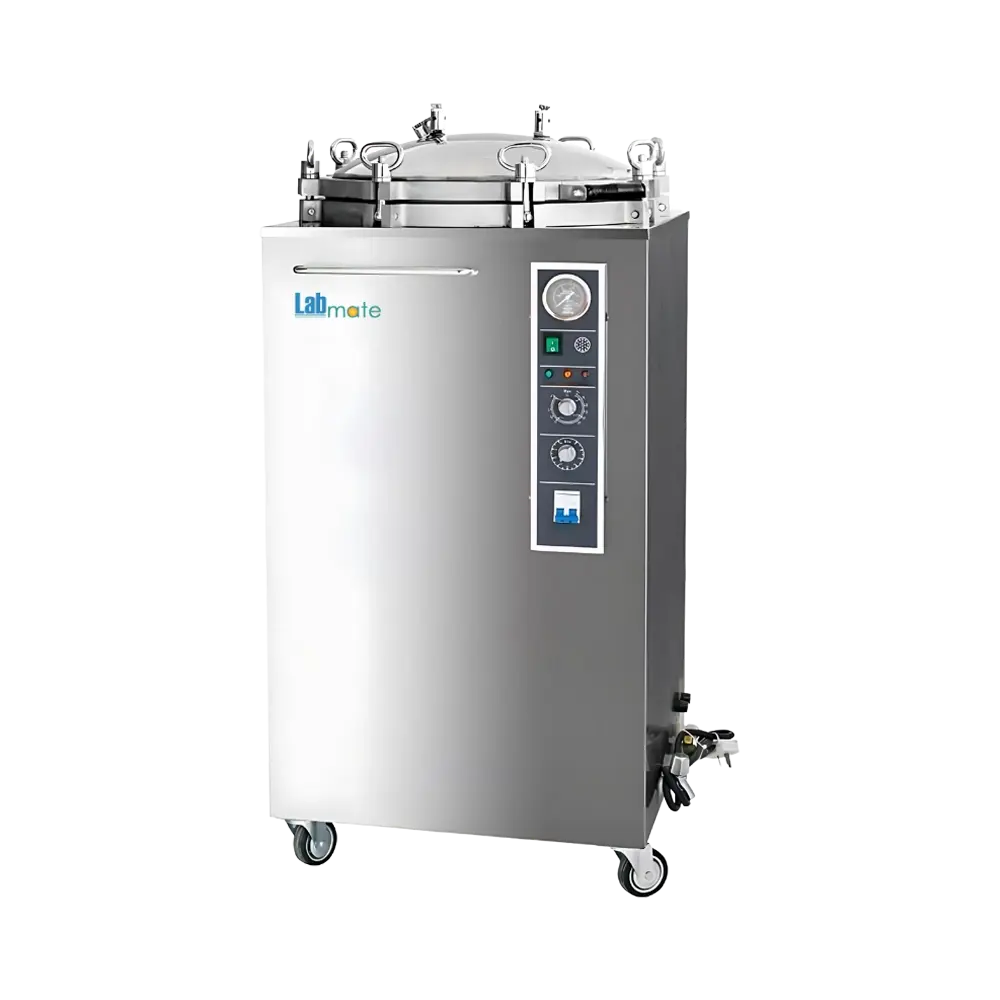

Labmate Vertical Autoclave LMVT‑A103
The Labmate Vertical Autoclave LMVT‑A103 offers efficient and reliable sterilization for laboratory and medical use. Trusted by professionals, the LMVT‑A103 ensures optimal safety and performance. winselluma is an authorized distributor, guaranteeing genuine products and exceptional service. Equip your facility with the best in sterilization technology through winselluma’s trusted distribution network.
Product Info
Labmate Vertical Autoclave LMVT‑A103
Overview:
The Labmate Vertical Autoclave LMVT‑A103 is a high‑capacity, top‑loading steam sterilizer designed for dependable sterilization of laboratory, medical, and clinical equipment. Featuring a large 100 L chamber and efficient energy use, this vertical autoclave delivers consistent high‑temperature steam sterilization for instruments, glassware, media containers, and other heat‑resistant materials. Its upright design saves floor space while the intuitive digital controls and robust safety systems support reliable performance in research labs, hospitals, clinics, and industrial environments.
Key Features:
-
100 L Stainless‑Steel Chamber: Spacious vertical chamber accommodates larger loads for high‑throughput sterilization tasks
-
Digital LED Display: Clear parameter display for easy monitoring of temperature, pressure, and cycle time
-
Microprocessor Control: Intuitive control system for precise, reproducible sterilization results
-
Automatic Cool Air & Steam Discharge: Enhances safety and operator comfort at cycle completion
-
Safety Protections: Built‑in alarms and automatic shut‑off for over‑temperature, pressure, and power failures
-
Dual Sterilizing Baskets: Two sturdy stainless‑steel baskets support organized loading of instruments
-
Durable Construction: Corrosion‑resistant stainless‑steel chamber built for frequent, long‑term use
Applications:
-
Sterilization of surgical, dental, and laboratory instruments
-
Decontamination of glassware, flasks, and culture vessels
-
Preparation of sterile media and tools for clinical and research use
-
Routine sterilization in medical clinics, veterinary labs, and educational facilities
-
Support for microbiology, biotechnology, and pharmaceutical workflows
Technical Highlights:
Specification Detail Model LMVT‑A103 Capacity 100 L Chamber Size (Diameter × Depth) φ 440 × 650 mm Sterilizing Temperature Range 105 °C – 134 °C Working Temperature 134 °C Working Pressure 0.22 MPa Maximum Working Pressure 0.23 MPa Time Range 0 – 60 min Heat Accuracy ≤ ± 1 °C Power Consumption 4.5 kW Power Supply 220 V Material (Chamber) Stainless steel Dimensions (W×D×H) 590 × 590 × 1080 mm Net Weight 85 kg Gross Weight 105 kg -
