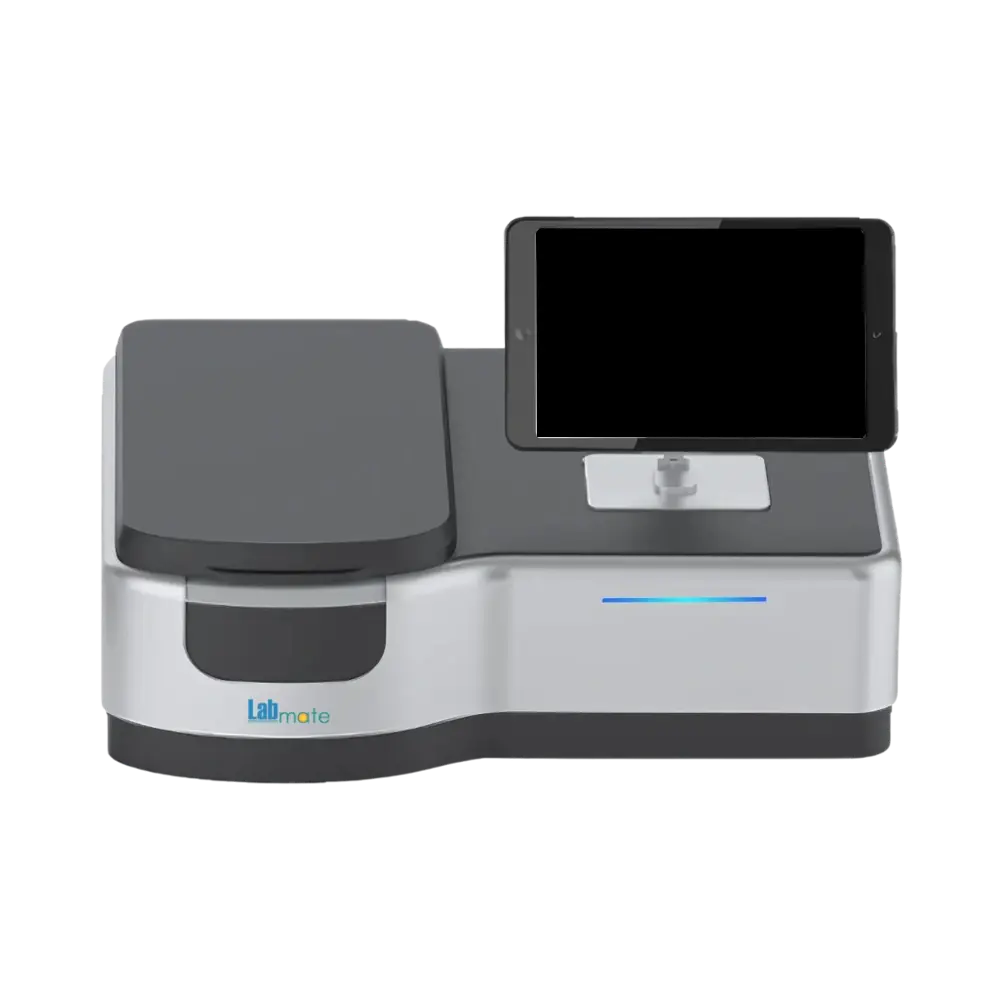

Labmate Split Beam UV-Vis Spectrophotometer LMUS-D100
Labmate Split Beam UV-Vis Spectrophotometer LMUS-D100 operates across a wavelength range of 190 to 1100 nm. It features a split-beam optical system with 1200 lines/mm grating for accurate baseline correction and stable measurements. Designed with 2 nm spectral bandwidth, it is ideal for routine and research-grade absorbance and transmittance evaluations. Labmate LMUS-D100 incorporates deuterium and tungsten lamps for extended UV and visible light coverage and an 11-inch touchscreen for intuitive operation and data management.
Product Info
Key Features
-
Wavelength range: 190 – 1100 nm
-
Spectral bandwidth: 2 nm
-
Split-beam optical system, 1200 lines/mm grating
-
Wavelength accuracy: ±0.1 nm at 656.1 nm, ±0.3 nm at other wavelengths
-
Wavelength repeatability: ≤0.1 nm
-
Photometric range: 0 – 400% T, –4 to +4 A
-
Photometric accuracy: ±0.2% T, ±0.0005–0.0008 A
-
Photometric repeatability: ≤0.15% T, 0.0004–0.0006 A
-
Resolution: 0.00001 Abs
-
Stray light: ≤0.03% T at 220/360 nm
-
Stability: ±0.0001 A
-
Noise: 0.0005 A at 500 nm
-
Detector: Imported silicon photodiode
-
Light source: Deuterium and tungsten lamps
-
Work modes: T, A, C, E
-
Scanning speed: High, Medium, Low (max 6000 nm/min)
-
10 mm 4-cell cuvette holder
-
Output: Cloud connectivity, Email, SMS, Bluetooth, Wi-Fi
-
Display: 11-inch touchscreen
-
Power: AC 110–220 V, 50/60 Hz
-
Package dimension: 810 × 660 × 390 mm
-
Gross weight: 27 kg
Standard Accessories
Model No. Accessory LMUS-D100-G1 10 mm Glass cuvette LMUS-D100-Q1 10 mm Quartz cuvette LMUS-D100-P1 Power cord Optional Accessories
Model No. Accessory LMUS-D100-G2 5 mm Glass Cuvette LMUS-D100-G3 10 mm Glass Cuvette LMUS-D100-G4 20 mm Glass Cuvette LMUS-D100-G5 30 mm Glass Cuvette LMUS-D100-G6 50 mm Glass Cuvette LMUS-D100-G7 100 mm Glass Cuvette LMUS-D100-Q2 5 mm Quartz Cuvette LMUS-D100-Q3 10 mm Quartz Cuvette LMUS-D100-Q4 20 mm Quartz Cuvette LMUS-D100-Q5 30 mm Quartz Cuvette LMUS-D100-Q6 50 mm Quartz Cuvette LMUS-D100-Q7 100 mm Quartz Cuvette LMUS-D100-QM1 0.35/0.7/1.0/1.4/1.7 ml Quartz Micro-Cuvette LMUS-D100-QM2 50/100/200 µl Quartz Micro-Cuvette LMUS-D100-GM1 0.35/0.7/1.0/1.4/1.7 ml Glass Micro-Cuvette LMUS-D100-GM2 50/100/200 µl Glass Micro-Cuvette LMUS-D100-H1 10 mm Manual 4-cell Holder LMUS-D100-H2 50 mm Manual 4-cell Holder LMUS-D100-H3 100 mm Manual 4-cell Holder LMUS-D100-S1 10 mm Single-hole Cell Holder LMUS-D100-SH1 50 mm Single-hole Long-path Cell Holder LMUS-D100-SH2 100 mm Single-hole Long-path Cell Holder LMUS-D100-A1 Auto 8-cell/4-cell/5-cell Holder LMUS-D100-F1 Film Holder LMUS-D100-R1 Tube Rack LMUS-D100-M1 Adjustable XY Micro Cell Holder LMUS-D100-PS1 Peltier/Sipper System LMUS-D100-I1 Integrating Sphere LMUS-D100-T1 Tungsten Lamp LMUS-D100-X1 Xenon Lamp LMUS-D100-TP1 Thermal Printer LMUS-D100-TP2 Built-in Thermal Printer LMUS-D100-PC1 PC Software LMUS-D100-CF1 21 CFR Software Applications
Labmate LMUS-D100 is suitable for pharmaceutical quality control, biological research, environmental monitoring, food testing, and general scientific laboratories requiring accurate absorbance and concentration measurements.-
