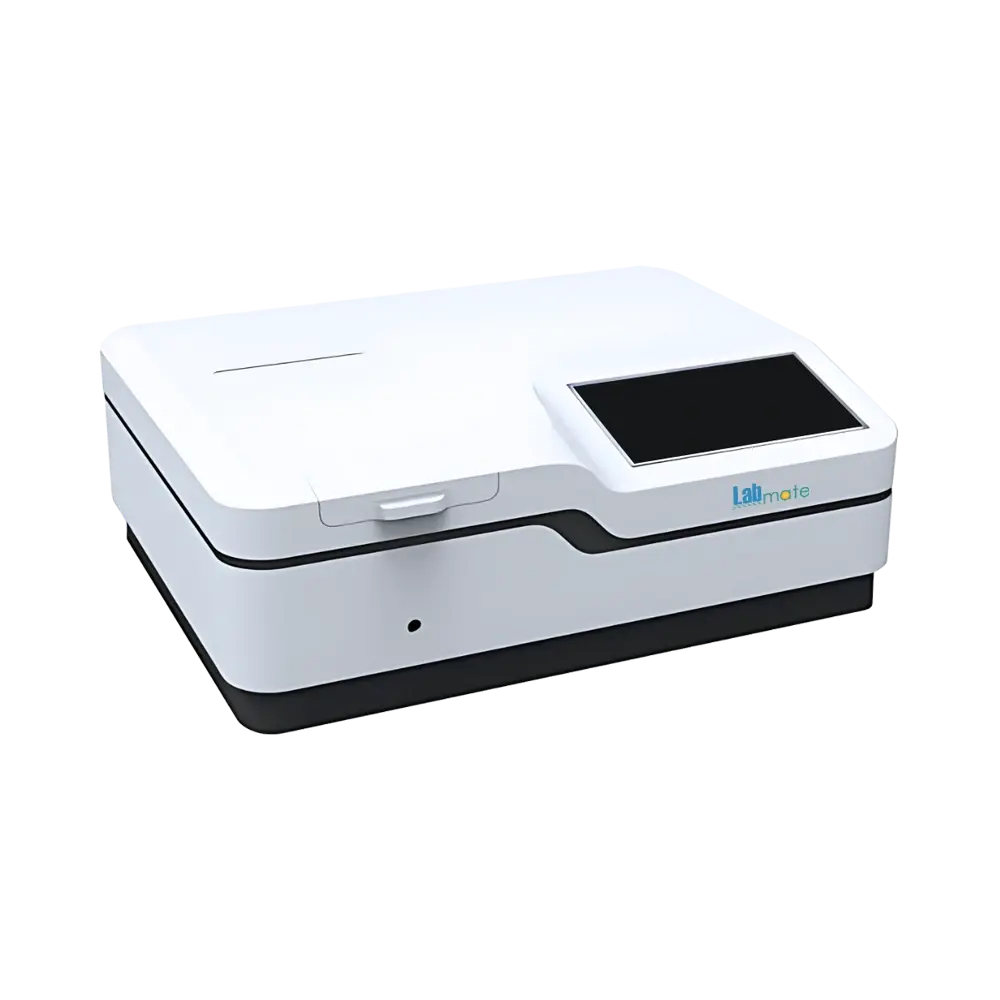

Labmate Single Beam UV/Visible Spectrophotometer LMUS-B100
Labmate Single Beam UV/Visible Spectrophotometer LMUS-B100 offers high spectral resolution with a 2 nm bandwidth and operates over a wavelength range of 190 nm to 1100 nm. Its single-beam optical system with 1200 lines/mm grating ensures consistent light distribution, while automatic wavelength setting and multiple measurement modes provide versatile sample testing. Equipped with silicon photodiode detector, deuterium and tungsten lamps, and a 10.1-inch color touchscreen, it delivers precise, low-noise measurements with excellent photometric stability. Ideal for research, clinical, industrial, and educational laboratories.
Product Info
Key Features
-
Wavelength range: 190 nm – 1100 nm
-
Spectral bandwidth: 2 nm
-
Single beam optical system with 1200 lines/mm grating
-
Automatic wavelength setting
-
Multiple measurement modes: T, A, C, E
-
Silicon photodiode detector
-
Deuterium and tungsten lamps
-
High photometric stability, low stray light, and noise
-
10.1-inch color touchscreen interface
-
Scanning speed: High, Medium, Low (up to 3000 nm/min)
-
Manual 4-cell cuvette holder
-
USB drive, USB host, and RS232 output
-
Energy-efficient operation
-
In-house massive memory for data storage
Technical Highlights
Specification Details Wavelength Range 190 nm – 1100 nm Spectral Bandwidth 2 nm Optical System Single Beam, Grating 1200 lines/mm Wavelength Accuracy ±0.1 nm at 656.1 nm, ±0.3 nm at other wavelengths Wavelength Repeatability ≤0.1 nm Wavelength Setting Automatic Photometric Range 0 – 200% T, –0.3 to 3 A, 0 – 9999 C Photometric Accuracy ±0.2% T (0–100% T), ±0.002A (0–0.5 A), ±0.004A (0.5–1 A) Photometric Repeatability ≤0.15% T (0–100% T), 0.001A (0–0.5 A), 0.002A (0.5–1 A) Stray Light ≤0.03% T (220/360 nm) Stability ±0.0005 A/h at 500 nm Baseline Flatness ±0.002 A Noise 0.0005 A at 500 nm Detector Silicon Photodiode Light Source Deuterium and Tungsten Lamp Work Mode T (Transmittance), A (Absorbance), C (Concentration), E (Energy) Scanning Speed High, Medium, Low (Max. 3000 nm/min) Cuvette Holder 10 mm Manual 4-cell holder Output USB drive, USB host, RS232 Display 10.1-inch Color Touchscreen Power Supply AC 110–220 V, 50–60 Hz Package Dimension 810 × 660 × 390 mm Gross Weight 27 Kg Standard Accessories
-
10 mm Glass Cuvette
-
10 mm Quartz Cuvette
-
Power Cord
-
PC Software
Optional Accessories
Includes various glass and quartz cuvettes (5–100 mm), micro-cuvettes, multiple cell holders (manual and auto), film holder, tube rack, adjustable XY micro cell holder, Peltier/Sipper system, integrating sphere, tungsten/deuterium/xenon lamps, thermal printers, PC software, and 21 CFR software.Applications
Ideal for photometric measurement, quantitative analysis, kinetics, spectrum scanning, DNA/protein analysis, and multi-wavelength testing in research, clinical, industrial, and educational laboratories.-
