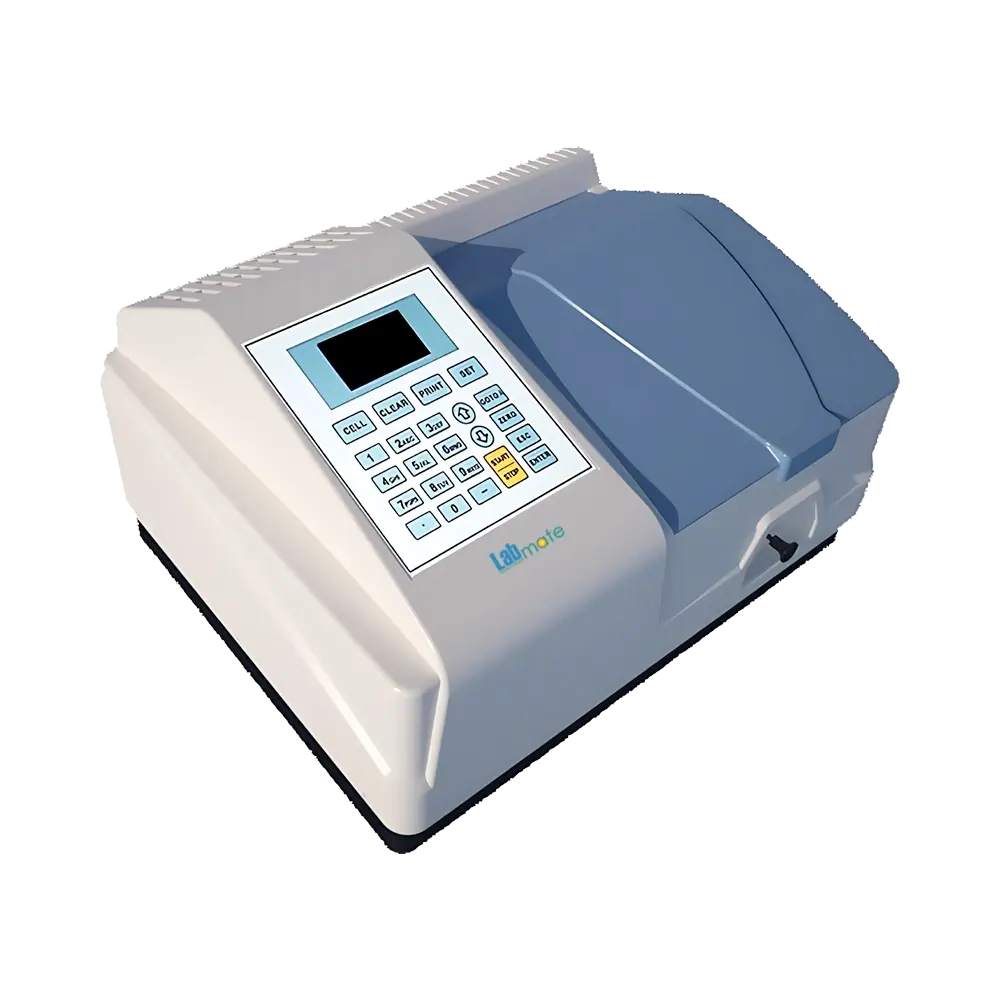

Labmate Single Beam UV/Visible Spectrophotometer LMUS-A304
Labmate Single Beam UV/Visible Spectrophotometer LMUS-A304 operates across a wavelength range of 190 nm to 1100 nm with a spectral bandwidth of 2 nm. It features an automatic wavelength setting and replaceable pre-aligned tungsten and deuterium lamps for consistent and reliable performance. Equipped with a silicon photodiode detector and graphic LCD display, it provides accurate, low-noise measurements with minimal stray light. The sample compartment accommodates 5–100 mm path-length cuvettes, making it ideal for pharmaceuticals, environmental analysis, chemical industries, quality control, and research laboratories.
Product Info
Key Features
-
Wavelength range: 190 nm – 1100 nm
-
Spectral bandwidth: 2 nm
-
Automatic wavelength setting
-
Replaceable pre-aligned tungsten and deuterium lamps
-
Low noise and low stray light
-
USB / RS232 data output
-
Optical PC scanning software
-
Graphic LCD display
-
Optional Auto 8-cell holder
Applications
Suitable for pharmaceutical testing, environmental analysis, chemical research, quality control, and laboratory experiments.Technical Highlights
Specification Details Wavelength Range 190 nm – 1100 nm Spectral Bandwidth 2 nm Optical System Single Beam, Grating 1200 lines/mm Wavelength Accuracy ±0.8 nm Wavelength Repeatability ≤0.3 nm Wavelength Setting Automatic Photometric Range 0 – 200 % T, -0.3 ~ 3 A, 0 – 9999 C Photometric Setting ±0.002 A (0–0.5 A), ±0.004 A (0.5–1 A), ±0.5 % T (0–100 % T) Photometric Repeatability ≤0.001 A (0–0.5 A), ≤0.002 A (0.5–1 A), ≤0.2 % T (0–100 % T) Detector Silicon Photodiode Light Source Tungsten Lamp and Deuterium Lamp Stray Light ≤0.1 % T (220/360 nm) Stability ±0.002 A/h at 500 nm Noise ≤0.2 % T/3 min (250/500 nm, 0 % T); ≤0.5 % T/3 min (250/500 nm, 100 % T) Baseline Flatness ±0.003 A Sample Compartment Accommodates 5–100 mm path-length cuvette Display Graphic LCD (128 x 64 Dots) Keypad 22-key Alphanumeric Membrane Keypad Power Supply AC 90–250 V, 50 / 60 Hz Dimension 490 × 390 × 280 mm Net Weight 18 Kg Optional Accessories
Model No Specification A01 1 or 4-Cell Holder (5–100 mm Cuvette) A02 1 or 4-Cell Water-jacketed Cell Holder A03 All kinds of Glass and Quartz Cuvettes A04 Micro Cell Holder and Micro Cuvette A05 Auto 5, 8-Cell Holder (10 mm Cuvette) A06 Auto 4, 6-Cell Holder (5–100 mm Cuvette) A07 Thin Solid and Film Holder A08 Test Tube Holder A09 Tungsten Lamp and Deuterium Lamp A10 Peltier and Sipper System A11 Mini Thermal Printer A12 Reflectance Measurement Attachment A13 Integrating Sphere Accessory -
