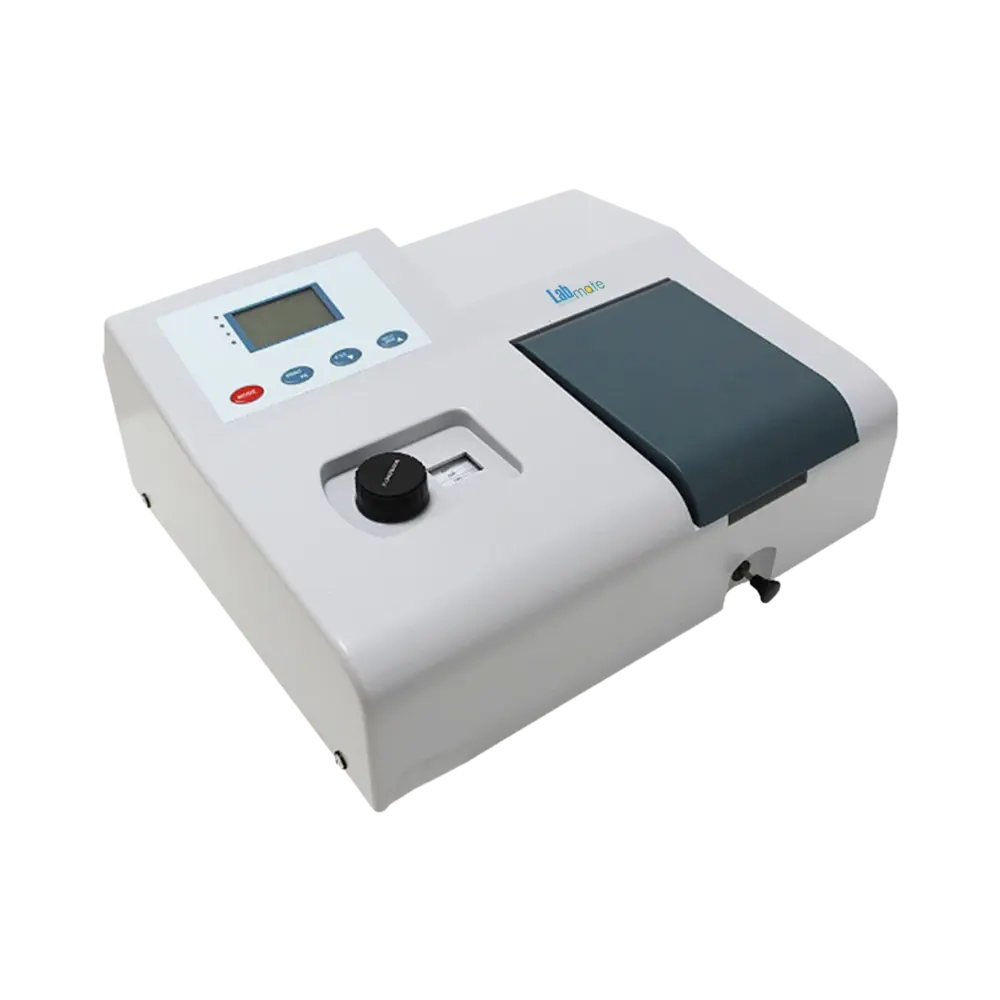

Labmate Single Beam UV/Visible Spectrophotometer LMUS-A200
Single Beam UV/Visible Spectrophotometer LMUS-A200 operates across 195 nm to 1020 nm for UV and visible light analysis. It features a single-beam optical system with 1200 lines/mm grating, 5 nm spectral bandwidth, and automatic wavelength setting. Dual light sources (Tungsten and Deuterium lamps) provide stable illumination, while the integrated silicon photodiode ensures reliable detection. The 4-inch LCD display allows easy viewing and data interpretation.
Product Info
Specifications
Parameter Specification Wavelength Range 195 – 1020 nm Spectral Bandwidth 5 nm Optical System Single Beam, Grating 1200 lines/mm Wavelength Accuracy ±2 nm Wavelength Repeatability 1 nm Wavelength Setting Automatic Photometric Range 0 – 200% T, –0.3 to 3 A Photometric Setting ±0.5% T Photometric Repeatability 0.2% T Detector Silicon Photodiode Light Source Tungsten Lamp and Deuterium Lamp Stray Light 0.3% T Stability 0.002 A/h at 500 nm Data Output RS232 port Noise ±0.001 A Baseline Flatness ±0.002 A Display 4-inch LCD Power Supply AC 110/220 V, 50/60 Hz Dimensions 420 × 350 × 200 mm Net Weight 10 kg Gross Weight 12 kg Features
-
Single Beam Optical System
-
Uniform Photometric Levels
-
Low Stray Light
-
RS232 Port Interface
-
Efficient Power Supply
-
Compact Design
-
Enhanced Baseline Flatness
Standard Accessories
Accessory Quantity Unit Power Cable 1 piece Cuvettes 1 piece Cleaning Cloth 1 piece Deuterium Lamp 1 piece Tungsten Lamp 1 piece RS232 Communication Cable 1 piece Applications
Single Beam UV/Visible Spectrophotometer LMUS-A200 is used for analyzing protein concentrations, measuring absorbance of DNA and RNA samples, and performing molecular biology research.
-
