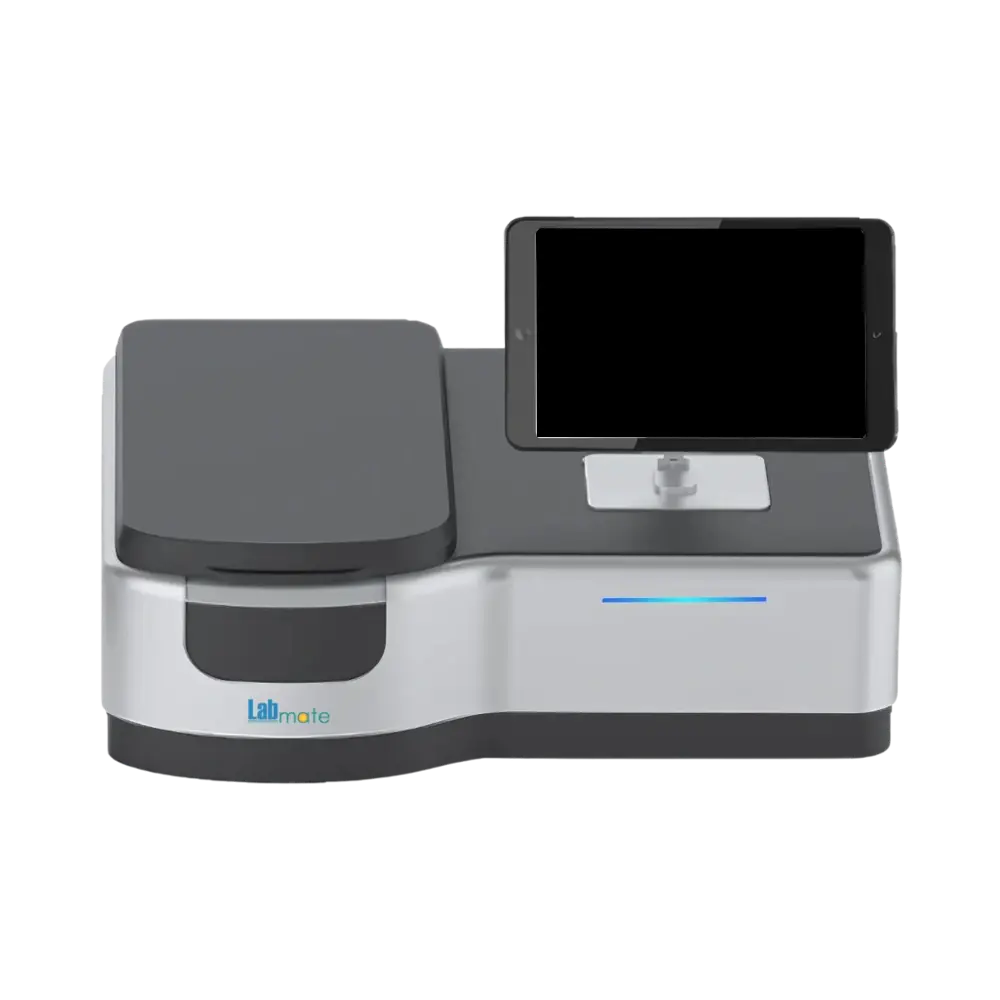

Labmate Single Beam UV/Visible Spectrophotometer LMUS-A103
Single Beam UV/Visible Spectrophotometer LMUS-A103 offers broad-spectrum analysis from 190 nm to 1100 nm. It features a single-beam optical system with 1200 lines/mm grating and configurable spectral bandwidths (0.1–5 nm) for both routine and advanced measurements. Dual light sources (deuterium and tungsten lamps) provide stable illumination across UV and visible ranges. Its 11-inch touch display, rapid scanning, and multi-mode operation enable efficient and precise analysis.
Product Info
Specifications
Parameter Specification Wavelength Range 190 – 1100 nm Spectral Bandwidth 0.1, 0.2, 0.5, 1, 2, 4, 5 nm Optical System Single Beam, Grating 1200 lines/mm Wavelength Accuracy ±0.1 nm at 656.1 nm, ±0.3 nm at other wavelengths Wavelength Repeatability ≤0.1 nm Photometric Range 0 – 400% T, –4 – +4 A Photometric Accuracy ±0.2% T (0–100% T), ±0.0005–0.0008 A Photometric Repeatability ≤0.15% T, 0.0004–0.0006 A Resolution 0.00001 Abs Stray Light ≤0.03% T (220 / 360 nm) Stability ±0.0001 A Baseline Flatness ±0.0004 A Noise 0.0005 A at 500 nm Detector Imported Silicon Photodiode Light Source Deuterium and Tungsten lamps Work Modes T, A, C, E Scanning Speed High, Medium, Low (Max. 6000 nm/min) Cuvette Holder 10 mm 4-cell holder Data Output Cloud, Email, SMS, Bluetooth, Wi-Fi Display 11-inch Touch Screen Power Supply AC 110–220 V, 50/60 Hz Package Dimension 880 × 690 × 520 mm Gross Weight 45 kg Features
-
11-inch touch screen
-
Imported silicon photodiode detector
-
Rapid scanning speed
-
Multiple working modes
-
Real-time data sending
-
Bluetooth 3.0 enabled
Standard Accessories
Model No Accessory LMUS-A103-G1 10 mm Glass Cuvette LMUS-A103-Q1 10 mm Quartz Cuvette LMUS-A103-P1 Power Cord Optional Accessories
Model No Accessory LMUS-A103-G2 5 mm Glass Cuvette LMUS-A103-G3 10 mm Glass Cuvette LMUS-A103-G4 20 mm Glass Cuvette LMUS-A103-G5 30 mm Glass Cuvette LMUS-A103-G6 50 mm Glass Cuvette LMUS-A103-G7 100 mm Glass Cuvette LMUS-A103-Q2 5 mm Quartz Cuvette LMUS-A103-Q3 10 mm Quartz Cuvette LMUS-A103-Q4 20 mm Quartz Cuvette LMUS-A103-Q5 30 mm Quartz Cuvette LMUS-A103-Q6 50 mm Quartz Cuvette LMUS-A103-Q7 100 mm Quartz Cuvette LMUS-A103-QM1 0.35/0.7/1.0/1.4/1.7 ml Quartz Micro-Cuvette LMUS-A103-QM2 50/100/200 µl Quartz Micro-Cuvette LMUS-A103-GM1 0.35/0.7/1.0/1.4/1.7 ml Glass Micro-Cuvette LMUS-A103-GM2 50/100/200 µl Glass Micro-Cuvette LMUS-A103-H1 10 mm Manual 4-cell Holder LMUS-A103-H2 50 mm Manual 4-cell Holder LMUS-A103-H3 100 mm Manual 4-cell Holder LMUS-A103-S1 10 mm Single-hole Cell Holder LMUS-A103-SH1 50 mm Single-hole long-path Cell Holder LMUS-A103-SH2 100 mm Single-hole long-path Cell Holder LMUS-A103-A1 Auto 8-cell/4-cell/5-cell Holder LMUS-A103-F1 Film Holder LMUS-A103-R1 Tube Rack LMUS-A103-M1 Adjustable XY Micro Cell Holder LMUS-A103-PS1 Peltier/Sipper System LMUS-A103-I1 Integrating Sphere LMUS-A103-T1 Tungsten Lamp LMUS-A103-X1 Xenon Lamp LMUS-A103-TP1 Thermal Printer LMUS-A103-TP2 Built-in Thermal Printer LMUS-A103-PC1 PC Software LMUS-A103-CF1 21 CFR Software Applications
Single Beam UV/Visible Spectrophotometer LMUS-A103 is suitable for quantitative and qualitative analysis in pharmaceuticals, life sciences, environmental monitoring, chemical research, food testing, and academic laboratories.
-
