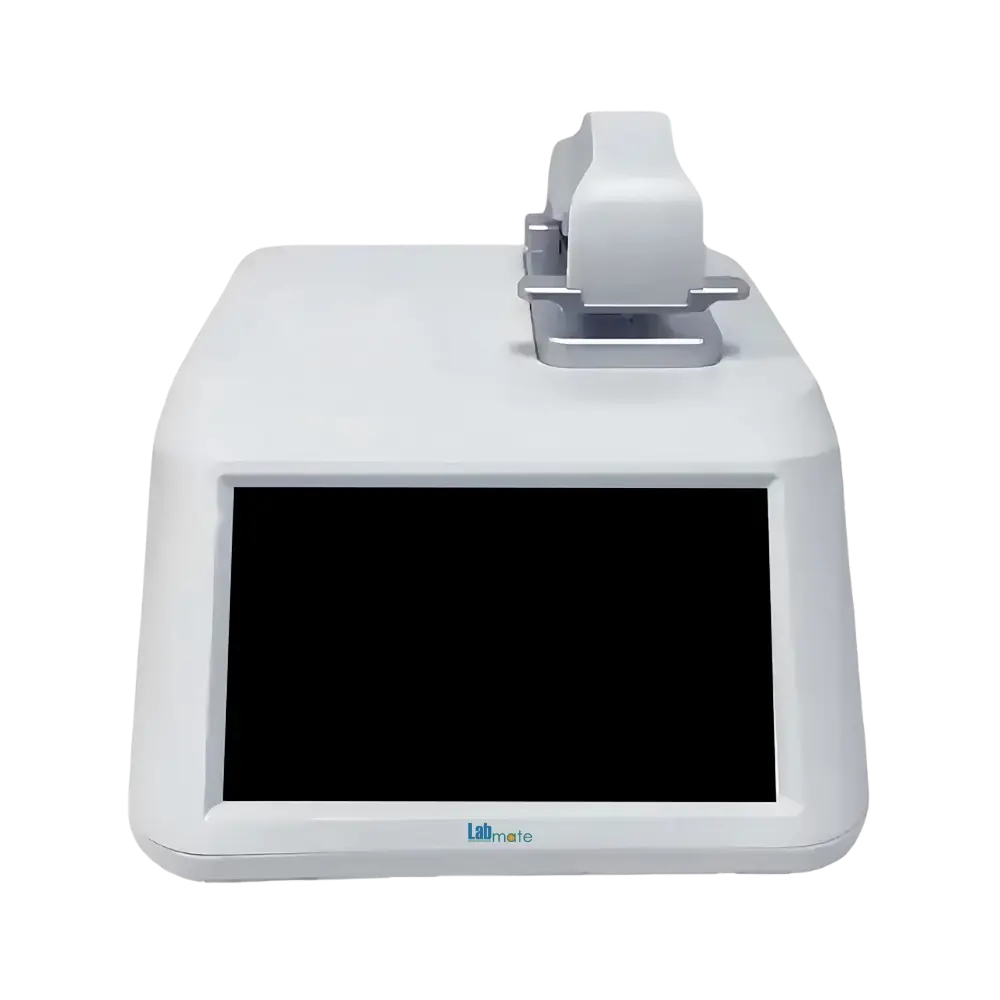

Labmate Nano Spectrophotometer LMNS-A100
Labmate Nano Spectrophotometer LMNS-A100 is a high-precision, micro-volume spectrophotometer designed for rapid and accurate analysis of nucleic acids and proteins. It features a wavelength range of 180–910 nm and requires only 0.5–2.0 µL of sample. The instrument incorporates a long-life xenon flash lamp, high-resolution 7-inch touchscreen, and user-friendly interface for efficient operation and reliable data output.
Product Info
Key Features
-
Ultra-low sample volume: 0.5–2.0 µL for minimal sample consumption
-
Broad wavelength range: 180–910 nm for UV–Vis analysis
-
High absorbance precision: 0.002 Abs for reproducible results
-
Fast measurement: <6 seconds per sample
-
7-inch touchscreen with intuitive controls
-
Cuvette slot for traditional sample compatibility
-
USB output for easy data transfer
-
No dilution required for high-concentration samples
Technical Specifications
Specification Details Sample Volume Range 0.5–2.0 µL Wavelength Range 180–910 nm Wavelength Accuracy ±1 nm Absorbance Range 0.02–300 Abs Absorbance Precision 0.002 Abs Protein Detection BSA: 400 mg/mL, IgG: 290 mg/mL Measurement Time <6 seconds Light Source Xenon Flash Lamp Path Length 0.05 mm, 0.2 mm, 1.0 mm Spectral Resolution ≤1.5 nm Power Consumption 48 W Power Adaptor 12 V, 4 A Dimensions (W×D×H) 270×210×196 mm Weight 3.5 Kg Applications
Labmate Nano Spectrophotometer LMNS-A100 is ideal for nucleic acid and protein quantification in molecular biology, biotechnology, pharmaceutical development, clinical diagnostics, and environmental studies.Selection Guide
LMNS-A100 is engineered for laboratories requiring precise, high-throughput micro-volume analysis. Its wide wavelength range allows UV–Vis applications, including DNA, RNA, and protein assays. The ultra-low sample volume minimizes waste, while high absorbance accuracy ensures reproducibility. Suitable for regulated environments, it meets ISO and GLP standards, making it a reliable instrument for research-grade and clinical laboratories. Its rapid measurement time, touchscreen interface, and USB connectivity streamline workflows in high-demand settings.-
