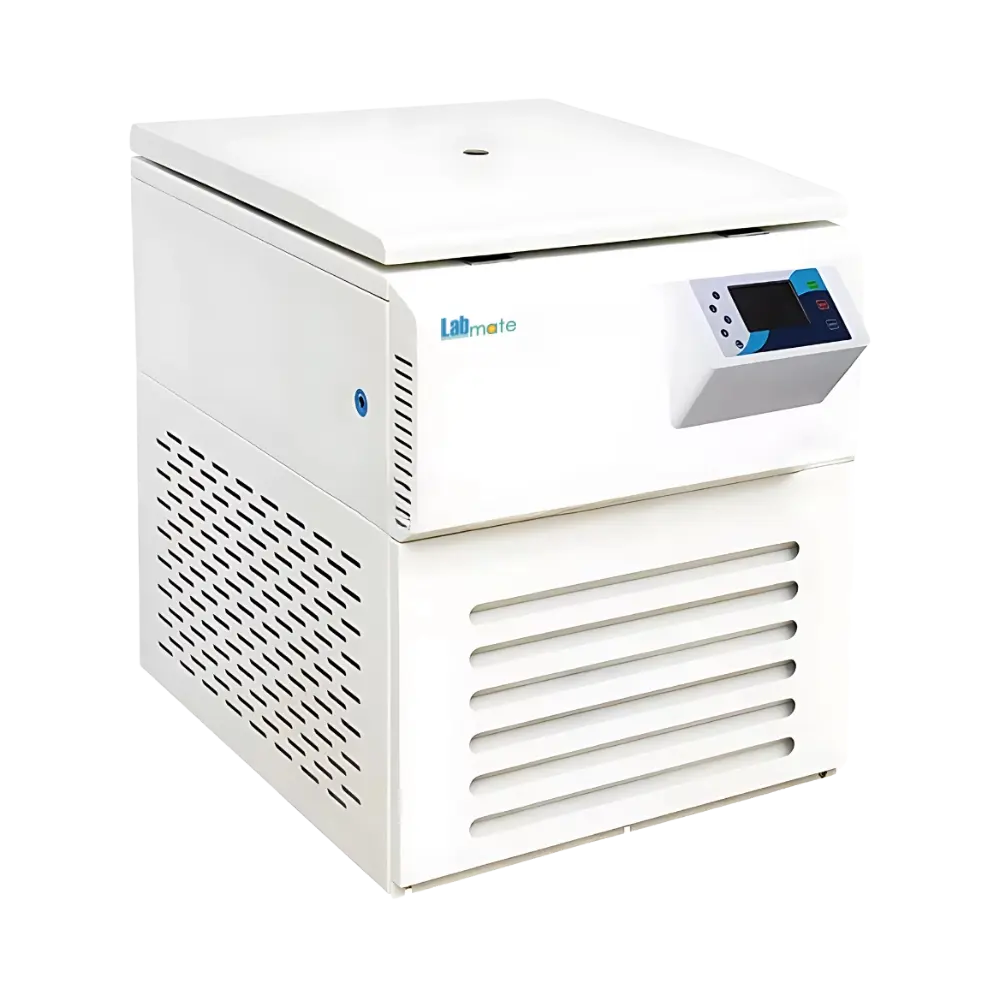

Labmate Low Speed Refrigerated Centrifuge B104

Labmate Low Speed Refrigerated Centrifuge B104

Overview
The Labmate Low Speed Refrigerated Centrifuge B104 is a high-capacity, temperature-controlled centrifuge engineered for demanding laboratory environments. Designed to support large-volume biological and clinical workflows, it combines powerful centrifugal force, precise refrigeration, advanced safety systems, and intuitive touch-screen operation to ensure reliable and efficient sample processing.

Key Features

• High-performance refrigerated centrifugation: Operates at speeds up to 8,000 rpm, delivering a maximum RCF of 14,550 × g for effective separation of blood components, cells, and other biological materials.

• Exceptional sample capacity: Accommodates up to 8 × 2,000 mL vessels or 16 × 500 mL blood bags, making it ideal for blood banks and high-throughput laboratories.

• Wide temperature control range: Maintains stable cooling from −20 °C to 40 °C to protect temperature-sensitive samples throughout centrifugation.

• Extended run capability: Programmable timer from 1 min to 9 h 59 min supports long and complex centrifugation protocols.

• Touch-screen control interface: Microprocessor-controlled LCD touch panel allows intuitive operation, real-time monitoring, and storage of up to 100 user-defined programs.

• Comprehensive safety protection: Includes automatic lid locking, imbalance detection, over-speed and over-temperature protection, and soft acceleration/deceleration profiles.

• Reliable drive & cooling system: Brushless frequency motor and high-efficiency, CFC-free refrigeration system ensure stable performance with reduced noise and maintenance.

Technical Specifications

Specification	Details
Maximum Speed	8,000 rpm
Maximum Relative Centrifugal Force (RCF)	14,550 × g
Maximum Capacity	8 × 2,000 mL or 16 × 500 mL blood bags
Temperature Range	−20 °C to 40 °C
Temperature Accuracy	± 1 °C
Timer Range	1 min to 9 h 59 min
Display	LCD touch screen
Speed Accuracy	± 20 r/min
Noise Level	≤ 65 dB
Power Supply	AC 220 V / 380 V, 50/60 Hz
Dimensions (L × W × H)	940 × 890 × 1,000 mm
Net Weight	~600 kg

Rotor & Adapter Options

The Labmate B104 supports multiple rotor configurations for flexible processing of large-volume samples and blood products:

Swing Rotors

• SR-01: 8 × 2,000 mL at 4,000 rpm (~5,710 × g)

• SR-02: 6 × 2,400 mL at 4,000 rpm (~5,330 × g)

• SR-03: 2 × 6 × 1,000 mL at 4,200 rpm (~14,550 × g)

Angle Rotor

• AR-01: 6 × 1,000 mL at 8,000 rpm (~5,680 × g)

Applications

The Labmate Low Speed Refrigerated Centrifuge B104 is ideally suited for:

• Clinical diagnostics & blood banks — refrigerated processing of whole blood, plasma, and cellular components.

• Pharmaceutical & biotechnology laboratories — temperature-controlled separation of sensitive biological materials.

• High-volume sample preparation — efficient processing of large batches and multiple containers simultaneously.

• General research laboratories requiring precise temperature regulation, high capacity, and advanced operational control.

With its outstanding capacity, accurate temperature management, and advanced control and safety features, the Labmate B104 is a dependable solution for laboratories requiring robust, large-scale refrigerated centrifugation.
