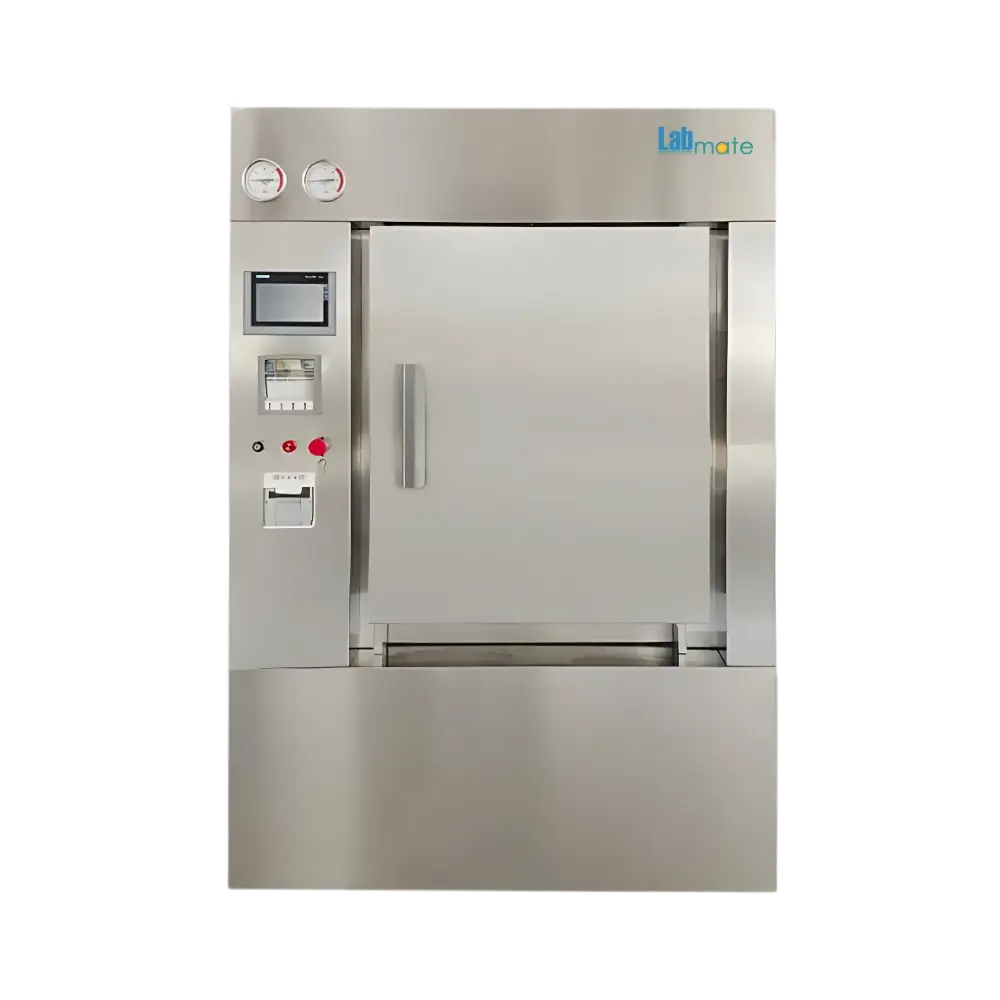

Labmate Horizontal Pulse Vacuum Sterilizer LMPVS‑A121
Introducing the Labmate Horizontal Pulse Vacuum Sterilizer LMPVS‑A121, an advanced sterilization solution perfect for pharmaceutical, medical, and laboratory applications. Designed for efficiency and reliability, this sterilizer employs pulse vacuum technology to ensure thorough sterilization of all your instruments and materials. As an authorized distributor, winselluma guarantees authenticity, exceptional service, and expert support for all your sterilization needs. Trust winselluma to provide high-quality laboratory equipment that meets the highest standards of safety and performance. Make the right choice with our authorized distribution of the Labmate LMPVS‑A121.
Product Info
Labmate Horizontal Pulse Vacuum Sterilizer LMPVS‑A121
Overview:
The Labmate Horizontal Pulse Vacuum Sterilizer LMPVS‑A121 is a high-capacity steam sterilization system designed for demanding workflows in laboratories, clinical facilities, pharmaceutical production sites, and industrial research environments. Featuring a spacious 2.5 m³ chamber and advanced pulse vacuum steam technology, it efficiently removes trapped air and enables deep steam penetration for uniform sterilization of instruments, glassware, media, and equipment. Its robust stainless-steel construction, intuitive controls, and reliable performance make it ideal for high-throughput sterilization needs.Key Features:
-
Large 2.5 m³ chamber for high-volume sterilization operations
-
Pulse vacuum steam technology ensures efficient air removal and deep steam penetration
-
Microcomputer control system with multiple sterilization modes
-
Colour touchscreen interface for intuitive operation
-
Double-door structure for secure and easy access
-
Multi-stage heating with multi-channel steam intake for consistent temperature distribution
-
Vacuum detection function for enhanced cycle monitoring
-
Durable stainless-steel construction with advanced welding and polishing for long-lasting use
Applications:
-
Sterilization of surgical instruments, medical devices, and reusable tools
-
Decontamination of laboratory glassware and metal components
-
Preparation of sterile culture media and biological materials
-
Routine sterilization in clinical, pharmaceutical, and research labs
-
High-throughput sterilization in industrial R&D and quality control environments
Technical Highlights:
Specification Details Chamber Volume 2.5 m³ Design Temperature 144 °C Sterilization Temperature Range 105 °C – 139 °C Inner Cavity Design Pressure –0.1 to 0.3 MPa Inner Cavity Working Pressure –0.1 / 0.25 MPa Jacket Design Pressure 0.3 MPa Jacket Working Pressure 0.25 MPa Inner Cavity Water Pressure Test 0.39 MPa Jacket Water Pressure Test 0.52 MPa Temperature Uniformity ±1 °C Limiting Vacuum –94.3 kPa Leakage Rate ≤ 1.3 kPa / 10 min Temperature Difference 15 °C Power Consumption 4.2 kW Power Supply 380 V, 50 Hz Chamber Dimensions 2100 × 1000 × 1200 mm Housing Dimensions 2400 × 2000 × 2100 mm Net Weight 2700 kg -
