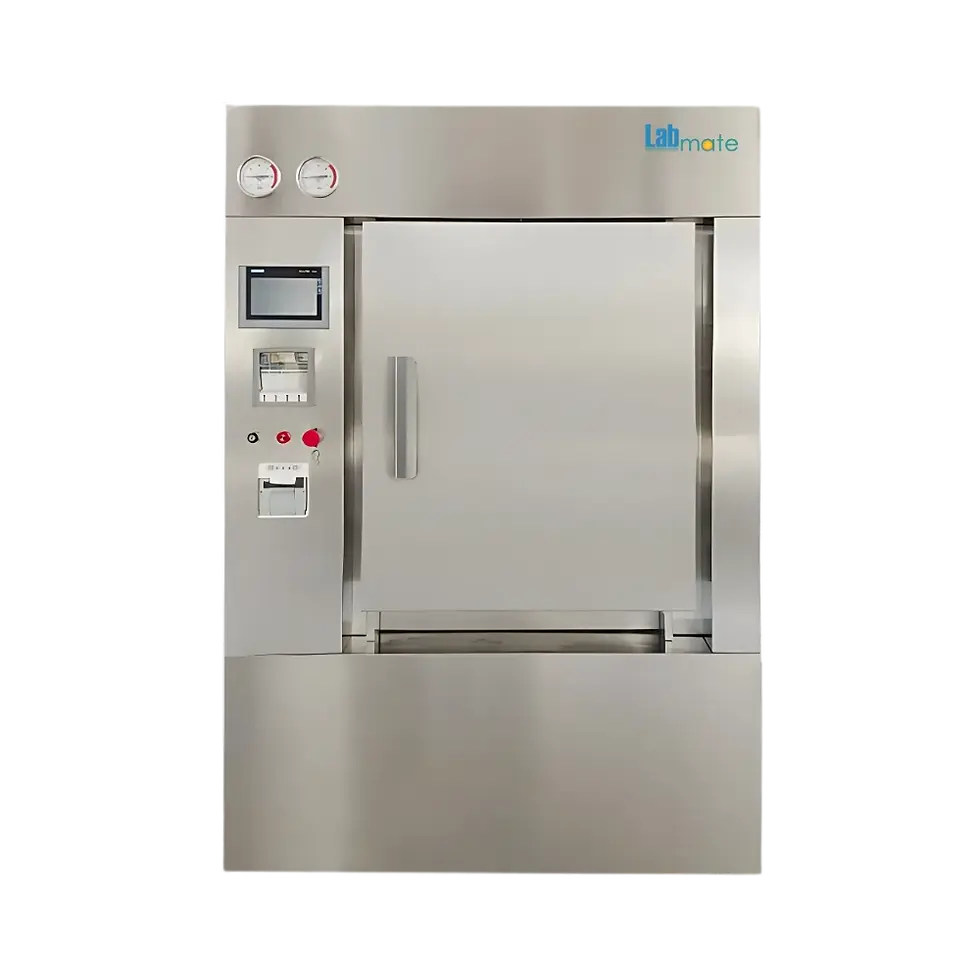

Labmate Horizontal Pulse Vacuum Sterilizer LMPVS‑A119
The Labmate Horizontal Pulse Vacuum Sterilizer LMPVS-A119 is a state-of-the-art sterilization solution designed for optimal efficiency and reliability. As an authorized distributor, winselluma ensures that you receive genuine, high-quality equipment that meets stringent industry standards. Ideal for medical, pharmaceutical, and research facilities, this sterilizer offers precise control and unparalleled performance. Trust winselluma to deliver exceptional value and support for all your sterilization needs.
Product Info
Labmate Horizontal Pulse Vacuum Sterilizer LMPVS‑A119
Overview:
The Labmate Horizontal Pulse Vacuum Sterilizer LMPVS‑A119 is a high-capacity steam sterilization system designed for laboratories, hospitals, pharmaceutical facilities, and industrial environments. Utilizing advanced pulse vacuum technology, it ensures complete air removal and deep steam penetration for uniform sterilization of dense or complex loads. The stainless-steel construction, intuitive touchscreen controls, and safety features provide reliable, high-throughput sterilization for instruments, media, and laboratory consumables.Key Features:
-
Large 1.5 m³ chamber for high-volume sterilization
-
Pulse vacuum steam technology for efficient air removal and deep steam penetration
-
Automated microcomputer control system with programmable sterilization cycles
-
Double-door structure with touchscreen interface for easy operation
-
V-shaped cavity base for efficient drainage and prevention of water accumulation
-
Multi-stage heating and multi-channel steam distribution for uniform temperature
-
Vacuum detection for reliable monitoring
-
Corrosion-resistant stainless-steel construction with advanced welding and polishing
Applications:
-
Sterilization of surgical instruments, medical devices, and laboratory tools
-
Decontamination of glassware, metal components, and reusable equipment
-
Preparation of sterile media and biological materials
-
Routine sterilization in clinical labs, research institutes, and biotech facilities
-
Pharmaceutical production sterilization workflows
-
High-throughput sterilization in healthcare and industrial environments
Technical Highlights:
Specification Details Chamber Volume 1.5 m³ Design Temperature 144 °C Sterilization Temperature Range 105 °C – 139 °C Inner Cavity Design Pressure –0.1 to 0.3 MPa Inner Cavity Working Pressure –0.1 / 0.25 MPa Jacket Design Pressure 0.3 MPa Jacket Working Pressure 0.25 MPa Inner Cavity Water Pressure Test 0.39 MPa Jacket Water Pressure Test 0.52 MPa Temperature Uniformity ±1 °C Limiting Vacuum –94.3 kPa Leakage Rate ≤ 1.3 kPa / 10 min Temperature Difference 15 °C Power Consumption 3.2 kW Power Supply 380 V, 50 Hz Chamber Dimensions 1900 × 680 × 1180 mm Housing Dimensions 2180 × 1460 × 2040 mm Net Weight 1850 kg -
