Labmate Horizontal Pulse Vacuum Sterilizer LMPVS‑A117
The Horizontal Pulse Vacuum Sterilizer LMPVS-A117 offered by Winselluma is designed for optimal efficiency and high performance in various sterilization applications. Its advanced pulse vacuum technology ensures thorough penetration and reliable sterilization for a wide range of instruments. At Winselluma, we prioritize quality and innovation, providing state-of-the-art solutions that align with your rigorous standards. Our professional support team is always ready to assist, making sure your needs are met seamlessly. Trust Winselluma for unparalleled expertise and cutting-edge sterilization solutions.
Product Info

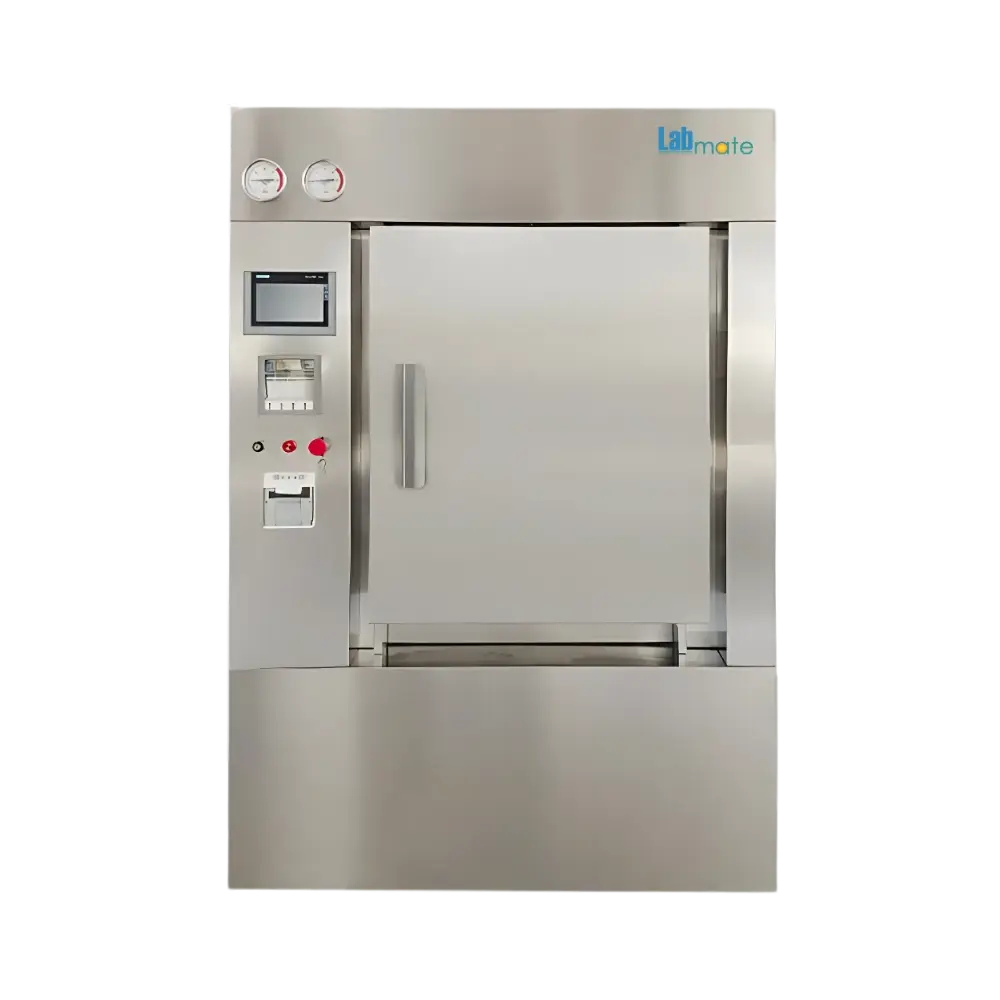

Labmate Horizontal Pulse Vacuum Sterilizer LMPVS‑A117
Overview:
The Labmate Horizontal Pulse Vacuum Sterilizer LMPVS‑A117 is a premium steam sterilization system designed for reliable, high-efficiency decontamination in laboratory and clinical environments. Featuring advanced pulse vacuum technology, it ensures thorough air removal and deep steam penetration. Built with durable stainless steel and intelligent microcomputer control, it is ideal for sterilizing instruments, glassware, media, and equipment in research, medical, pharmaceutical, and educational settings.Key Features:
-
Intelligent microcomputer control system with adjustable sterilization parameters
-
Double door structure with V‑shaped base for superior sealing and efficient drainage
-
Uniform temperature distribution via multi‑channel steam intake and multi‑stage heating
-
Durable stainless‑steel chamber with advanced welding and electrolytic polishing
-
Vacuum detection function and intuitive touch screen interface
-
Multiple sterilization modes for versatile operation
Applications:
-
Sterilization of glassware, surgical instruments, and medical equipment in clinical and research labs
-
Preparation of sterile media, dressings, and culture plates for biomedical and pharmaceutical use
-
Routine sterilization tasks in microbiology, pathology, and quality control laboratories
Technical Highlights:
Specification Detail Chamber Volume 1.0 m³ Design Temperature 144 °C Sterilization Temperature Range 105 °C – 139 °C Inner Cavity Design Pressure -0.1 to 0.3 MPa Inner Cavity Working Pressure -0.1 / 0.25 MPa Jacket Design Pressure 0.3 MPa Jacket Working Pressure 0.25 MPa Temperature Uniformity ±1 °C Limiting Vacuum -94.3 kPa Leakage Rate ≤1.3 kPa / 10 min Power Consumption 2.4 kW Power Supply 380 V, 50 Hz Chamber Dimensions (WxDxH) 1800×610×910 mm Housing Dimensions 2060×1280×1940 mm Weight 1600 kg -
