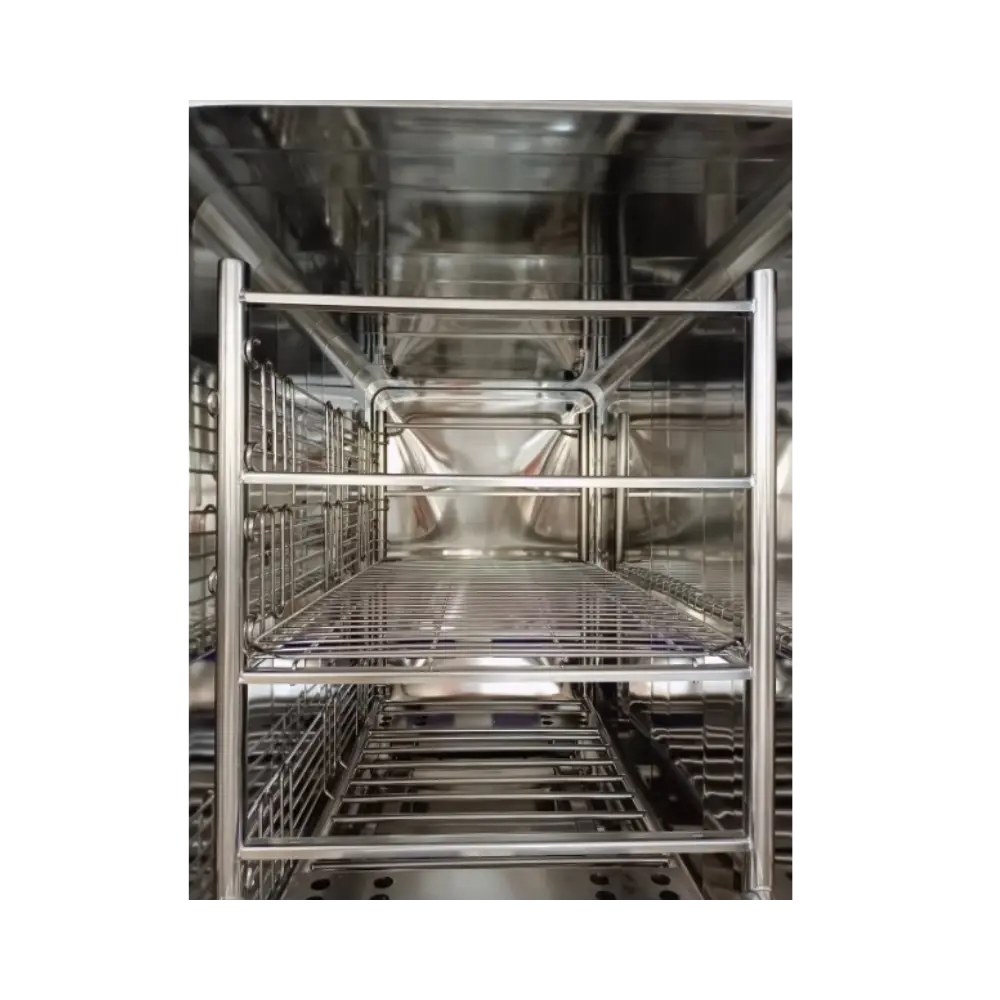

Labmate Horizontal Pulse Vacuum Sterilizer LMPVS‑A114
Experience unparalleled sterilization with the Labmate Horizontal Pulse Vacuum Sterilizer LMPVS‑A114, now available at Winselluma, your trusted partner and authorized distributor. Engineered for efficiency, this state-of-the-art sterilizer utilizes advanced vacuum pulse technology to ensure thorough and reliable sterilization for your laboratory needs. Winselluma prides itself on exceptional service, providing only the highest-quality products to keep your operations running smoothly. Optimize your laboratory’s performance and safety with our dependable solutions.
Product Info
Labmate Horizontal Pulse Vacuum Sterilizer LMPVS‑A114
Overview
The Labmate LMPVS‑A114 is a large‑capacity, industrial‑grade pulse‑vacuum sterilizer designed for rigorous sterilization demands in clinical, pharmaceutical, and research lab environments. With a spacious 0.8 m³ stainless‑steel chamber, precise control systems, and robust vacuum‑steam sterilization technology, this unit ensures deep, uniform sterilization — even for bulky, wrapped, or porous loads. Its combination of high performance, safety features, and ease of operation makes it an ideal choice for high‑throughput sterilization workflows.
Key Features
-
Vacuum‑pulse steam sterilization — thoroughly evacuates air and enables steam penetration deep into porous or wrapped materials.
-
Integrated multi‑channel steam intake with multi‑stage heating — ensures consistent steam distribution and uniform temperature throughout the chamber.
-
Automatic microcomputer control with touchscreen interface — programmable sterilization cycles for user‑friendly, repeatable operation.
-
Single‑door horizontal chamber with V‑shaped cavity base — optimized for efficient drainage, easier loading/unloading, and simplified maintenance.
-
Durable, polished stainless‑steel chamber with high‑quality welding and finishing — built for long-term heavy-duty use.
-
Safety features including vacuum detection and leak‑rate monitoring — ensures sterilization integrity and operational safety.
Applications
-
Sterilization of surgical instruments, medical and dental tools, and metal implements
-
Sterilization of laboratory glassware, pipettes, containers, and general labware
-
Sterilization of porous or wrapped items such as textiles, dressings, sterilization packs, and medical kits
-
Sterilization of culture media, reagents, liquids, and lab solutions in pharmaceutical, biotech, microbiology, and research labs
-
High‑volume sterilization in hospital sterilization departments, food‑processing labs, environmental testing labs, and veterinary clinics
Technical Highlights
Specification Value Chamber Volume 0.8 m³ Design Temperature 144 °C Sterilization Temperature Range 105 °C – 139 °C Inner Cavity Design Pressure –0.1 to 0.30 MPa Inner Cavity Working Pressure –0.1 / +0.25 MPa Jacket Working Pressure 0.25 MPa Limiting Vacuum –94.3 kPa Temperature Uniformity ±1 °C Chamber Dimensions 1480 × 610 × 910 mm Housing Dimensions 1740 × 1280 × 1940 mm Power Supply 380 V, 50 Hz Power Consumption 2.4 kW Unit Weight 1,400 kg -
