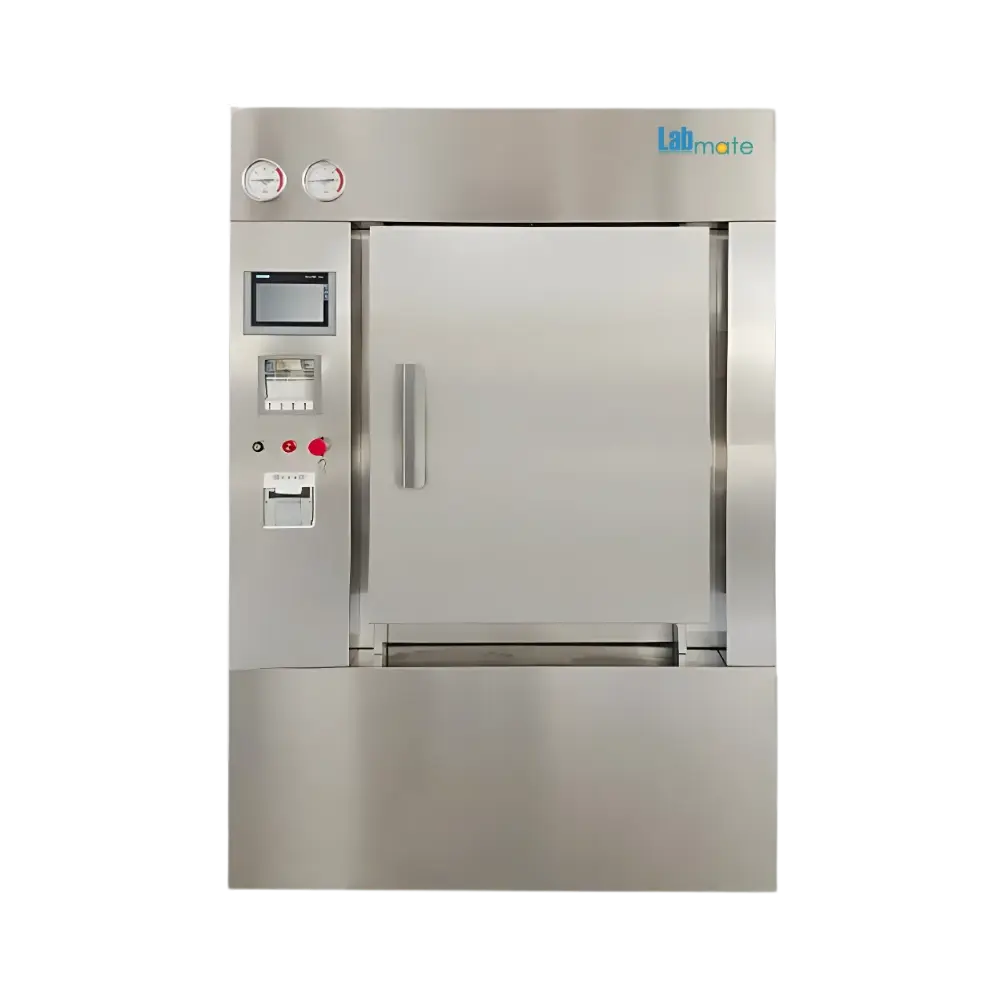

Labmate Horizontal Pulse Vacuum Sterilizer LMPVS‑A113
Experience unparalleled sterilization efficiency with the Labmate Horizontal Pulse Vacuum Sterilizer LMPVS-A113, now available from Winselluma. Designed for high-volume medical and laboratory use, this state-of-the-art sterilizer guarantees superior sterilization through its innovative pulse vacuum technology. At Winselluma, we pride ourselves on offering only the highest quality products as an authorized distributor, ensuring your facility runs smoothly and safely. Trust Winselluma's commitment to excellence to enhance your operational standards with the Labmate LMPVS-A113.
Product Info
Labmate Horizontal Pulse Vacuum Sterilizer LMPVS‑A113
Overview:
The Labmate Horizontal Pulse Vacuum Sterilizer LMPVS‑A113 is a high-capacity sterilization system designed for demanding applications in hospitals, laboratories, pharmaceutical production, and industrial hygiene facilities. Its 0.8 m³ stainless-steel chamber, advanced vacuum-pulse steam technology, and automated controls ensure deep, uniform steam penetration for consistent sterilization of bulky, porous, or wrapped loads. Built for reliability, safety, and high throughput, it is ideal for high-volume sterilization workflows.
Key Features:
-
Vacuum-pulse sterilization removes trapped air and ensures thorough steam penetration
-
Integrated steam generator with multi-stage heating and multi-channel steam intake
-
Automatic microcomputer control with colour touchscreen for programmable cycles
-
Single-door horizontal chamber with V-shaped cavity base for efficient drainage and cleaning
-
Safety systems including vacuum detection, leak-rate monitoring, and pressure control
-
Robust stainless-steel construction for long-term heavy-duty use
Applications:
-
Sterilization of surgical instruments, metal tools, and dental equipment
-
Sterilization of laboratory glassware, pipettes, containers, and lab vessels
-
Sterilization of porous or wrapped materials: textiles, dressings, sterilization packs
-
Sterilization of culture media, liquids, reagents in pharmaceutical, biotech, microbiology, and research labs
-
High-throughput sterilization in hospital CSSDs, environmental testing labs, veterinary clinics, and industrial hygiene facilities
Technical Highlights:
Specification Value Chamber Volume 0.8 m³ Design Temperature 144 °C Sterilization Temperature Range 105 °C – 139 °C Inner Cavity Design Pressure –0.1 to 0.3 MPa Inner Cavity Working Pressure –0.1 / +0.25 MPa Steam Jacket Working Pressure 0.25 MPa Limiting Vacuum –94.3 kPa Temperature Uniformity ±1 °C Chamber Dimensions 1480 × 610 × 910 mm Housing Dimensions 1740 × 1280 × 1940 mm Power Supply 380 V, 50 Hz Unit Weight 1,400 kg -
