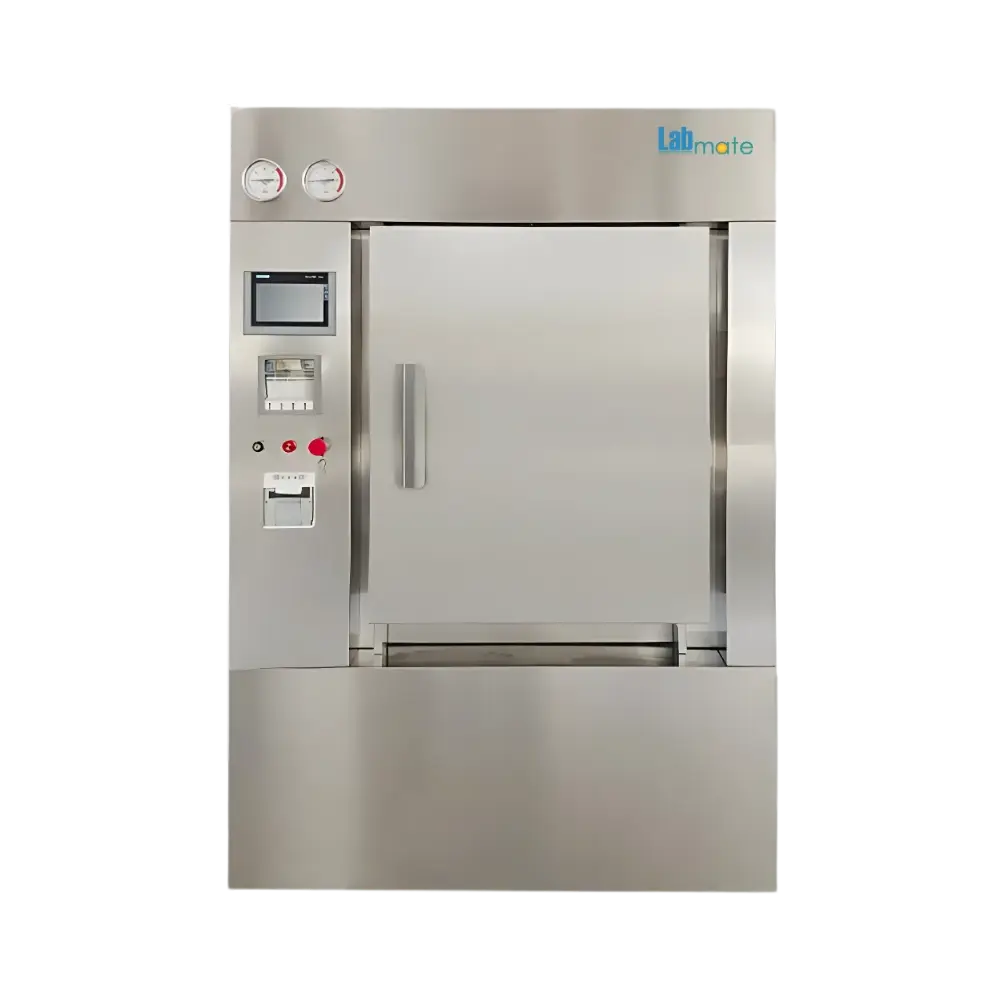

Labmate Horizontal Pulse Vacuum Sterilizer LMPVS-A112
Discover the Labmate Horizontal Pulse Vacuum Sterilizer LMPVS-A112, now available through winselluma, an authorized distributor dedicated to providing top-tier sterilization solutions. This advanced sterilizer ensures optimal sterilization with its efficient horizontal pulse vacuum technology, making it an indispensable asset for medical and laboratory environments. Trust winselluma’s commitment to quality, reliability, and excellent customer service to meet all your sterilization needs with the Labmate LMPVS-A112.
Product Info
Labmate Horizontal Pulse Vacuum Sterilizer LMPVS-A112
Overview:
The Labmate LMPVS-A112 is a high-capacity horizontal pulse vacuum sterilizer engineered for demanding, large-volume sterilization workloads. Its 0.8 m³ stainless-steel chamber, advanced vacuum-pulse steam system, and fully automated control interface make it ideal for hospitals, pharmaceutical processing, research laboratories, and industrial hygiene facilities requiring deep, uniform steam penetration and consistent sterilization results.
Key Features:
-
Vacuum-pulse sterilization for thorough air removal and deep steam penetration in porous, wrapped, and bulky items
-
Integrated steam generator with multi-channel steam intake for uniform heating
-
Colour touchscreen controller with fully automated, programmable cycle management
-
Single-door horizontal chamber with V-shaped cavity base for efficient drainage and easy cleaning
-
High-precision temperature and pressure control for consistent sterilization performance
-
Leak-rate and vacuum integrity monitoring ensures safe, reliable operation
-
Robust stainless-steel construction for long-term clinical and industrial use
Applications:
-
Sterilization of surgical tools, metal instruments, medical and dental kits
-
Sterilization of laboratory glassware, pipettes, culture vessels, and containers
-
Processing of wrapped and porous loads including textiles, dressing packs, and sterilization kits
-
Sterilization of liquids, culture media, and reagents in pharmaceutical and research labs
-
High-volume sterilization in hospital CSSDs, biotech facilities, food-processing labs, environmental testing labs, and veterinary centers
Technical Highlights:
Specification Value Chamber Volume 0.8 m³ Design Temperature 144 °C Sterilization Temperature Range 105 °C – 139 °C Inner Cavity Design Pressure –0.1 to 0.30 MPa Working Pressure –0.1 / +0.25 MPa Steam Jacket Working Pressure 0.25 MPa Limiting Vacuum –94.3 kPa Temperature Uniformity ±1 °C Chamber Dimensions 1480 × 610 × 910 mm Housing Dimensions 1740 × 1280 × 1940 mm Power Supply 380 V, 50 Hz Unit Weight 1400 kg -
