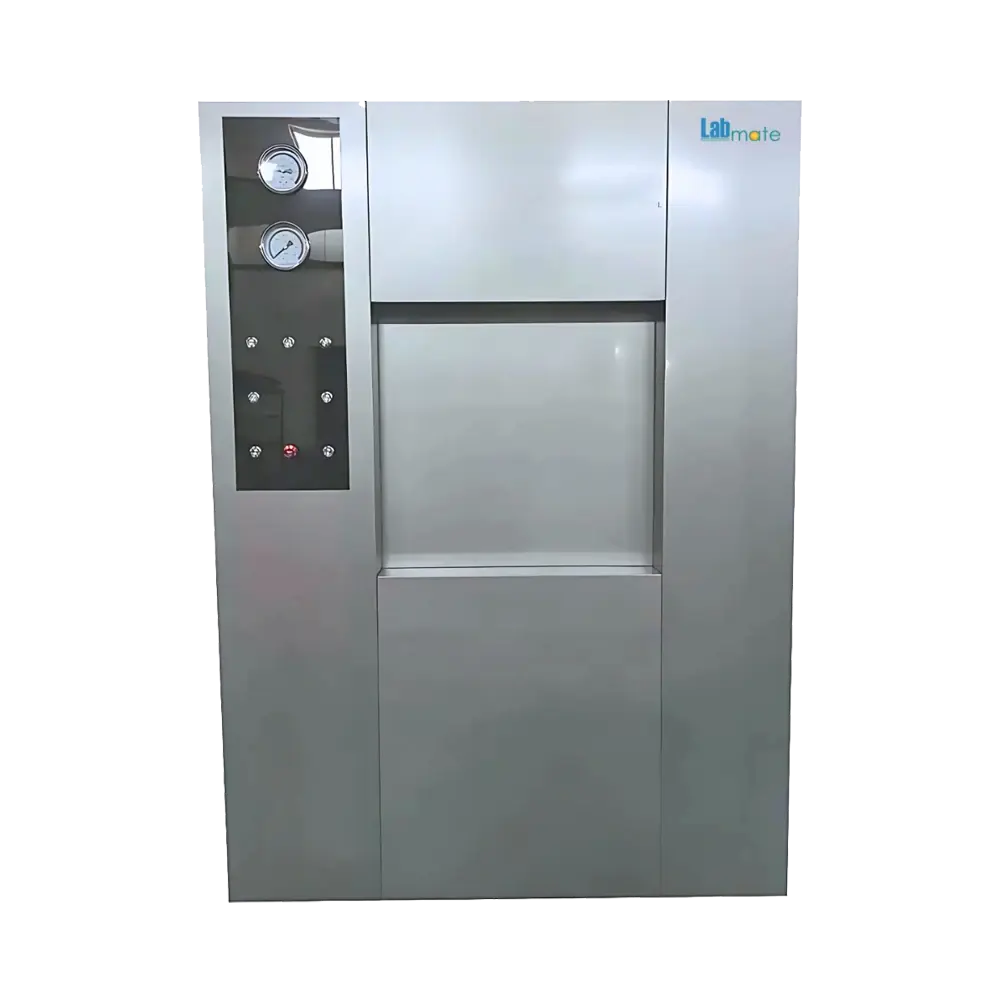

Labmate Horizontal Autoclave LMHA-A701
Discover unparalleled sterilization efficiency with the Labmate Horizontal Autoclave LMHA-A701 from winselluma. This high-capacity autoclave is perfect for laboratories that demand consistent, reliable performance. As an authorized distributor, winselluma ensures you receive top-quality equipment backed by exceptional service and support. Elevate your lab operations with this robust autoclave designed for superior safety and precision. Trust in winselluma's commitment to provide the best laboratory solutions available.
Product Info
Labmate Horizontal Autoclave LMHA-A701
Overview:
The Labmate Horizontal Autoclave LMHA-A701 is a high-capacity, fully automatic steam sterilizer engineered for large-scale sterilization in hospitals, pharmaceutical production, research institutes, and centralized sterilization units. With its robust 800 L chamber, advanced vacuum-pulse technology, and automated vertical-sliding door, it ensures uniform steam penetration, reliable sterilization performance, and strict safety compliance — ideal for high-throughput facilities requiring maximum efficiency and operational durability.Key Features:
-
Fully automatic PLC-controlled system with a color touch-screen interface for easy programming and cycle monitoring.
-
Large 800 L 316L stainless-steel chamber designed for long service life and high-volume workflows.
-
Vacuum-pulse sterilization system for deep steam penetration into dense or packaged loads.
-
Automatic vertical-sliding door with double-door channel-type safety interlock for secure operation.
-
Integrated water-ring vacuum pump, automatic drainage, and built-in data logging with micro-printer.
-
Sterile exhaust filtration (≤ 0.22 µm) to support safe handling of sensitive or biohazardous materials.
-
Comprehensive protection systems including pressure control, temperature monitoring, and door-lock safety mechanisms.
Applications:
-
Bulk sterilization of surgical instruments, trays, medical devices, and large labware.
-
Sterilization of media bottles, reagent containers, pharmaceutical packaging, and production materials.
-
Decontamination of contaminated waste, laboratory disposables, and biohazardous materials.
-
High-volume sterilization in pharmaceutical manufacturing, biotechnology facilities, hospital CSSDs, and research centers.
Technical Highlights:
Specification Value Chamber Capacity 800 L Door Type Automatic vertical sliding door with double-door safety interlock Design Pressure –0.1 to 0.30 MPa Working Pressure 0.25 MPa Maximum Operating Temperature 138 °C Steam Consumption per Cycle 45 kg Vacuum System Vacuum-pulse with ultimate vacuum of –97 kPa Vacuum Leakage Rate ≤ 0.13 kPa/min Chamber Dimensions Ø 700 mm × 650 mm depth Power Supply 380 V, 50 Hz (2 kW control power) External Dimensions 2050 × 1350 × 2100 mm Net Weight 1350 kg -
