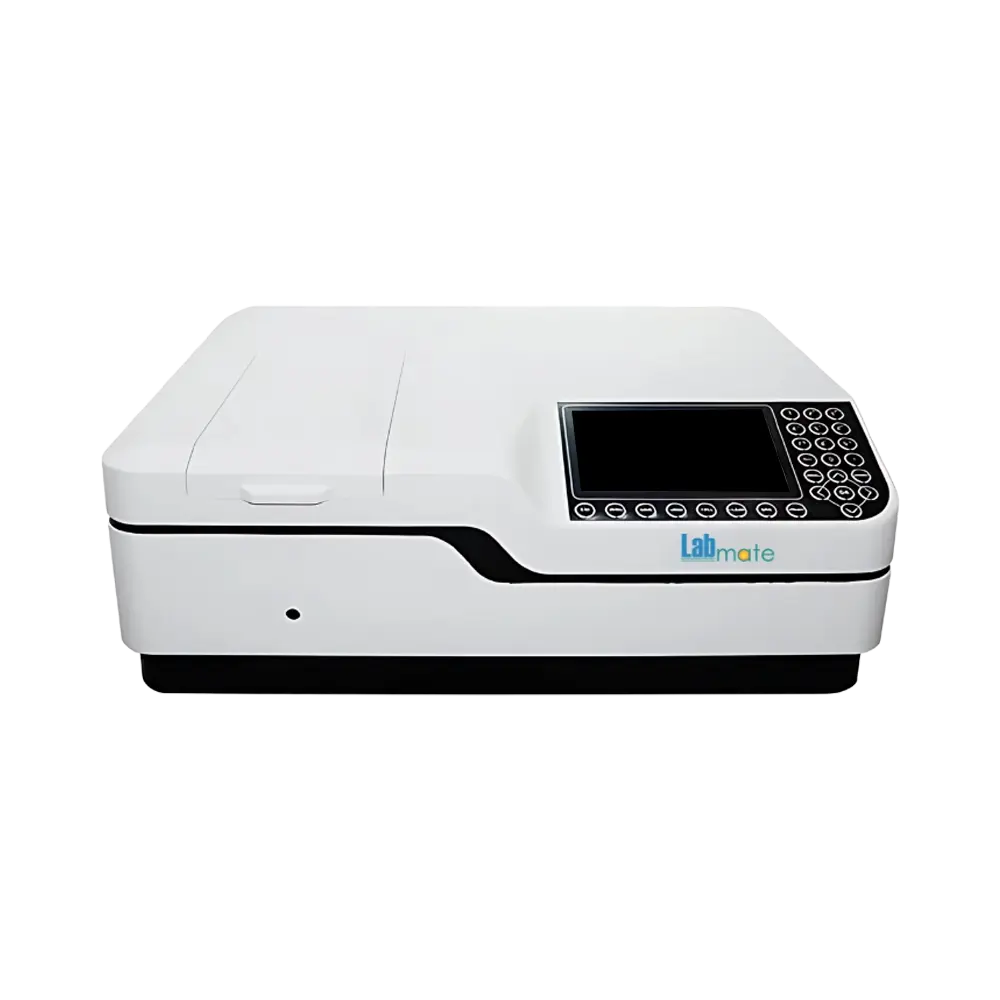

Labmate Double Beam UV/Visible Spectrophotometer LMUD-B106
Labmate Double Beam UV/Visible Spectrophotometer LMUD-B106 delivers precise UV/Visible measurements with a 2 nm spectral bandwidth across a wavelength range of 190–1100 nm. Its automatic wavelength setting and low-noise design ensure stable and accurate readings. The instrument features a high-quality xenon lamp, a 10.1-inch LCD touchscreen, and integrated PC scanning software for seamless data acquisition and advanced analysis. USB and RS232 connectivity enhance usability in laboratory and research environments.
Product Info
Key Features
-
Wavelength range: 190–1100 nm
-
Spectral bandwidth: 2 nm
-
Wavelength accuracy: ±0.3 nm
-
Wavelength repeatability: ≤0.1 nm
-
Photometric range: 0–200%T, –3 to 3A, 0–9999C/F
-
Photometric accuracy: 0.2%T (0–100%T), ±0.002–0.004A
-
Photometric repeatability: ≤0.15%T, 0.001–0.002A
-
Stray light: ≤0.03% (220/360 nm)
-
Stability: ±0.0005A/h at 500 nm
-
Noise: 0.0005A at 500 nm
-
Baseline flatness: ±0.001A
-
Detector: Silicon photodiode
-
Light source: Xenon lamp
-
Display: 10.1-inch LCD touchscreen
-
Power supply: AC 110/220 V, 50/60 Hz
-
Data output: USB / RS232
Applications
-
DNA/RNA quantification
-
Drug analysis and pharmaceutical testing
-
Biotechnology research
-
Quality control and chemical testing
-
Material analysis
Optional Accessories
-
Automatic 8-cell holder
-
Peltier/sipper system
-
Reflection accessories
Labmate LMUD-B106 combines high sensitivity, low noise, and advanced software integration for reliable and efficient UV/Visible spectrophotometric analysis in laboratory, clinical, and industrial research.
-
