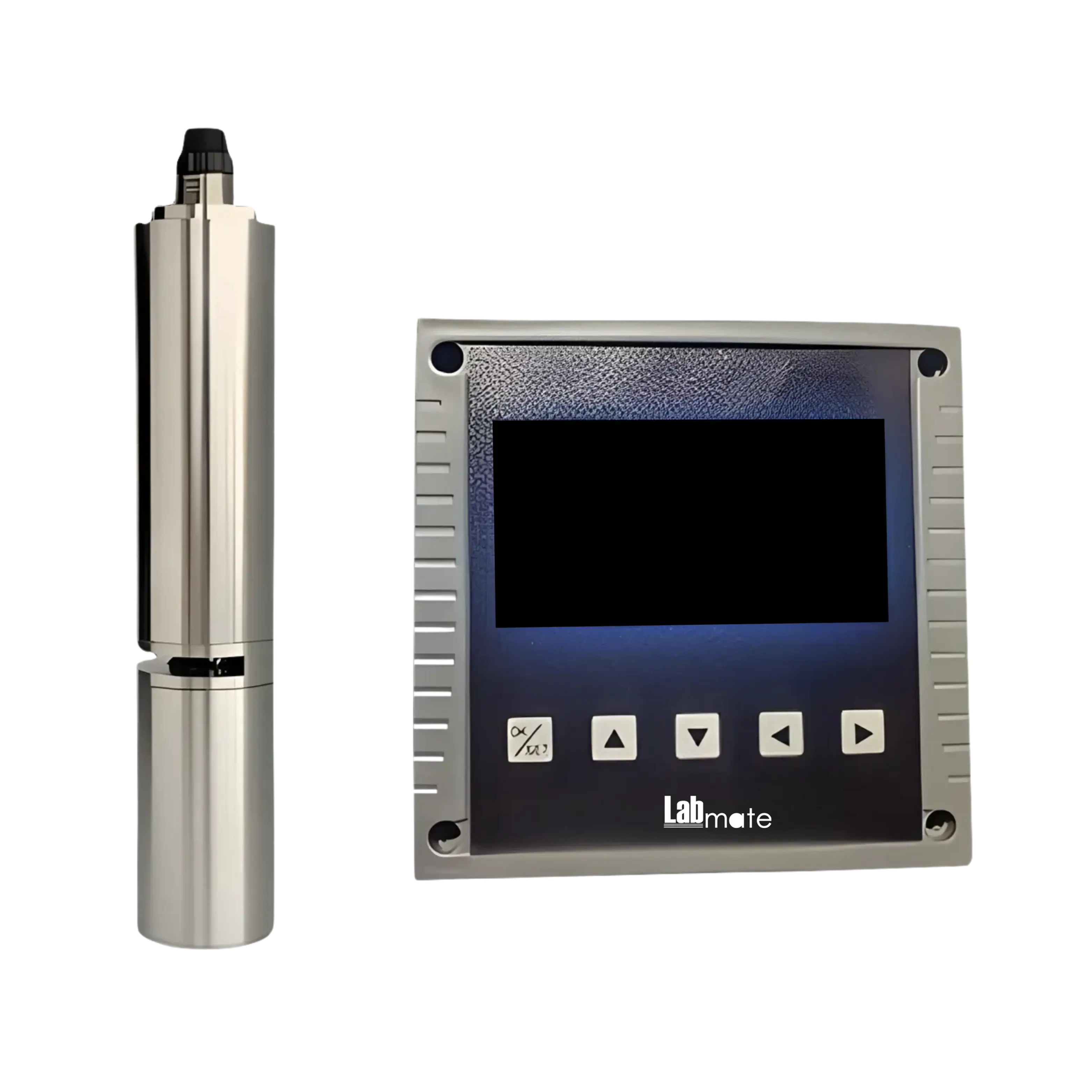

Labmate COD Analyzer LMCDA-A101
Labmate COD Analyzer LMCDA-A101 is a high-precision water quality analyzer designed to measure chemical oxygen demand (COD) across a wide range of 0–10,000 mg/L. It operates using UV254 measurement principle with sensors functional at 254 nm and 580 nm, enabling accurate detection of organic pollutants. Built with robust IP65-rated ABS housing and corrosion-resistant SS316/Titanium components, the analyzer is suitable for demanding environments. The integrated LCD interface allows real-time monitoring, while RS485/Modbus output enables easy data integration. Dual relay alarms ensure safety and process control.
Product Info
Key Features
-
Wide measurement range: 0–10,000 mg/L
-
UV254 principle with dual wavelength sensors (254 nm and 580 nm)
-
Auto compensation for turbidity interference
-
Quick response time for real-time monitoring
-
Simultaneous BOD and TSS monitoring capability
-
IP65 protection with ABS housing
-
RS-485/Modbus output
-
Dual relay high/low alarms
Applications
Wastewater treatment plants, environmental monitoring, municipal water treatment, aquaculture, and food & beverage industry.Technical Highlights
Parameter Specification Measurement Range 0–10,000 mg/L Principle UV254 Operating Temperature 0–55 °C (avoid direct sunlight) Storage Temperature -40–85 °C Humidity ≤ 80% Analyzer Calibration 2-point Sensor Calibration 3-point Resolution 0.01 mg/L Accuracy 3–5% FS Output Signal RS485/Modbus Display 95.5 × 48.5 mm LCD Protection Level IP65 Material SS316 / Titanium Alarms 2 relay high/low Power Supply 12 VDC ±5% Sensor Dimension (L×W) 234 × 46 mm Analyzer Dimension (L×W×H) 144 × 144 × 115 mm Weight 0.65 kg -
