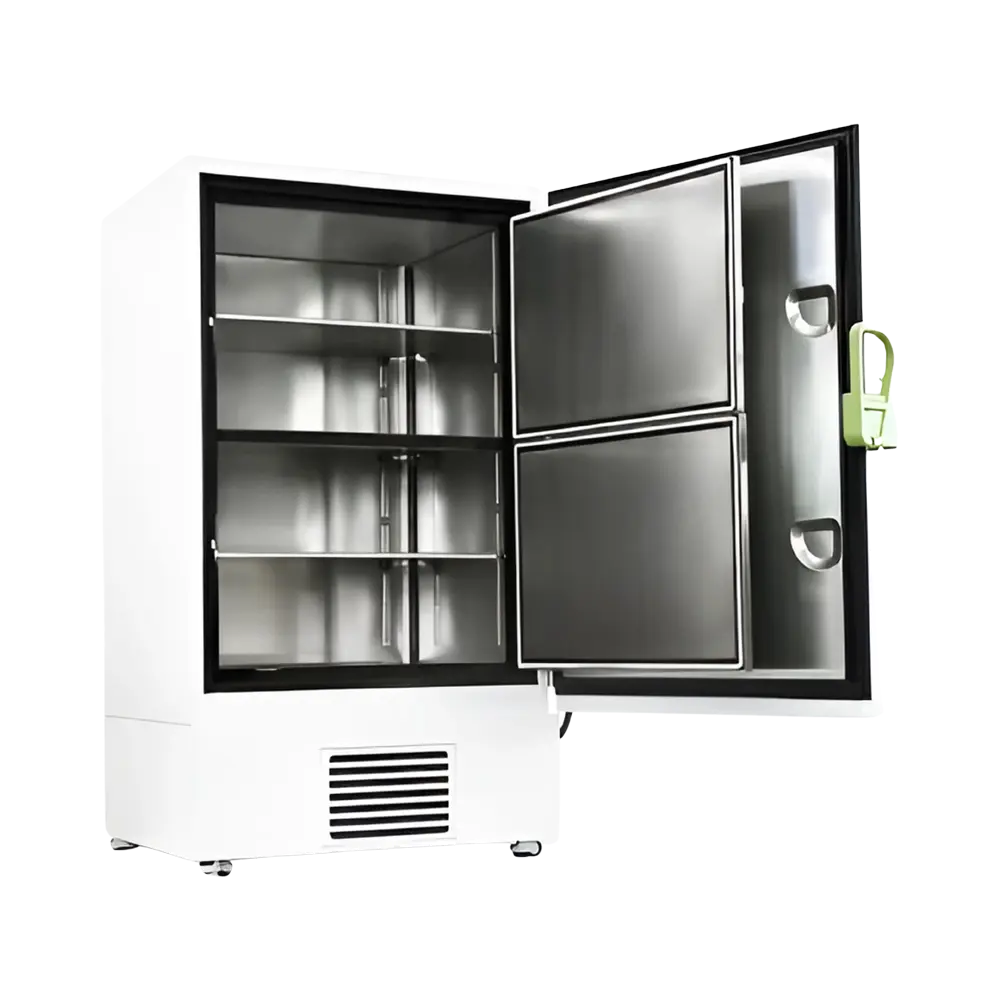

Labmate -86°C Ultra Low Temperature Freezer LMULT-C103

Labmate -86°C Ultra Low Temperature Freezer LMULT-C103

The Labmate -86°C Ultra Low Temperature Freezer LMULT-C103 is an industrial-scale preservation system providing a massive 728L interior chamber to meet bulk cryo-storage requirements. It utilizes a high-efficiency cascade refrigeration system powered by eco-friendly hydrocarbon refrigerants (R290 and R170), ensuring rapid pull-down and stable ultra-low temperatures down to -86°C. Constructed with a professional-grade stainless steel interior and reinforced with a PURF+VIP insulation matrix, the LMULT-C103 is designed for maximum thermal retention and long-term operational integrity in high-throughput research and medical facilities.

  • Product Info

    Technical Specifications

    Parameter Details
    Capacity 728 L / 25.7 Cu.Ft
    Temperature Range -40°C to -86°C
    Ambient Temperature 10°C to 32°C
    Cooling Technology Cascade Cooling System
    Refrigerants R290, R170 (Eco-friendly)
    Internal Material Stainless steel
    External Material Coated steel
    Insulation PURF + VIP (Vacuum Insulation Panels)
    Compartments 4
    Inner Doors 2
    Storage Capacity 504 Boxes (2-inch) / 50,400 Sample vials (2ml)
    Display 7-inch Color Touch Screen
    Power Supply 220V / 50Hz
    Interior Dimension (W×D×H) 963 × 571 × 1350 mm
    Exterior Dimension (W×D×H) 1248 × 975 × 1994.5 mm
    Net Weight 380 kg
    Gross Weight 400 kg

    Key Features

    • High-Volume Bulk Storage: A massive 728L capacity allows for the organized storage of up to 50,400 individual 2ml vials, ideal for centralized biorepositories.

    • Eco-Friendly Cascade Cooling: Utilizes a dual-stage hydrocarbon refrigeration cycle that provides superior cooling power while maintaining a low environmental impact.

    • Advanced Thermal Barrier: Combines high-density, CFC-free PU foam with Vacuum Insulation Panels (VIP) to minimize heat exchange and significantly reduce energy consumption.

    • Intelligent User Interface: The 7-inch color touch screen simplifies temperature monitoring, parameter adjustments, and real-time data tracking.

    • Automated Access Management: Equipped with an automatic vacuum release port, enabling users to reopen the door immediately after closing by equalizing internal and external pressure.

    • Optimized Organization: Features four internal compartments and two tightly sealed inner doors to minimize cold air displacement during sample retrieval.

    • Maintenance Simplified: Includes a quick-release condenser cover, allowing for rapid cleaning and ensuring the high-performance compressors operate at peak efficiency.

    Applications

    • Research Institutes: Long-term archival of massive genomic libraries, enzymes, and sensitive cell cultures.

    • Hospitals & Blood Banks: Secure, high-volume storage for vaccines, plasma, and specialized therapeutic biologicals.

    • Pharmaceutical Sectors: Reliable maintenance of the ultra-cold chain for bulk pharmaceutical ingredients and finished products.

    • Biobanking: Efficient, high-density preservation of diverse clinical and biological specimens.
