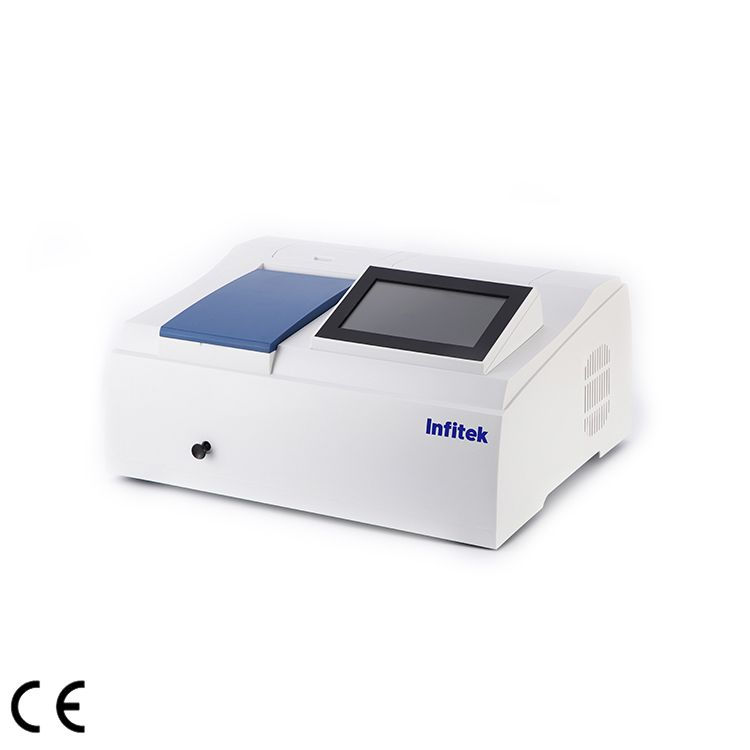

Infitek UV Visible Spectrophotometer, SP-IUV4S
The Infitek UV Visible Spectrophotometer SP-IUV4S, available through winselluma, features a broad wavelength range of 190-1100nm with automatic wavelength settings for efficient analysis. It offers precise automatic T/A changeover and automatic zero and full scale adjustment to ensure accurate results. The instrument includes a direct concentration read-out with concentration factor setting function for streamlined measurements, and an optional internal printer enhances reporting convenience. As an authorized distributor, winselluma provides reliable access to this advanced spectrophotometer, supporting your laboratory needs with quality and service.
Product Info
Description
Novel series spectrophotometer, being combined with an ARM processed core, has test speeds and functions possessed by high-end instruments. The instrument can meet the requirement of quantitative analysis for most samples conducted within the visible and ultraviolet-visible spectral range in conventional laboratories and is suitable for use in medicine and health, clinical examination, biochemical, petrochemical, environmental protection, quality control departments, colleges and universities and others.
Features
7-inch multi color touch-screen and patented technology to achieve simple and effective human-computer
interaction with a clear display of test data.
SP-IUV4S comes standard with a built-in thermal printer, which can print out test results and facilitate the formation and retention of data reports.
A USB communication port and UVWIN8 professional data processing software (optional) to achieve data processing and mapping functions and storage of massive amounts of data files, and to facilitate the secondary development by customers.
Automatic wavelength setting, fast and accurate.Functions such as wavelength scanning (S model only), kinetic time scanning, automatic wavelength, linear regression, direct read-out of concentration, peak detection, regular printing and etc.
Advanced power shut-down protection measures to memorize detected data, regression equation and instrument correction parameters to achieve fast initialization.
Tungsten lamp and deuterium lamp with lifetime protection.
Model SP-IUV4S Photometry Single beam Monochromator Type Czerny-turner Focal Length 160mm Grating 1200 lines/mm Detector Silicon photocell Spectrum Bandwidth 2nm Wavelength Setting 7-inch color touch-screen Wavelength Range 190-1100nm Wavelength Accuracy ±1nm Wavelength Repeatability ≤0.5nm Photometric Range 0.0-200.0%T -0.301-4.000A
0.000-9999C
Photometric Accuracy ±0.3%T ±0.002Abs (0-0.5A)
±0.004 Abs (0.5-1A)
Photometric Repeatability ≤0.15%T 0.001 Abs (0-0.5A)
0.002 Abs (0.5-1A)
Scanning Speed Fast-Medium-Slow Baseline ≤±0.003A (200-1090nm) Stray Light ≤0.1%T( at 220nm NaI, 360nm NaNO2 ) Noise 100%（T）Noise≤0.5%(T) ，0%（T）Noise≤0.2%(T) Drifting ±0.002 Abs/30min(at 250nm and 500nm after 2h warm up) Electricity AC220V±22V 50Hz±1Hz, 180W Dimension(L*W*H) 475*365*200mm G.W.(kg) 17.2 Package Dimension (W*D*H)(mm) 640*550*420 Standard Accessories
Model SP-IUV4S User Manual 1pc. Glass Cuvette 1cm 4pcs. Quartz Cuvette 1cm 2pcs. Power Cable 1pc. Fuse 2pcs. Optional Accessories
UV WIN8 Spectrum data processing software
Cuvette holder 50mm
Cuvette holder 100mm
