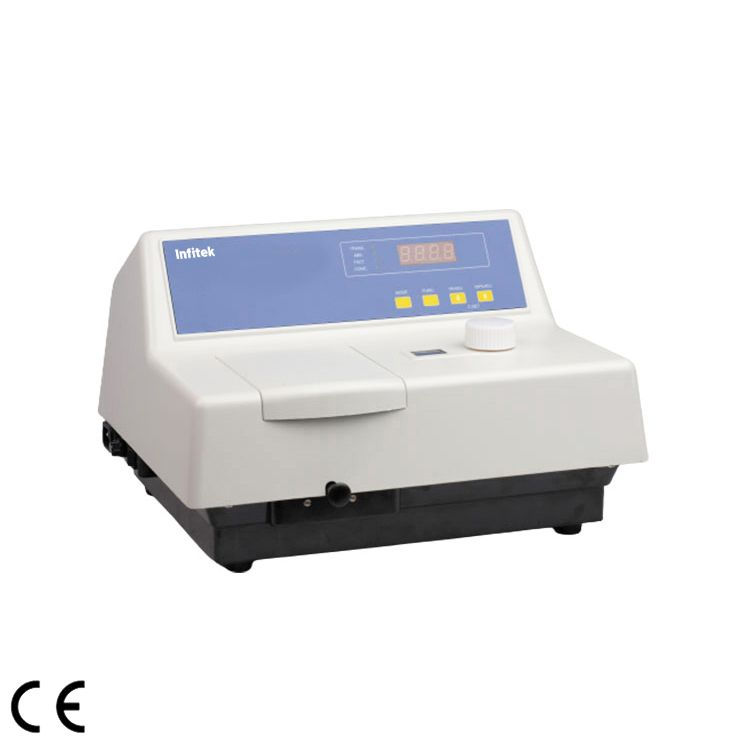

Infitek Single Beam UV-Vis Spectrophotometer SP-LUV752P
The Infitek Single Beam UV-Vis Spectrophotometer SP-LUV752P, available through winselluma as an authorized distributor, is designed for precise measurement of absorbance in substance identification, impurity inspection, and quantitative determination. It offers a broad wavelength range of 190-1100nm with a wavelength accuracy of ±2nm and features low stray light for reliable results. Its lightweight, compact design and convenient light source replacement enhance ease of use in any laboratory setting. Trusted by professionals, this spectrophotometer combines accuracy and efficiency to meet diverse analytical needs.
Product Info
DESCRIPTION
The UV-Vis Spectrophotometer SP-LUV752P could set factor and directly read the transmittance, absorbance and concentration from 190nm to 1100nm.It also could set wavelength manually. 2nm bandwidth could meet the needs of most quantitative measurement requirements. They could make the qualitative and quantitative test in material research, pharmaceutical analysis, Biochemical and clinical examination, analysis of water quality control, food inspection and the other fields.
Main Features of UV-Vis Spectrophotometer:
1. Low Stray Light: Precision optical design ensure the stray light lower than 0.05% to meet clients’ need when they want to test high absorbance sample.
2. High Wavelength Accuracy: Built-in spectral characteristics work for the auto wavelength detection and calibration to ensure the accuracy and long-term stability.
3. Wide Wavelength Range: The wavelength range covers from 190nm to 1100nm. The widest wavelength range of the similar products is offered to meet the needs of most spectrophotometric test.
4. Convenient light source replacement: Deuterium lamp adopt universal flange fixing, deuterium lamp replacement could be completed by operation of two screws, no need to adjust light path make maintenance easier and reliable.
5. Light Weight and Small SizeSPECIFICATIONS
Specification SP-LUV752P Light Source Deuterium lamp,tungsten lamp Optical System 1200 line Diffraction Grating C-T monochromator Wavelength Range 190-1100nm Bandwidth 2nm Stray Light ≤0.2%T Wavelength Accuracy ±2nm Wavelength Repeatability ≤0.5nm Photometric Accuracy ±0.5%T Photometric Repeatability ±0.2%T Salability 0%≤0.2%T 100%≤0.5%T Transmittance Range 0.0-199.9%T Absorbance Range -0.3-2.999A Instrument Dimension(W*D*H)(mm) 370*320*240 Package Dimension (W*D*H) (mm） 440*470*330 Weight G.W.: 9kg N.W.: 7.5kg Display 4 digits LED Port RS232 Serial Port
