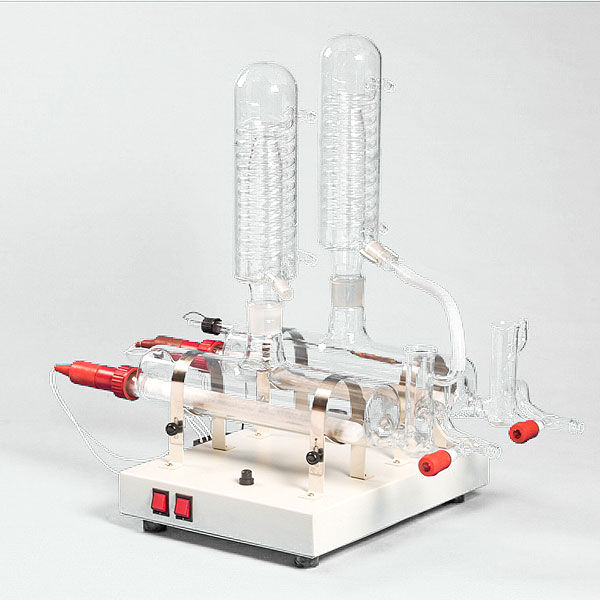

iGene Labserve Borosilicate Glass Double Distillation Unit
The iGene Labserve Borosilicate Glass Double Distillation Unit (IG-BDDU3) is a compact, high-purity water distillation system. Equipped with demountable borosilicate glass boilers, a double-walled condenser, and a microprocessor-based safety control unit with LCD display and alarm, it ensures safe, efficient, and user-friendly operation. Ideal for laboratories, research, and pharmaceutical applications requiring pyrogen-free distilled water.
Product Info
Key Features
-
Borosilicate Glass Construction – Durable boilers and condenser with removable silica-sheathed heater and screw-threaded connectors for easy cleaning.
-
Efficient Condensation System – Dual-stage condensation delivers distillate at 25°C to 45°C.
-
Energy-Saving Recirculation Design – Cooling water recirculates back to the boiling chamber, reducing water usage and energy consumption.
-
Automatic Safety Shutdown – Built-in water level sensor prevents dry heating.
-
Powder-Coated Stand – Rust-free, durable, and aesthetic frame.
-
Convenient Cleaning Features – Includes drain nozzle or Teflon stopcock for hassle-free maintenance.
-
Electrical Requirements – Operates on 220/240 V, 50/60 Hz, single-phase.
Technical Specifications
Parameter IG-BDDU3 Specific Conductivity 0.8–1 µS/cm Biological Activity Pyrogen Free Organic Matter Nil Total Solids 0.1 mg/L Silica <0.01 mg/L Output Capacity (Approx.) 2.5–2.8 L/hr Power Rating (Total) 5 kW Cooling Water Consumption (Approx.) 100–140 L/hr This unit combines borosilicate glass durability, energy-efficient design, and intelligent safety monitoring, providing laboratories with reliable, high-purity distilled water.
-
